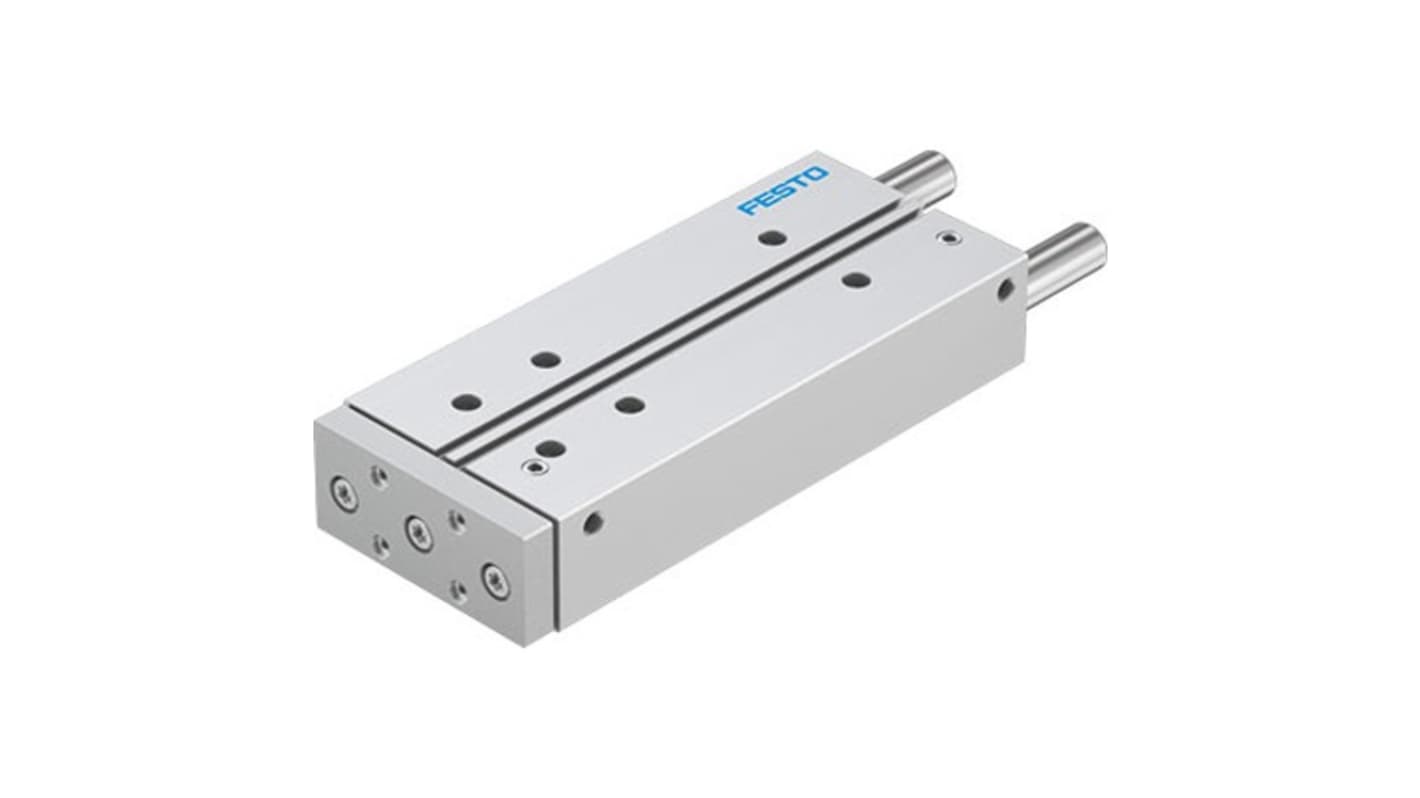

Festo Pneumatic Guided Cylinder - DFM-32-200-P-A-GF-F1A 32 mm Bore, DFM Series, 200 mm Double Acting Acting
- RS Stock No.:
- 344-446
- Mfr. Part No.:
- DFM-32-200-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£561.07
(exc. VAT)
£673.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £561.07 |
*price indicative
- RS Stock No.:
- 344-446
- Mfr. Part No.:
- DFM-32-200-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -20°C | |
| Guide Type | Plain Bearing | |
| Piston Rod Thread Standard | BSPP | |
| Piston Rod Thread Size | 1/8 in G | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 4781g | |
| Stroke Length | 200mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Temperature -20°C | ||
Guide Type Plain Bearing | ||
Piston Rod Thread Standard BSPP | ||
Piston Rod Thread Size 1/8 in G | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 4781g | ||
Stroke Length 200mm | ||
- COO (Country of Origin):
- CN
The Festo is a cutting-edge double-acting drive unit designed specifically for precision applications requiring reliable performance. Built with robust construction and engineered for versatility, this product features a plain-bearing guide, elastic cushioning at both ends, and an optional mounting position for seamless integration into various systems. The advanced position detection via proximity switch ensures accurate operation while its impressive range of operating pressures allows it to adapt effortlessly to diverse industrial environments. Ideal for use in cleanroom settings, this drive unit maintains high standards of performance under a wide ambient temperature range, making it a superb choice for demanding tasks.
Designed with elastic cushioning rings for enhanced durability and energy absorption
Supports optional mounting positions for flexible installation options
Constructed from lightweight wrought aluminum alloy for easy handling
Certified to cleanroom class 7 according to ISO standards for environments requiring stringent cleanliness
Features multiple torque limits tailored to varying stroke lengths enhancing operational efficiency
Equipped with corrosion resistance class CRC 0 promising longevity in challenging conditions
