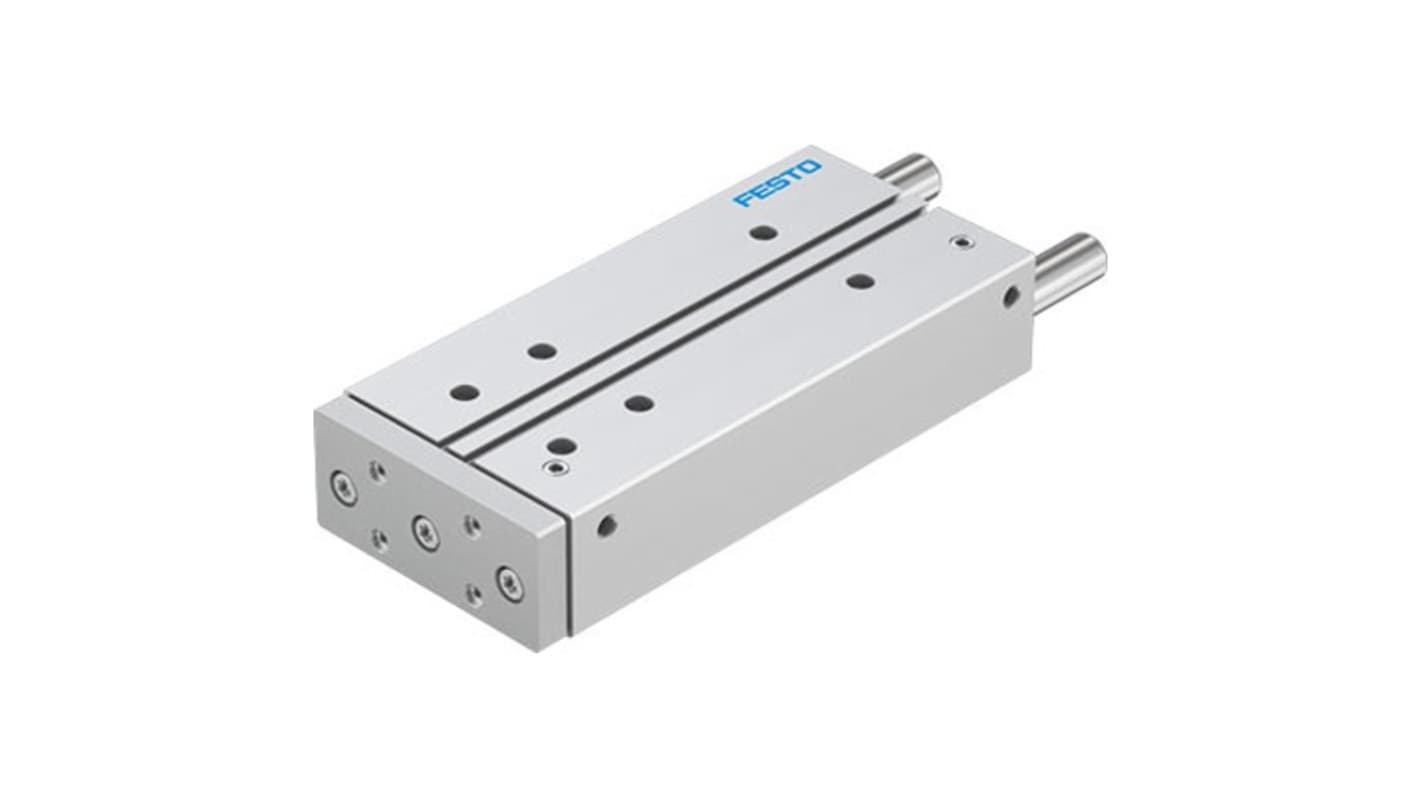

Festo Pneumatic Guided Cylinder - DFM-40-200-P-A-GF-F1A 40 mm Bore, DFM Series, 200 mm Double Acting Acting
- RS Stock No.:
- 344-236
- Mfr. Part No.:
- DFM-40-200-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£612.83
(exc. VAT)
£735.40
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £612.83 |
*price indicative
- RS Stock No.:
- 344-236
- Mfr. Part No.:
- DFM-40-200-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 40mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Body Material | Wrought Aluminium Alloy | |
| Cushioning Type | Elastic | |
| Piston Rod Thread Standard | BSPP | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | 1/8 in G | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 5437g | |
| Stroke Length | 200mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 40mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Body Material Wrought Aluminium Alloy | ||
Cushioning Type Elastic | ||
Piston Rod Thread Standard BSPP | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size 1/8 in G | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 5437g | ||
Stroke Length 200mm | ||
The Festo advanced guided drive that combines exceptional performance with reliability. Designed for efficiency, this product features a robust double-acting mechanism and elastic cushioning at both ends, ensuring smooth operation and minimal wear. Its adaptability allows for a variety of mounting positions while the plain-bearing guide ensures precision in motion. To meet industry standards, the drive operates within a wide pressure range and accommodates ambient temperatures from -20 °C to 80 °C. Whether you're developing an intricate automation system or enhancing your production processes, this guided drive is engineered for optimal performance in clean environments.
Double-acting mode ensures efficient power use during operation
Variants with metals such as copper zinc and nickel are excluded adhering to stringent safety standards
The elastic cushioning system at both ends provides enhanced shock absorption
Position detection can be achieved via proximity switches for precise control
Designed for lubricated and unlubricated operation maximizing adaptability
Compact design allows flexibility in various industrial settings
Compliant with RoHS regulations which ensuring environmentally-safe materials
