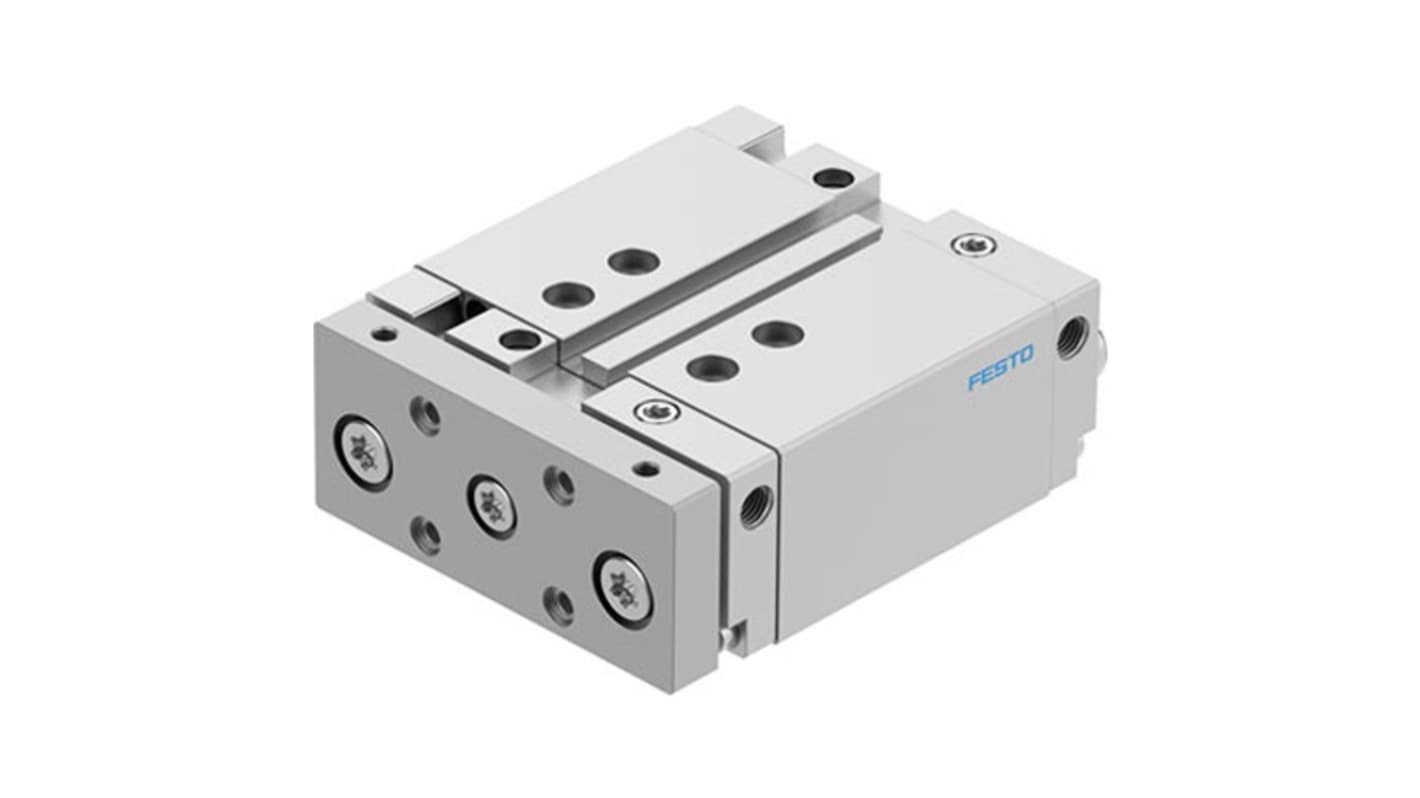

Festo Pneumatic Guided Cylinder - DFM-32-40-B-PPV-A-KF 32 mm Bore, DFM Series, 40 mm Double Acting Acting
- RS Stock No.:
- 343-955
- Mfr. Part No.:
- DFM-32-40-B-PPV-A-KF
- Brand:
- Festo
Subtotal (1 unit)*
£524.35
(exc. VAT)
£629.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £524.35 |
*price indicative
- RS Stock No.:
- 343-955
- Mfr. Part No.:
- DFM-32-40-B-PPV-A-KF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 32mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Wrought Aluminium Alloy | |
| Piston Rod Thread Size | 1/8 in G | |
| Minimum Operating Temperature | -5°C | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Standard | BSPP | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS, Class 7 According to ISO 14644-1, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | |
| Stroke Length | 40mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 32mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Wrought Aluminium Alloy | ||
Piston Rod Thread Size 1/8 in G | ||
Minimum Operating Temperature -5°C | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Standard BSPP | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS, Class 7 According to ISO 14644-1, VDMA24364-B1/B2-L, ISO 8573-1:2010 (7:4:4) | ||
Stroke Length 40mm | ||
- COO (Country of Origin):
- DE
The Festo Guided Drive offers precision and reliability for a variety of industrial applications. Engineered for optimal performance, the compact unit features a pneumatic cushioning system that is adjustable at both ends, ensuring smooth operation and reduced wear over time. The yoke design facilitates effortless integration into your existing setups, while the robust construction guarantees longevity even in demanding environments. Its lightweight yet durable materials enhance efficiency, making it an ideal choice for both light and heavy duty automation tasks. Additionally, this drive unit operates effectively within a broad temperature range and supports lubricated operations, providing versatility in diverse applications.
Engineered with a recirculating ball bearing guide for enhanced stability
Adjustable pneumatic cushioning optimises energy absorption
Lightweight aluminium alloy materials reduce overall device weight
Double acting mode improves cycle efficiency
Compatible with a variety of proximity switches for precise position detection
