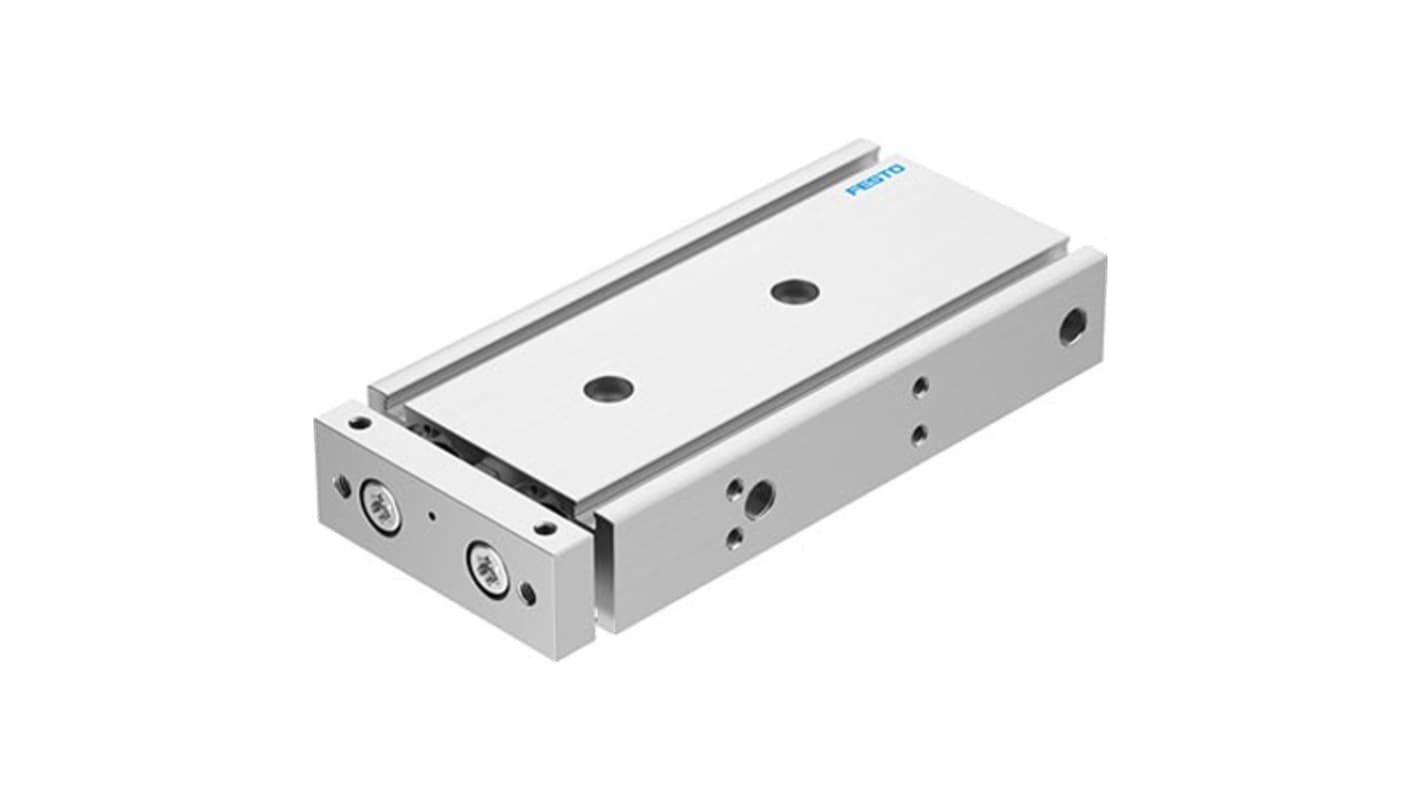

Festo Pneumatic Guided Cylinder - DGTZ-GF-25-90-P-A 25 mm Bore, DGTZ Series, 90 mm Double Acting Acting
- RS Stock No.:
- 343-636
- Mfr. Part No.:
- DGTZ-GF-25-90-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£371.63
(exc. VAT)
£445.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 20 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £371.63 |
*price indicative
- RS Stock No.:
- 343-636
- Mfr. Part No.:
- DGTZ-GF-25-90-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25mm | |
| Series | DGTZ | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Guide Type | Plain Bearing | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | VDMA24364 zone III, RoHS, ISO 8573-1:2010 (7:4:4), Class 6 according to ISO 14644-1 | |
| Weight | 1040g | |
| Width | 78mm | |
| Height | 28mm | |
| Length | 88mm | |
| Stroke Length | 90mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25mm | ||
Series DGTZ | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Cushioning Type Elastic | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Guide Type Plain Bearing | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals VDMA24364 zone III, RoHS, ISO 8573-1:2010 (7:4:4), Class 6 according to ISO 14644-1 | ||
Weight 1040g | ||
Width 78mm | ||
Height 28mm | ||
Length 88mm | ||
Stroke Length 90mm | ||
- COO (Country of Origin):
- CN
The Festo Twin-cylinder pneumatic actuator is designed to offer precision in a compact form. With elastic cushioning rings at both ends, it ensures smooth operations and enhanced longevity. The unit operates efficiently within a versatile range of pressures, facilitating a reliable double-acting mode that optimally utilises compressed air. Featuring a lightweight construction with a moving mass of just 1040 g, it is suitable for various mounting positions. Its robust aluminium alloy housing combined with high-alloy stainless steel components guarantees durability, making it an excellent choice for demanding environments. The actuator is built to meet stringent cleanliness requirements, classified to Class 6 according to ISO 14644-1, which is vital for applications involving sensitive components.
Constructed from robust wrought aluminium alloy to ensure durability
Equipped with elastic cushioning for smooth operation and reduced impact
Offers a versatile stroke length adjustment range to enhance application flexibility
Features a plain-bearing guide for improved movement stability
Designed for optional mounting positions to fit diverse installation needs
Provides lubrication possibilities for enhanced performance in various conditions
Offers reliable operation across a wide temperature range, enhancing usability
