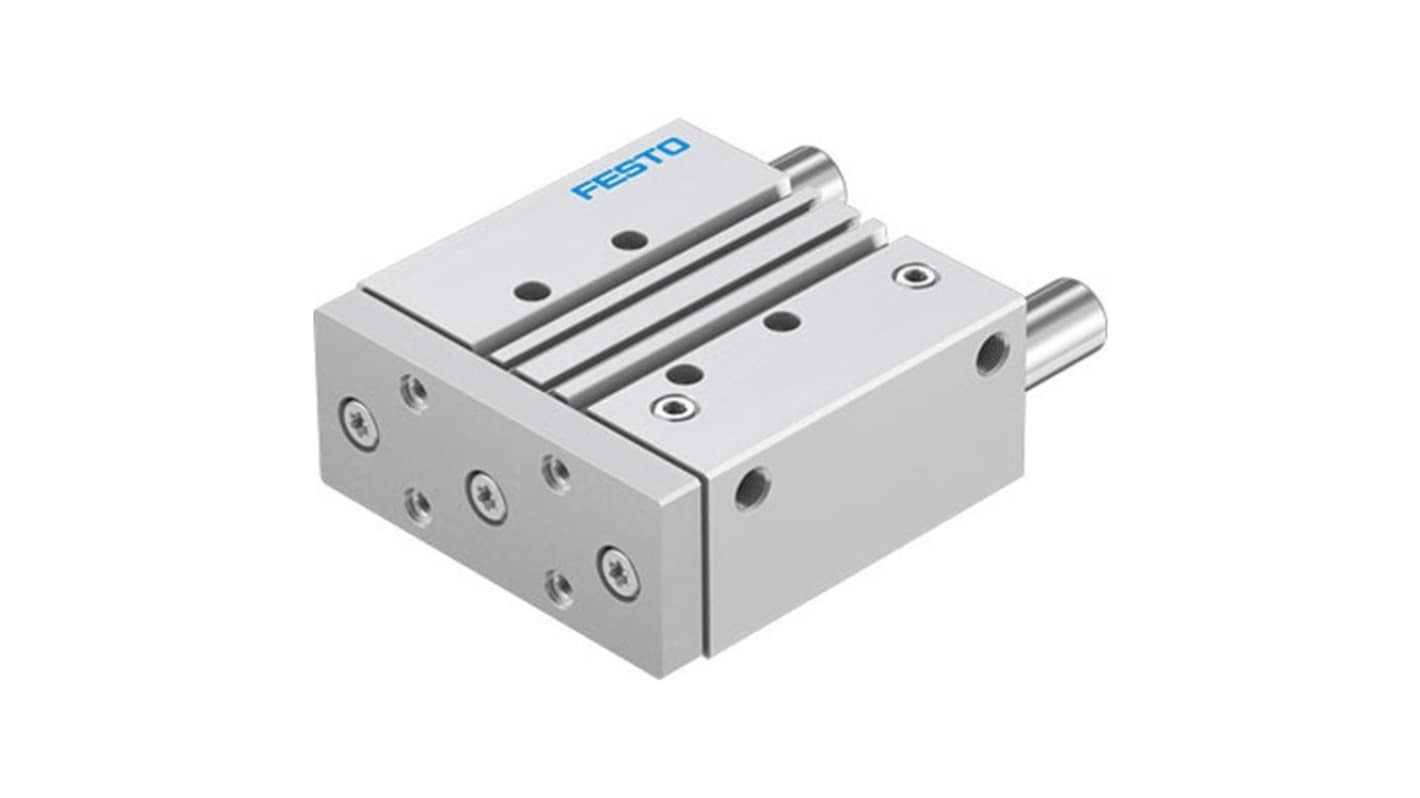

Festo Pneumatic Guided Cylinder - DFM-50-80-P-A-GF-F1A 50 mm Bore, DFM Series, 80 mm Double Acting Acting
- RS Stock No.:
- 343-592
- Mfr. Part No.:
- DFM-50-80-P-A-GF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£513.36
(exc. VAT)
£616.03
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £513.36 |
*price indicative
- RS Stock No.:
- 343-592
- Mfr. Part No.:
- DFM-50-80-P-A-GF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 50mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | 1/4 in G | |
| Piston Rod Thread Standard | BSPP | |
| Guide Type | Plain Bearing | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 5013g | |
| Stroke Length | 80mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 50mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size 1/4 in G | ||
Piston Rod Thread Standard BSPP | ||
Guide Type Plain Bearing | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 5013g | ||
Stroke Length 80mm | ||
- COO (Country of Origin):
- CN
The Festo Double-acting pneumatic drive unit that offers exceptional performance and precision in various applications. This unit features a robust plain-bearing guide, ensuring smooth operation even under demanding conditions. With an operating medium of compressed air conforming to ISO 8573-1:2010, it promises reliable functionality while maintaining a corrosion resistance class of CRC 0, making it ideal for environments where durability is paramount. Designed for flexible mounting options and featuring various compatible materials, this pneumatic drive guarantees ease of integration and longevity, whether in automation or specialised machinery tasks.
Double-acting operation allows for reliable performance in both directions
Elastic cushioning rings/plates at both ends minimise impact and enhance operational lifespan
Plain-bearing guide ensures consistent and accurate positioning
Compatible with lubricated operation for enhanced maintenance options
Built to resist corrosion, extending service life and reliability
Lightweight construction for ease of installation and operation
