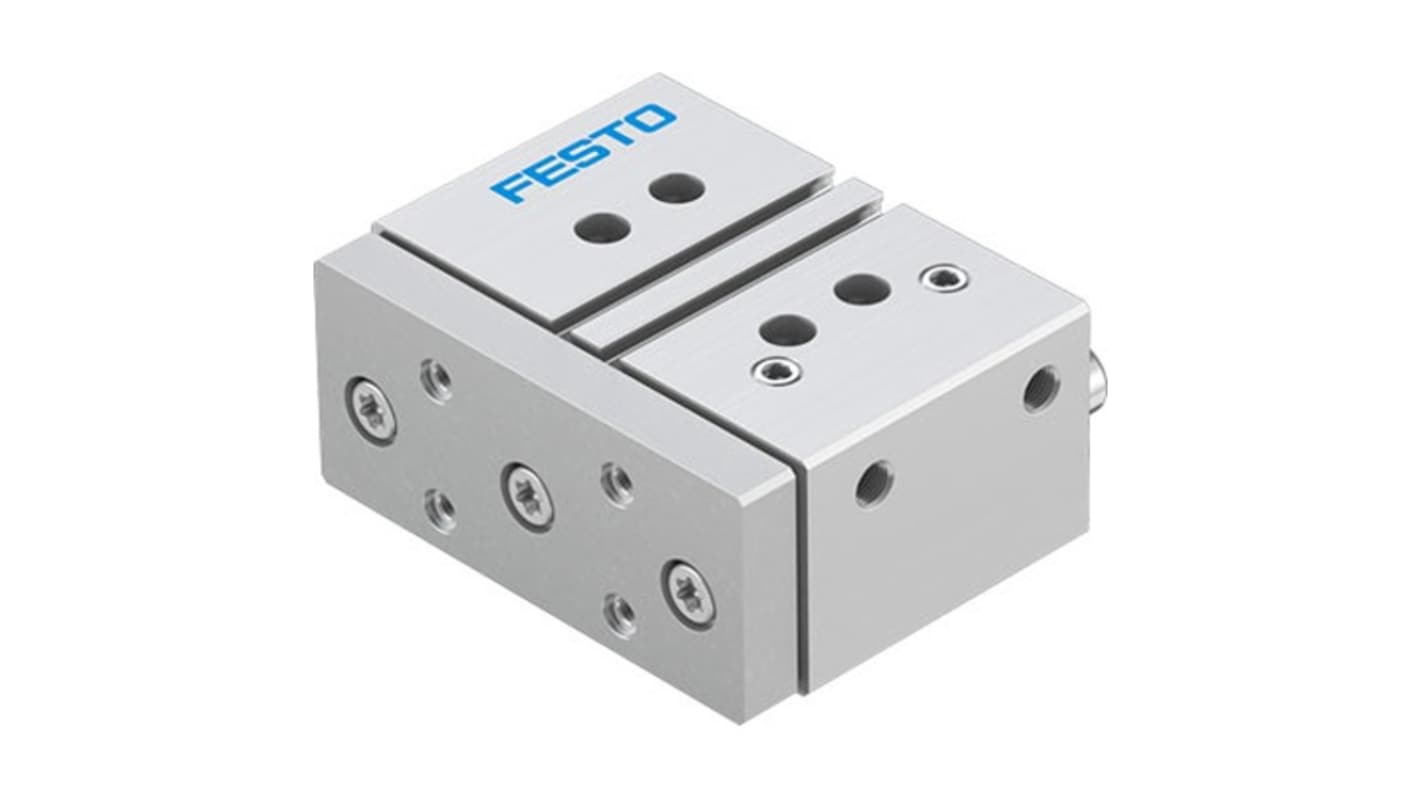

Festo Pneumatic Guided Cylinder - DFM-40-25-P-A-KF-F1A 40 mm Bore, DFM Series, 25 mm Double Acting Acting
- RS Stock No.:
- 342-006
- Mfr. Part No.:
- DFM-40-25-P-A-KF-F1A
- Brand:
- Festo
Subtotal (1 unit)*
£455.92
(exc. VAT)
£547.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £455.92 |
*price indicative
- RS Stock No.:
- 342-006
- Mfr. Part No.:
- DFM-40-25-P-A-KF-F1A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 40mm | |
| Series | DFM | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Cushioning Type | Elastic | |
| Body Material | Wrought Aluminium Alloy | |
| Minimum Operating Temperature | -5°C | |
| Guide Type | Ball Bearing | |
| Piston Rod Thread Size | 1/8 in G | |
| Piston Rod Thread Standard | BSPP | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | |
| Weight | 2043g | |
| Stroke Length | 25mm | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 40mm | ||
Series DFM | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Cushioning Type Elastic | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Temperature -5°C | ||
Guide Type Ball Bearing | ||
Piston Rod Thread Size 1/8 in G | ||
Piston Rod Thread Standard BSPP | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals Class 7 According to ISO 14644-1, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L | ||
Weight 2043g | ||
Stroke Length 25mm | ||
- COO (Country of Origin):
- CN
The Festo Guided drive redefines precision in automation, boasting an advanced double-acting design optimised for versatility across various industrial applications. With features like elastic cushioning and a robust recirculating ball bearing guide, this unit facilitates smooth operation while significantly enhancing durability. Designed for usage in cleanroom environments, it meets stringent standards, making it ideal for sensitive processes such as the production of Li-ion batteries. The lightweight yet strong construction is complemented by a range of compatibility with different mounting positions, satisfying diverse operational needs without compromising on performance.
Double acting functionality ensures efficient performance across diverse tasks
Elastic cushioning mechanisms enhance the longevity of the unit
Recirculating ball bearing guide allows for smoother motion and improved reliability
Designed to operate within a wide ambient temperature range, ensuring consistent performance
RoHS compliant materials signify a commitment to environmental sustainability
Multiple mounting positions offer flexibility to adapt to various installation scenarios
