RS PRO Pneumatic Guided Cylinder - 20mm Bore, 100mm Stroke, Double Acting

View all Pneumatic Guided Cylinders

Subtotal (1 unit)*

£162.24

(exc. VAT)

£194.69

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
  • Plus 2 unit(s) shipping from 17 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£162.24

*price indicative

RS Stock No.:
291-823
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Stroke

100mm

Bore

20mm

Action

Double

Bearing Type

Slide Bearing

Cushioning Type

Rubber

COO (Country of Origin):
PL

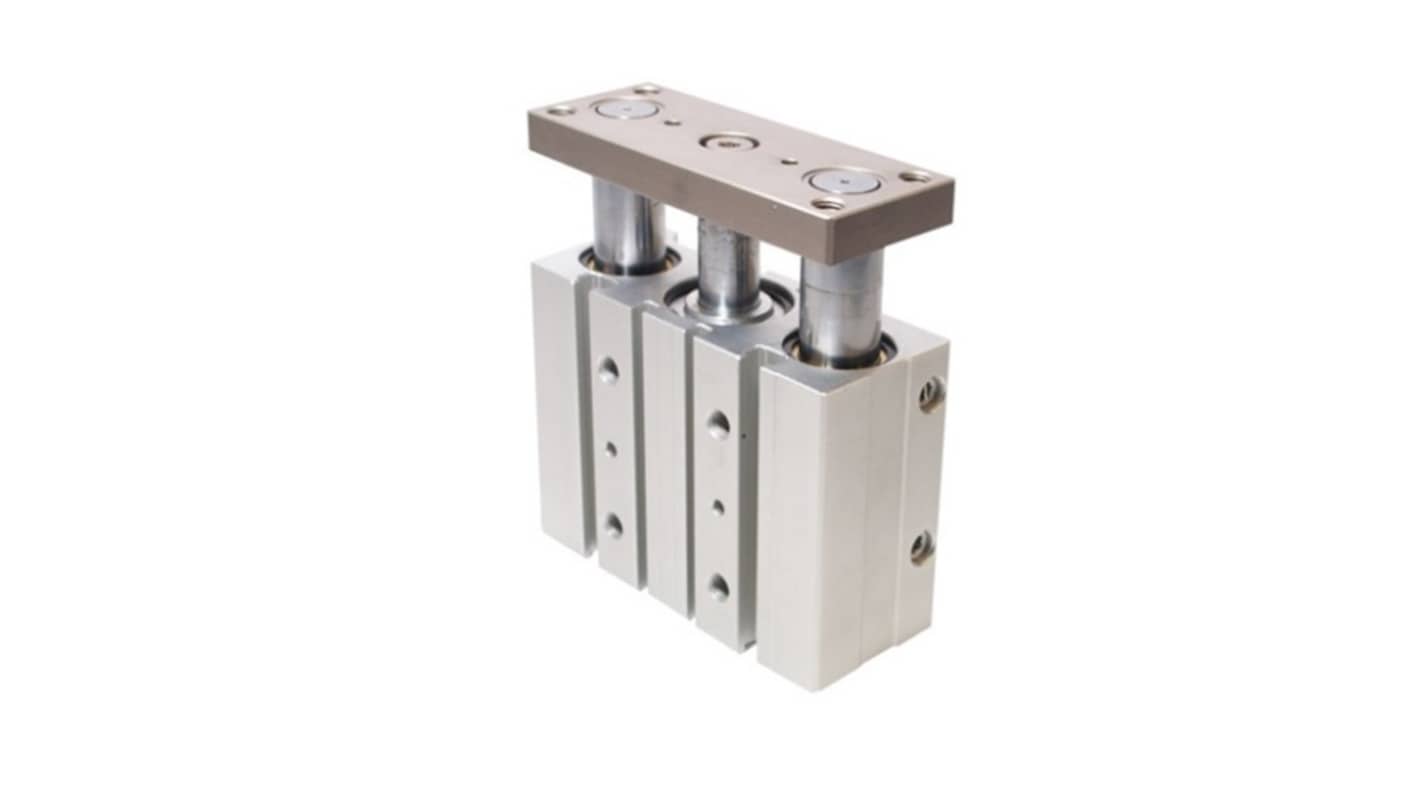

RS PRO Double Action Pneumatic Guided Cylinder, 100mm Stroke, 180 x 83 x 36mm


This RS PRO Guided Cylinder is designed for precision and stability in pneumatic applications. It features a 100mm stroke and is ideal for environments requiring high torque and radial load handling. The compact design integrates the drive and guide units, eliminating the need for additional accessories and saving space.

Features and Benefits


Two guides of special bearing steel: Prevents rotation and supports high torque and radial loads
Integrated drive and guide unit: No additional accessories needed, saving space
Magnetic switch slots: Easy installation of inductive switches
Double-rod guide unit: Enhances stability and precision
Multiple mounting options: Can be mounted from three directions

Applications


Automation systems
Manufacturing equipment
Robotics
Material handling

Additional Information


Pneumatic Connection: M6
Maximum Operating Pressure: 10bar
Cushioning Type: Rubber
Operating Temperature Range: -20°C to 80°C
Dimensions: 180 x 83 x 36mm
Weight: 1460g
Bore: 20mm
Action: Double
Bearing Type: Slide Bearing
Size Type: Compact
Model Number: TCM20X100SG Guide unit D20x100 sliding guides HNG020.0100BS
Better World Product: Information not provided
Better World Verification: Information not provided
Better World Claim: Information not provided
Absolute Maximum Pressure: Information not provided
Length: 180mm
Width: 83mm
Height: 36mm
Stroke: 100mm
Dimensions: 180 x 83 x 36mm
Weight: 1460g
Maximum Operating Temperature: 80°C
Minimum Operating Temperature: -20°C
Absolute Maximum Pressure: Information not provided
Height: 36mm
Bore: 20mm
Action: Double
Bearing Type: Slide Bearing
Pneumatic Connection: M6
Maximum Operating Pressure: 10bar
Cushioning Type: Rubber
Model Number (p): Information not provided
