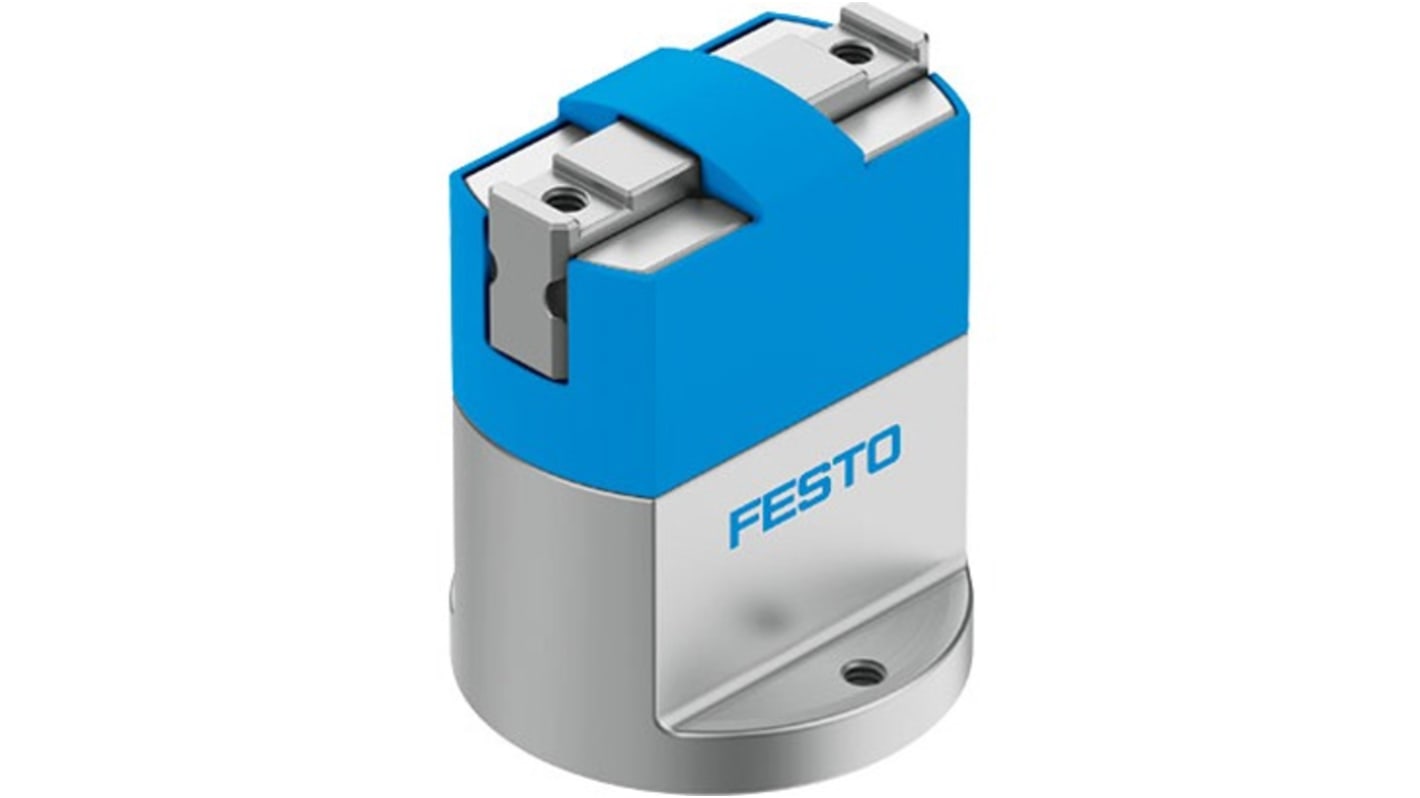

Festo 2 Finger Single Acting Action Pneumatic Gripper, HGPM-12-EZ-G9, Parallel Gripping Type
- RS Stock No.:
- 281-1487
- Mfr. Part No.:
- HGPM-12-EZ-G9
- Brand:
- Festo
Subtotal (1 unit)*
£345.67
(exc. VAT)
£414.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £345.67 |
*price indicative
- RS Stock No.:
- 281-1487
- Mfr. Part No.:
- HGPM-12-EZ-G9
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 2 | |
| Gripping Type | Parallel | |
| Stroke Length | 3mm | |
| Action Type | Single Acting | |
| Series | HGPM | |
| Maximum Operating Pressure | 8 bar | |
| Weight | 62g | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Maximum Operating Frequency | 4Hz | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 2 | ||
Gripping Type Parallel | ||
Stroke Length 3mm | ||
Action Type Single Acting | ||
Series HGPM | ||
Maximum Operating Pressure 8 bar | ||
Weight 62g | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Maximum Operating Frequency 4Hz | ||
The Festo Parallel gripper operates in a single acting mode. The gripper employs a wedge shaped drive design for optimal force transmission. It is based on pneumatic drive system. The cover cap is made from POM. The housing is constructed from anodised wr
RoHS compliant
Low corrosion stress
Lubricated operation possible
Compressed air operating medium
