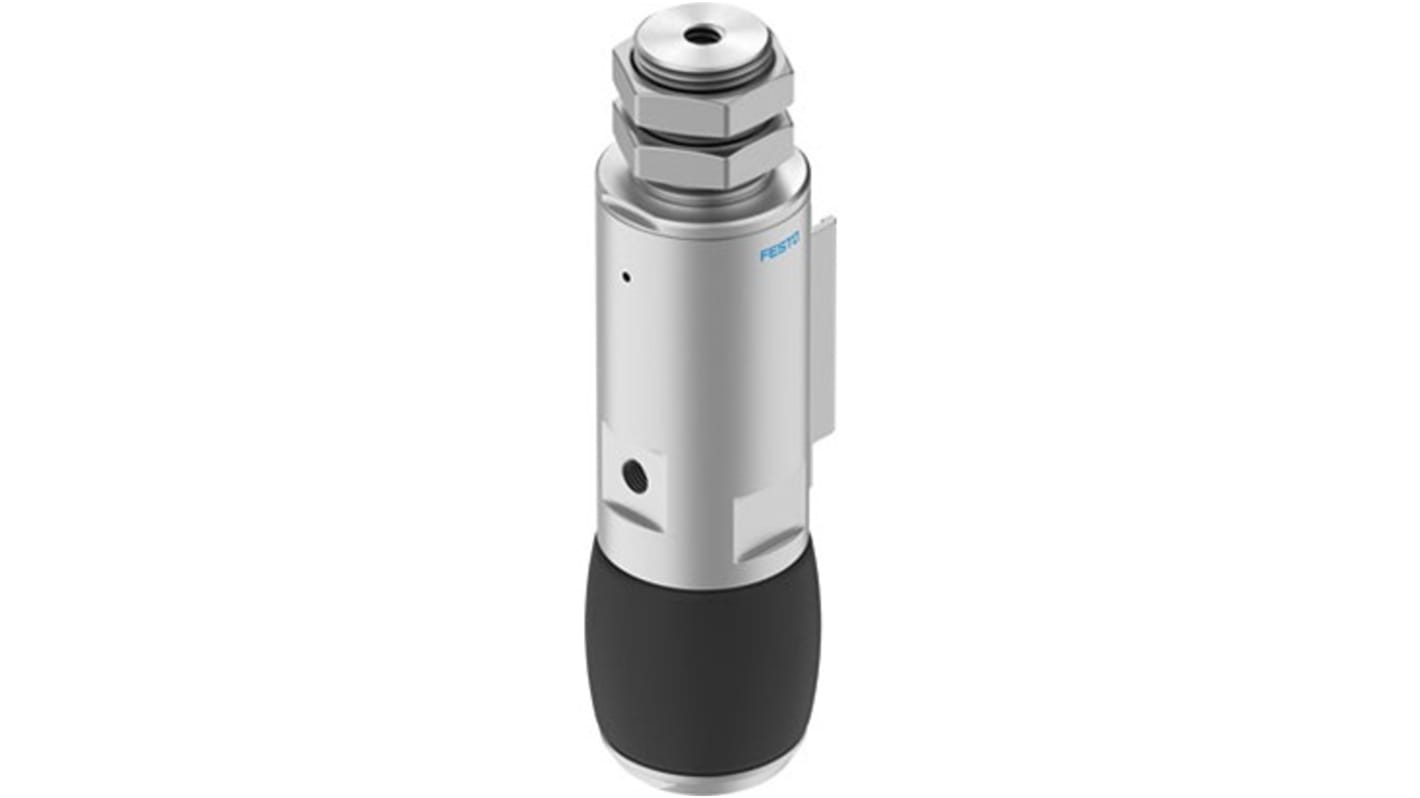

Festo Single Acting Action Pneumatic Gripper, DHEB-27-E-U-E-P, Adaptive Gripping Type
- RS Stock No.:
- 280-8577
- Mfr. Part No.:
- DHEB-27-E-U-E-P
- Brand:
- Festo
Subtotal (1 unit)*
£296.02
(exc. VAT)
£355.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £296.02 |
*price indicative
- RS Stock No.:
- 280-8577
- Mfr. Part No.:
- DHEB-27-E-U-E-P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Bore Diameter | 27mm | |
| Product Type | Pneumatic Gripper | |
| Gripping Type | Adaptive | |
| Stroke Length | 12mm | |
| Action Type | Single Acting | |
| Series | DHEB | |
| Maximum Operating Pressure | 8 bar | |
| Port Size | M5 | |
| Weight | 100g | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Maximum Operating Frequency | 4Hz | |
| Model Number | 1320837 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Bore Diameter 27mm | ||
Product Type Pneumatic Gripper | ||
Gripping Type Adaptive | ||
Stroke Length 12mm | ||
Action Type Single Acting | ||
Series DHEB | ||
Maximum Operating Pressure 8 bar | ||
Port Size M5 | ||
Weight 100g | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Maximum Operating Frequency 4Hz | ||
Model Number 1320837 | ||
- COO (Country of Origin):
- IT
Festo DHEB Series Pneumatic Gripper, 27mm Bore Size, 12mm Stroke Length - DHEB-27-E-U-E-P, Numeric Part Number: 1320837
This pneumatic gripper is a Compact end effector designed to handle Adaptive gripping tasks in automated systems. It operates as a single-acting actuator and is suited to pick-and-place and material-handling roles within controlled pneumatic installations.
Features and Benefits:
• 27mm bore delivers consistent gripping force during cycles • 12mm stroke provides Adaptive jaw movement for varying parts • Operates up to 4 Hz for high-frequency pick-and-place tasks • Withstands 5°C to 60°C environments for flexible plant placement • Lightweight 100 g body reduces load on robotic wrists
Applications
• Suitable for handling small electronic components on assembly lines • Ideal for end-of-arm tooling on lightweight pick-and-place robots • Used for sorting and feeding in automated electrical panel production • Can be used for delicate part manipulation in mechanical subassembly
What port connection does it require for pneumatic supply?
It uses an M5 threaded port for connection to pneumatic tubing or fittings.
How does the actuator behave when Air is removed?
As a single-acting unit, it returns to its default position by an internal mechanism or spring when supply is vented.
What certification relates to materials and manufacturing?
It complies with RoHS requirements restricting certain hazardous substances.
How heavy is the device and how does that affect integration?
The gripper weighs 100 g, keeping inertial loads low for small robotic arms and tooling plates.
Which operating frequency is realistic for cyclic use?
The gripper supports cycle rates up to 4 Hz, suitable for many medium-speed automation applications.
