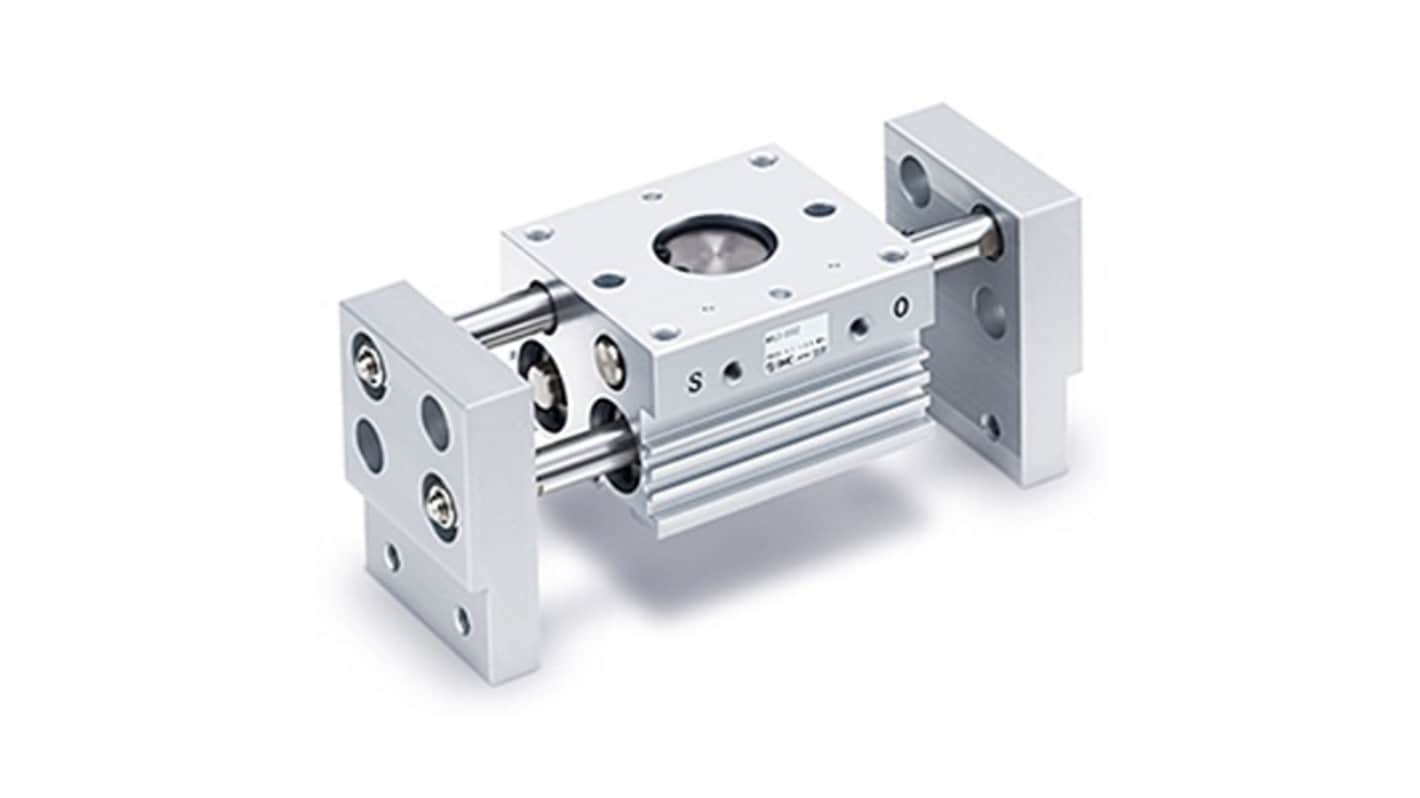

SMC 2 Finger Double Acting Action Pneumatic Gripper, MHL2-10D2Z, Parallel Gripping Type
- RS Stock No.:
- 393-177
- Mfr. Part No.:
- MHL2-10D2Z
- Brand:
- SMC
Subtotal (1 unit)*
£368.83
(exc. VAT)
£442.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £368.83 |
*price indicative
- RS Stock No.:
- 393-177
- Mfr. Part No.:
- MHL2-10D2Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Bore Size | 10 mm | |
| Product Type | Pneumatic Gripper | |
| Number of Fingers | 2 | |
| Gripping Type | Parallel | |
| Action Type | Double Acting | |
| Stroke Length | 20mm | |
| Series | MHL2 | |
| Maximum Operating Pressure | 6 bar | |
| Port Size | M5 | |
| Open Width | 40mm | |
| Minimum Operating Temperature | -10°C | |
| Closed Width | 20mm | |
| Gripping Force - Internal | 396N | |
| Gripping Force - External | 396N | |
| Maximum Operating Temperature | 60°C | |
| Length | 80mm | |
| Height | 45mm | |
| Width | 25 mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Frequency | 60cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Bore Size 10 mm | ||
Product Type Pneumatic Gripper | ||
Number of Fingers 2 | ||
Gripping Type Parallel | ||
Action Type Double Acting | ||
Stroke Length 20mm | ||
Series MHL2 | ||
Maximum Operating Pressure 6 bar | ||
Port Size M5 | ||
Open Width 40mm | ||
Minimum Operating Temperature -10°C | ||
Closed Width 20mm | ||
Gripping Force - Internal 396N | ||
Gripping Force - External 396N | ||
Maximum Operating Temperature 60°C | ||
Length 80mm | ||
Height 45mm | ||
Width 25 mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Frequency 60cpm | ||
- COO (Country of Origin):
- JP
The SMC parallel style air gripper represents the innovative MHL2 series, designed to deliver exceptional gripping efficiency in various industrial applications. With a robust double piston mechanism, it combines compact size with a powerful gripping force, making it ideal for handling diverse workpieces. The product features advanced built-in dust protection and high-quality oil-impregnated resin bearings, ensuring durability and reliability in demanding environments. Its user-friendly design facilitates the installation of auto switches at multiple locations, further enhancing operational flexibility. Whether you're assembling delicate components or moving heavier materials, this air gripper is engineered to optimise performance while minimising maintenance downtime.
Utilises a double piston mechanism for superior gripping force
Compact design allows for installation in tight spaces
Includes built-in dust protection to extend service life
Compatible with various auto switch models for versatile configurations
Oil-impregnated resin bearings ensure smooth operation and reduced friction
Made from durable materials that withstand rigorous industrial conditions
Maintains repeatability of 0.1 for consistent performance
Facilitates easy mounting for enhanced operational efficiency
