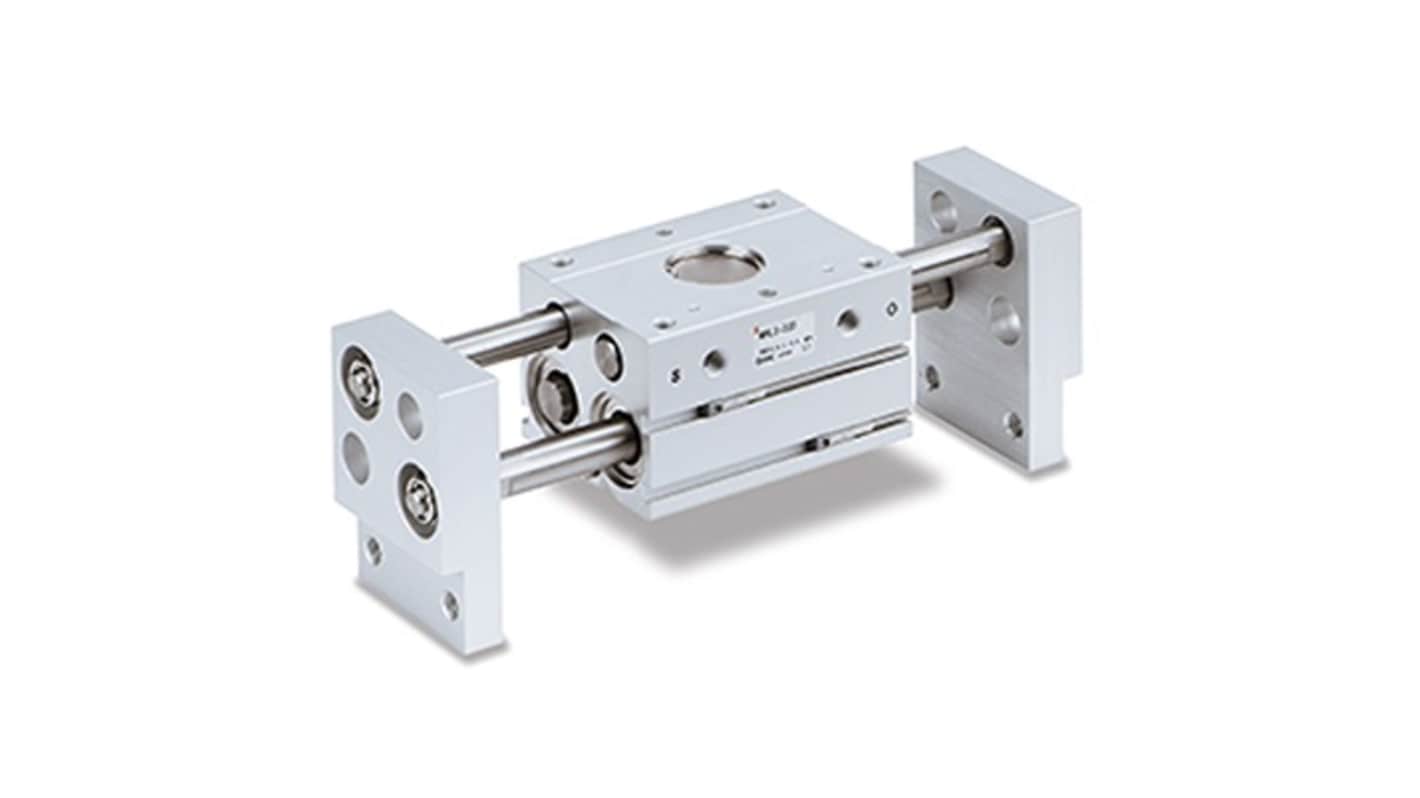

SMC 2 Finger Double Acting Action Pneumatic Gripper, MHL2-20D1, Parallel Gripping Type
- RS Stock No.:
- 393-183
- Mfr. Part No.:
- MHL2-20D1
- Brand:
- SMC
Subtotal (1 unit)*
£480.27
(exc. VAT)
£576.32
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 02 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £480.27 |
*price indicative
- RS Stock No.:
- 393-183
- Mfr. Part No.:
- MHL2-20D1
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Number of Fingers | 2 | |
| Product Type | Pneumatic Gripper | |
| Bore Size | 20 mm | |
| Gripping Type | Parallel | |
| Stroke Length | 80mm | |
| Action Type | Double Acting | |
| Series | MHL2 | |
| Maximum Operating Pressure | 6 bar | |
| Port Size | M5 | |
| Weight | 1335g | |
| Gripping Force - Internal | 74N | |
| Gripping Force - External | 74N | |
| Open Width | 222mm | |
| Minimum Operating Temperature | -10°C | |
| Closed Width | 142mm | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Length | 222mm | |
| Height | 6mm | |
| Width | 25 mm | |
| Maximum Operating Frequency | 60cpm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Number of Fingers 2 | ||
Product Type Pneumatic Gripper | ||
Bore Size 20 mm | ||
Gripping Type Parallel | ||
Stroke Length 80mm | ||
Action Type Double Acting | ||
Series MHL2 | ||
Maximum Operating Pressure 6 bar | ||
Port Size M5 | ||
Weight 1335g | ||
Gripping Force - Internal 74N | ||
Gripping Force - External 74N | ||
Open Width 222mm | ||
Minimum Operating Temperature -10°C | ||
Closed Width 142mm | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Length 222mm | ||
Height 6mm | ||
Width 25 mm | ||
Maximum Operating Frequency 60cpm | ||
- COO (Country of Origin):
- JP
The SMC parallel style air gripper offers exceptional performance for various applications, showcasing a wide gripping range. Designed with a double-end type oil-impregnated resin bearing, it ensures durability and reliability while maintaining a compact structure. Its innovative dual piston mechanism generates significant gripping force, allowing it to handle diverse workpieces effortlessly. Enhanced by built-in dust protection, the gripper is ideal for environments where contamination is a concern. With user-friendly auto switch mounting options, the air gripper streamlines operations, making it a versatile choice for automation solutions.
Dual piston design delivers substantial gripping power
Compact structure maximises workspace efficiency
Integrated dust protection guards against contamination
Versatile for handling various workpiece diameters
User-friendly mounting options simplify installation
Durable construction ensures long-term reliability
Designed for ease of operation in automated environments
Offers flexibility in switch positioning for customised applications
