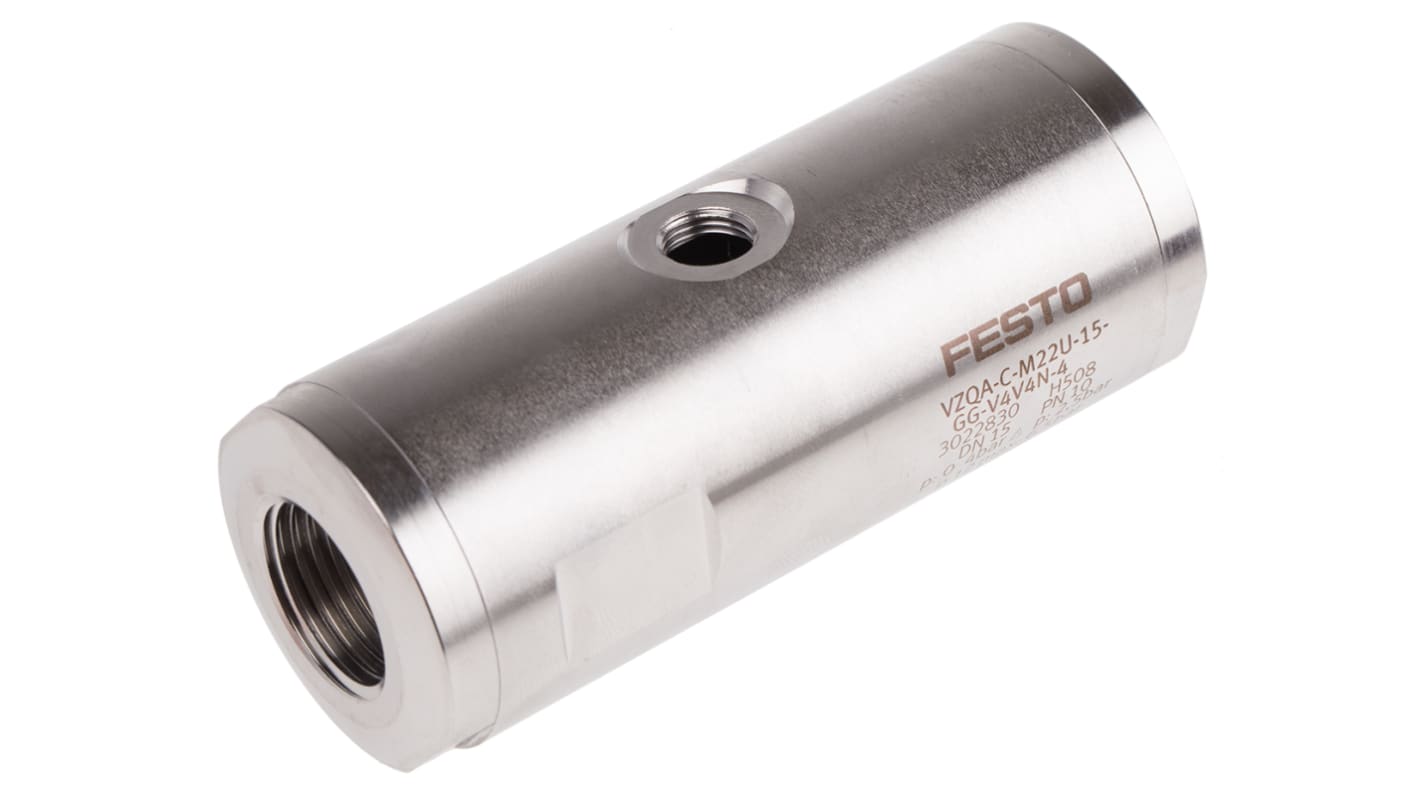

Festo VZQA Series Pinch Valve, 3022830, Inlet Female G 1/2, Outlet Female

View this category

Subtotal (1 unit)*

£273.11

(exc. VAT)

£327.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£273.11

*price indicative

RS Stock No.:
121-5792
Mfr. Part No.:
VZQA-C-M22U-15-GG-V4V4N-4
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pinch Valve

Series

VZQA

Inlet Thread Standard

G 1/2

Inlet Port Gender

Female

Maximum Operating Pressure

6 bar

Material

Wrought Aluminium Alloy, High Alloy Stainless Steel, POM

Minimum Operating Temperature

-5°C

Outlet Port Gender

Female

Maximum Operating Temperature

100°C

Standards/Approvals

RoHS, ASME-BPE, ISO 8573-1:2010, DIN 32676

Hazardous Area Certification

NO

Minimum Operating Pressure

0bar

Proof Pressure

16bar

Model Number

3022830

COO (Country of Origin):
DE

Festo VZQA Series Pinch Valve, 15mm Tube Inlet Port, 4 bar Maximum Outlet Pressure - VZQA-C-M22U-15-GG-V4V4N-4, Numeric Part Number: 3022830


This pinch valve is a pneumatically actuated device designed for efficient fluid control in various industrial applications. Constructed from high-alloy stainless steel, it features a threaded inlet and outlet port of G ½, catering to nominal size DN 15 requirements. This robust valve operates effectively under a medium pressure range of 0 to 4 bar, ensuring reliability and durability.

Features & Benefits


• Soft sealing principle reduces leakage and enhances control

• Reversible flow direction enables flexible installation

• Operating pressure range from 1 bar to 6.5 bar suits diverse requirements

• Auxiliary pilot air port facilitates quick responsiveness

• Compact weight of 431g allows easy handling and installation

Applications


• Utilised in pneumatic systems for precise flow regulation

• Effective in industries requiring hygienic fluid handling

• Used in robotics for motion control

• Integral in automated systems for fluid transfer

What is the medium temperature range that it can handle effectively?


The device can manage media temperatures ranging from -5°C to 60°C, providing versatility for various environments.

How does the valve perform under varying pressure conditions?


It operates efficiently across a medium pressure span of 0 to 4 bar and can withstand burst pressures up to 16 bar, making it suitable for multiple pressure demands.

What materials are used in its construction to ensure longevity?


The housing and cover are composed of high-alloy stainless steel, while seals are made of FPM, ensuring robust and durable performance over time.

FESTO VZQA Pneumatic Pinch Valves


The VZQA pneumatic actuated pinch valve is a 2 way valve fitting and is used for controlling the flow of different materials in the tubing or pipe. The valve is either open or closed, both ensure that there is minimum flow resistance and help prevent the fitting becoming blocked or clogged up.

An open valve enables free flowing material, however the sleeve will close when the fitting is pressurised, therefore shutting off the flow in the tube or pipe. This is ideal for shutting off liquids containing solid particles or solid materials.

A closed valve will open when the valve is pressurised, which releases the flow of material in the tube or pipe, and then will close again when the pressure stops due to the spring in the fitting. This valve is ideal for use with liquid or gases such as air.

Features and Benefits


• Normally open (N/O) and normally closed (N/C) options

• Simple and easy to install

• Pneumatic fittings valve

• Easy to clean hygienic design

• Elastomer pinch valve sleeve shut off

• Sealing cartridge can be replaced without specialist tools

• Multiple connector variants

• Stainless steel and aluminium housing

• End cap available for demanding applications
