Festo GRLA Series Flow Controller Exhaust Valve, 534342, Inlet Female, Outlet Male

View this category
Bulk discount available

Subtotal (1 unit)*

£27.54

(exc. VAT)

£33.05

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 27 unit(s) ready to ship
  • Plus 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£27.54
5 - 9£26.44
10 +£25.34

*price indicative

RS Stock No.:
121-4352
Distrelec Article No.:
301-68-780
Mfr. Part No.:
GRLA-3/8-QS-8-RS-D
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Exhaust Valve

Sub Type

Flow Controller

Series

GRLA

Maximum Operating Pressure

1 bar

Inlet Port Gender

Female

Material

Nickel Plated Brass, Stainless Steel, POM, Wrought Aluminium Alloy, Anodised wrought Aluminium Alloy, Polyamide, Chromed, Die Cast Zinc, Brass, Reinforced, Fluorelastomer (FPM), High Alloy Stainless Steel, Nitrile Rubber (NBR)

Outlet Port Gender

Male

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

150°C

Standards/Approvals

Free of Copper and PTFE, ISO 8573-1:2010 (7:4:4), RoHS, CRC3 (Festo 940 070), Germanischer Lloyd

Hazardous Area Certification

NO

Minimum Operating Pressure

0.2bar

Model Number

534342

COO (Country of Origin):
DE

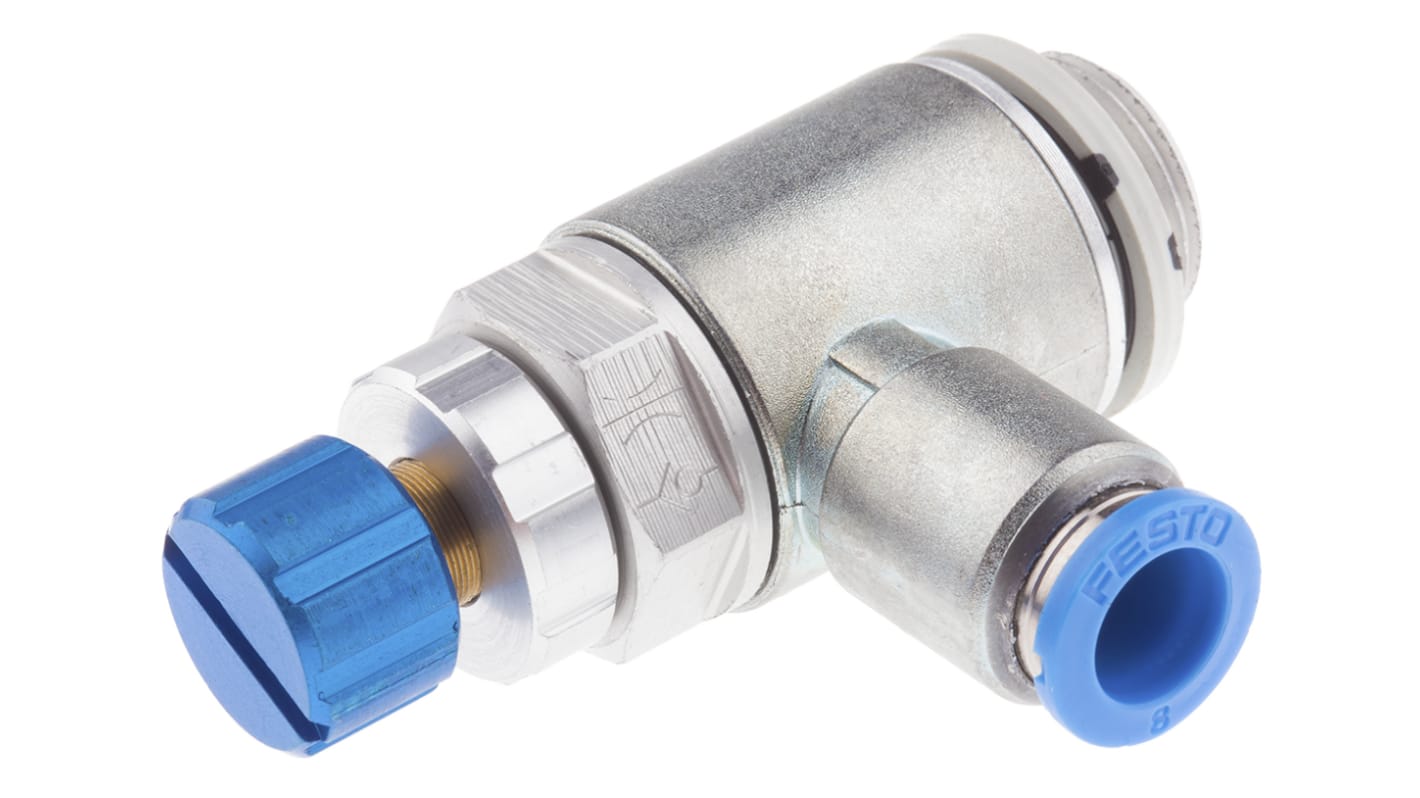

Festo Exhaust Valve, Aluminium Alloy, Male Threaded Outlet - GRLA-3/8-QS-8-RS-D


Keep your pneumatic system under tight control with this one-way exhaust valve from Festo. It's used to manage the flow rate of your exhaust air and regulate the piston speed of downstream pneumatic drives. The ridged and slotted screw head allows you to adjust the flow quickly and easily by hand or with a slotted screwdriver to precisely the level you need. A 3/8 male thread keeps the device securely in place, while a QS-8 push-in connector on the inlet lets you connect and disconnect in a flash.

Features & Benefits


• Wrought aluminium alloy construction combines corrosion resistance for a long service life with light weight to minimise mechanical strain on your system

• Nitrile rubber seals guard against leakage and contamination to keep your system running efficiently

• Can be rotated through 360° for flexible installation

Applications


• Automotive sector

• Food and beverage processing

• Factory automation

How do I connect a push-in fitting?


It's a simple job – just push the tubing firmly into the fitting until it clicks into place, and then pull gently on the tubing to create a secure seal. To disconnect, push the release collar while pulling the tubing out.
