Festo GRLA Series Flow Controller Exhaust Valve, 193151
- RS Stock No.:
- 121-4347
- Distrelec Article No.:
- 301-68-775
- Mfr. Part No.:
- GRLA-3/8-QS-10-D
- Brand:
- Festo
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£24.02
(exc. VAT)
£28.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 40 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.02 |
| 5 - 9 | £23.04 |
| 10 + | £22.10 |
*price indicative
- RS Stock No.:
- 121-4347
- Distrelec Article No.:
- 301-68-775
- Mfr. Part No.:
- GRLA-3/8-QS-10-D
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Exhaust Valve | |
| Sub Type | Flow Controller | |
| Series | GRLA | |
| Maximum Operating Pressure | 1 bar | |
| Minimum Operating Temperature | -10°C | |
| Material | Nitrile Rubber (NBR), POM, Anodised wrought Aluminium Alloy, Wrought Aluminium Alloy, Brass, Die Cast Zinc (Chromed), Nickel Plated Brass, Polyamide Reinforced, High Alloy Stainless Steel | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | Germanischer Lloyd, RoHS | |
| Hazardous Area Certification | No | |
| Minimum Operating Pressure | 0.2bar | |
| Model Number | 193151 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Exhaust Valve | ||
Sub Type Flow Controller | ||
Series GRLA | ||
Maximum Operating Pressure 1 bar | ||
Minimum Operating Temperature -10°C | ||
Material Nitrile Rubber (NBR), POM, Anodised wrought Aluminium Alloy, Wrought Aluminium Alloy, Brass, Die Cast Zinc (Chromed), Nickel Plated Brass, Polyamide Reinforced, High Alloy Stainless Steel | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals Germanischer Lloyd, RoHS | ||
Hazardous Area Certification No | ||
Minimum Operating Pressure 0.2bar | ||
Model Number 193151 | ||
- COO (Country of Origin):
- DE

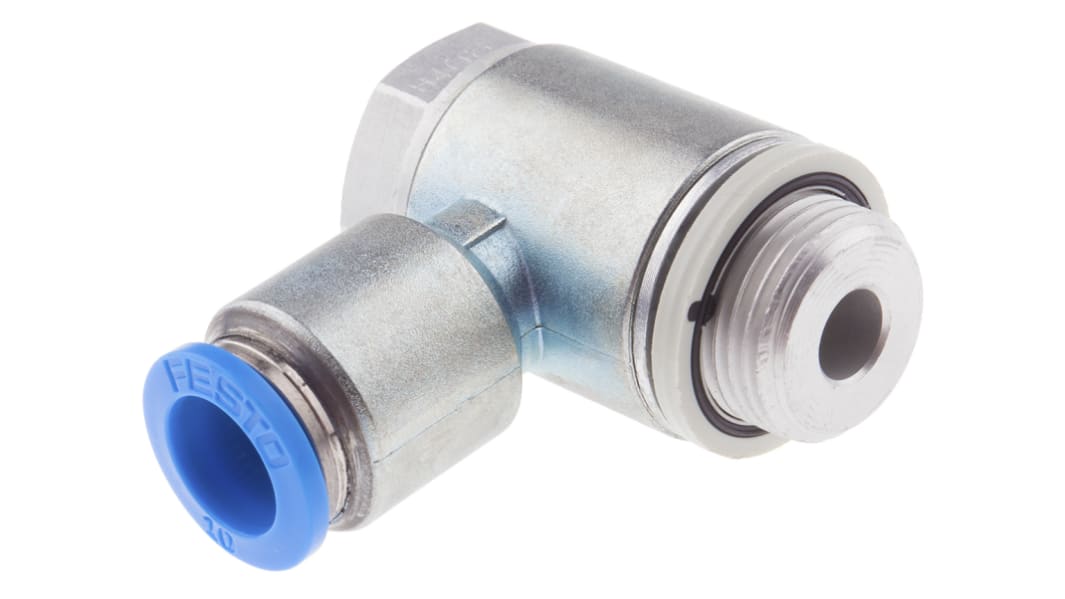

Festo Exhaust Valve, G3/8 Threaded Outlet Port, 60g Weight - GRLA-3/8-QS-10-D
To safely control pneumatic driver speeds, add this exhaust valve from Festo to your setup. It maintains a steady flow rate to regulate piston movement during advance and return strokes. The valve has a one-way flow control system that's quick to set accurately with a standard slotted screwdriver. As it has a G3/8 threaded outlet port, it's widely compatible with connecting parts. The inlet has a push-in fitting for quick and easy mounting. This is a sturdy and corrosion-resistant option thanks to a wrought aluminium alloy body with a brass adjusting screw.
Features & Benefits
• Safely handles a nominal flow rate up to 900L/min for use with fast-paced applications
• Performs reliably in a broad operating temperature range between -10°C and +60°C
• 10Nm nominal tightening torque makes it robust enough to support heavy loads
Applications
• Medical facilities
• Textile processing
• Industrial manufacturing
What size is the valve's inlet port?
The valve has a tube inlet port that's just 10mm in size, making it a compact choice for smaller systems.
What operating medium does this unit handle?
This versatile exhaust valve is compatible with pneumatic systems using compressed air.
