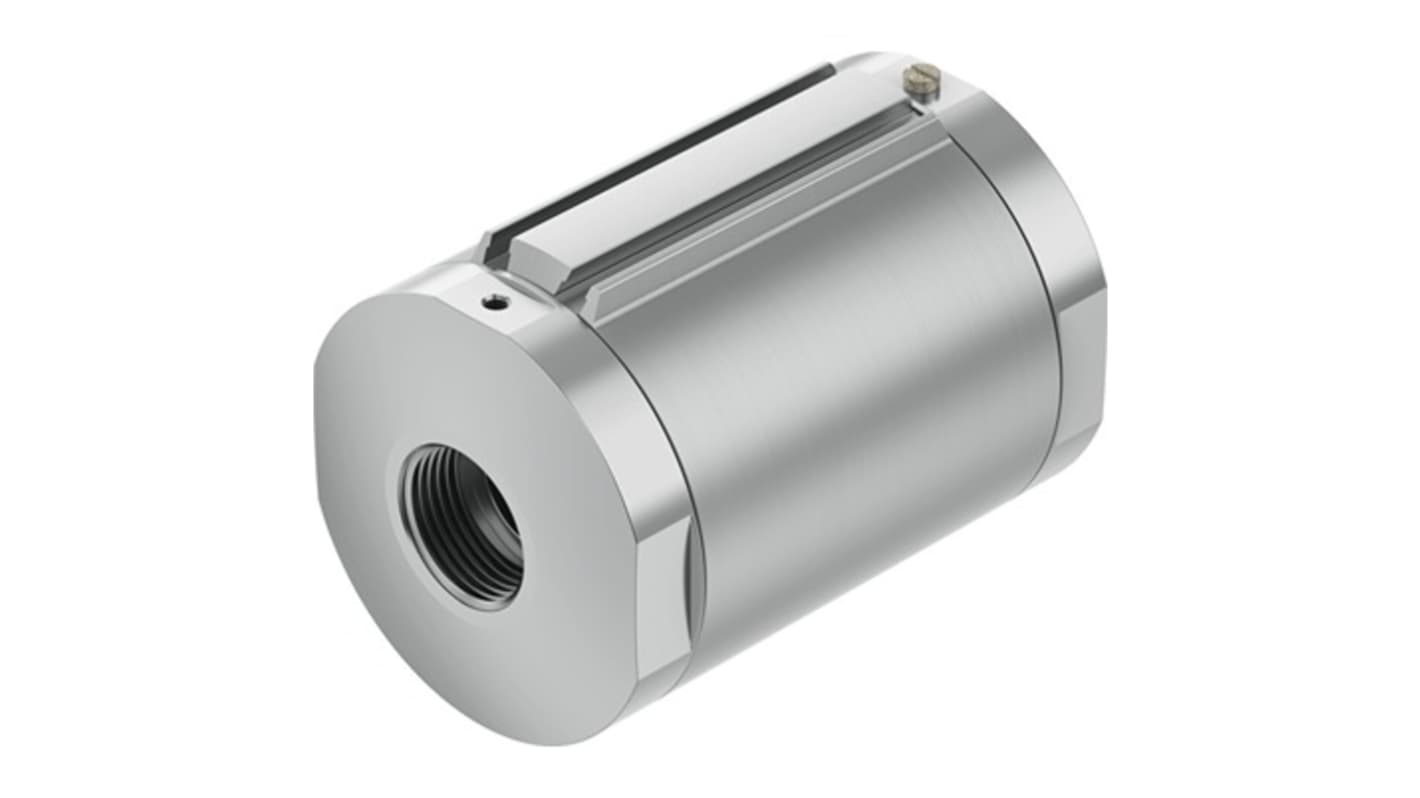

Festo VZQH Series Pinch Valve Pinch Valve, 8159107, G1 G1 1 in G 1 G 1 in
- RS Stock No.:
- 650-641
- Mfr. Part No.:
- VZQA-C-M22C-25-GG-ALALE-5-T28
- Brand:
- Festo
Subtotal (1 unit)*
£639.14
(exc. VAT)
£766.97
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £639.14 |
*price indicative
- RS Stock No.:
- 650-641
- Mfr. Part No.:
- VZQA-C-M22C-25-GG-ALALE-5-T28
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Inlet Connection Type | G1 | |
| Outlet Connection Type | G 1 | |
| Product Type | Pinch Valve | |
| Sub Type | Pinch Valve | |
| Inlet Connection Size | 1 in | |
| Outlet Connection Size | 1 in | |
| Series | VZQH | |
| Inlet Thread Standard | G1 | |
| Maximum Operating Pressure | 0.6 Mpa | |
| Material | Seal: Fluoroelastomer, Wrought Aluminium Alloy, Bowl: Polyphenylene Sulphide, Ethylene Propylene Diene Monomer | |
| Outlet Thread Standard | G | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | VDMA24364 zone III, RoHS | |
| Hazardous Area Certification | No | |
| Minimum Operating Pressure | 3.5bar | |
| Proof Pressure | 16bar | |
| Model Number | 8159107 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Inlet Connection Type G1 | ||
Outlet Connection Type G 1 | ||
Product Type Pinch Valve | ||
Sub Type Pinch Valve | ||
Inlet Connection Size 1 in | ||
Outlet Connection Size 1 in | ||
Series VZQH | ||
Inlet Thread Standard G1 | ||
Maximum Operating Pressure 0.6 Mpa | ||
Material Seal: Fluoroelastomer, Wrought Aluminium Alloy, Bowl: Polyphenylene Sulphide, Ethylene Propylene Diene Monomer | ||
Outlet Thread Standard G | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals VDMA24364 zone III, RoHS | ||
Hazardous Area Certification No | ||
Minimum Operating Pressure 3.5bar | ||
Proof Pressure 16bar | ||
Model Number 8159107 | ||
- COO (Country of Origin):
- DE
The Festo Pinch valve offers precise control of fluid flow in various applications, integrating a pneumatically actuated design that ensures reliability. Built to handle diverse media, including compressed Air and water, this valve operates efficiently under a range of pressures up to 0.6 MPa. Its innovative soft sealing principle enhances performance and adaptability, while the option for in-line installation makes it Ideal for versatile mounting positions. The robust materials used in its construction align with safety regulations, ensuring a high standard for production environments, including those requiring food safety compliance.
Designed as a reliable pinch valve for optimal fluid control
Pneumatic actuation facilitates smooth operation and precise flow regulation
Soft sealing principle ensures effective sealing and minimal leakage
Versatile mounting options allow for in line installation in various setups
Suitable for media including compressed Air and water covering multiple applications
Mechanically resettable for quick recovery after operation
Constructed from RoHS compliant materials which ensuring environmental safety
LABS conformity guarantees compliance with industry specific cleanliness standards
Switching times are optimised at 250 MS for on and 400 MS for off enhancing response speed
