SMC AS1 Series Speed Controller Pneumatic Silencer & Exhaust Restrictor Function Fitting, AS1200-M5-D, Inlet Male,
- RS Stock No.:
- 392-711
- Mfr. Part No.:
- AS1200-M5-D
- Brand:
- SMC
Subtotal (1 unit)*
£11.56
(exc. VAT)
£13.87
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 2 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £11.56 |
*price indicative
- RS Stock No.:
- 392-711
- Mfr. Part No.:
- AS1200-M5-D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Outlet Connection Type | Threaded | |
| Product Type | Pneumatic Silencer & Exhaust Restrictor Function Fitting | |
| Inlet Connection Type | Threaded | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | M5 x 0.8 | |
| Outlet Connection Size | M5 x 0.8 | |
| Series | AS1 | |
| Inlet Thread Standard | Metric | |
| Inlet Port Gender | Male | |
| Maximum Operating Pressure | 1.0 Mpa | |
| Material | Brass | |
| Minimum Operating Temperature | -5°C | |
| Outlet Thread Standard | Metric | |
| Outlet Port Gender | Male | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | ISO 4414, ISO 10218-1, IEC 60204-1, RoHS, ISO 4413 | |
| Hazardous Area Certification | NO | |
| Minimum Operating Pressure | 0.1MPa | |
| Model Number | AS1200-M5-D | |
| Proof Pressure | 1.5MPa | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Outlet Connection Type Threaded | ||
Product Type Pneumatic Silencer & Exhaust Restrictor Function Fitting | ||
Inlet Connection Type Threaded | ||
Sub Type Speed Controller | ||
Inlet Connection Size M5 x 0.8 | ||
Outlet Connection Size M5 x 0.8 | ||
Series AS1 | ||
Inlet Thread Standard Metric | ||
Inlet Port Gender Male | ||
Maximum Operating Pressure 1.0 Mpa | ||
Material Brass | ||
Minimum Operating Temperature -5°C | ||
Outlet Thread Standard Metric | ||
Outlet Port Gender Male | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals ISO 4414, ISO 10218-1, IEC 60204-1, RoHS, ISO 4413 | ||
Hazardous Area Certification NO | ||
Minimum Operating Pressure 0.1MPa | ||
Model Number AS1200-M5-D | ||
Proof Pressure 1.5MPa | ||
- COO (Country of Origin):
- JP

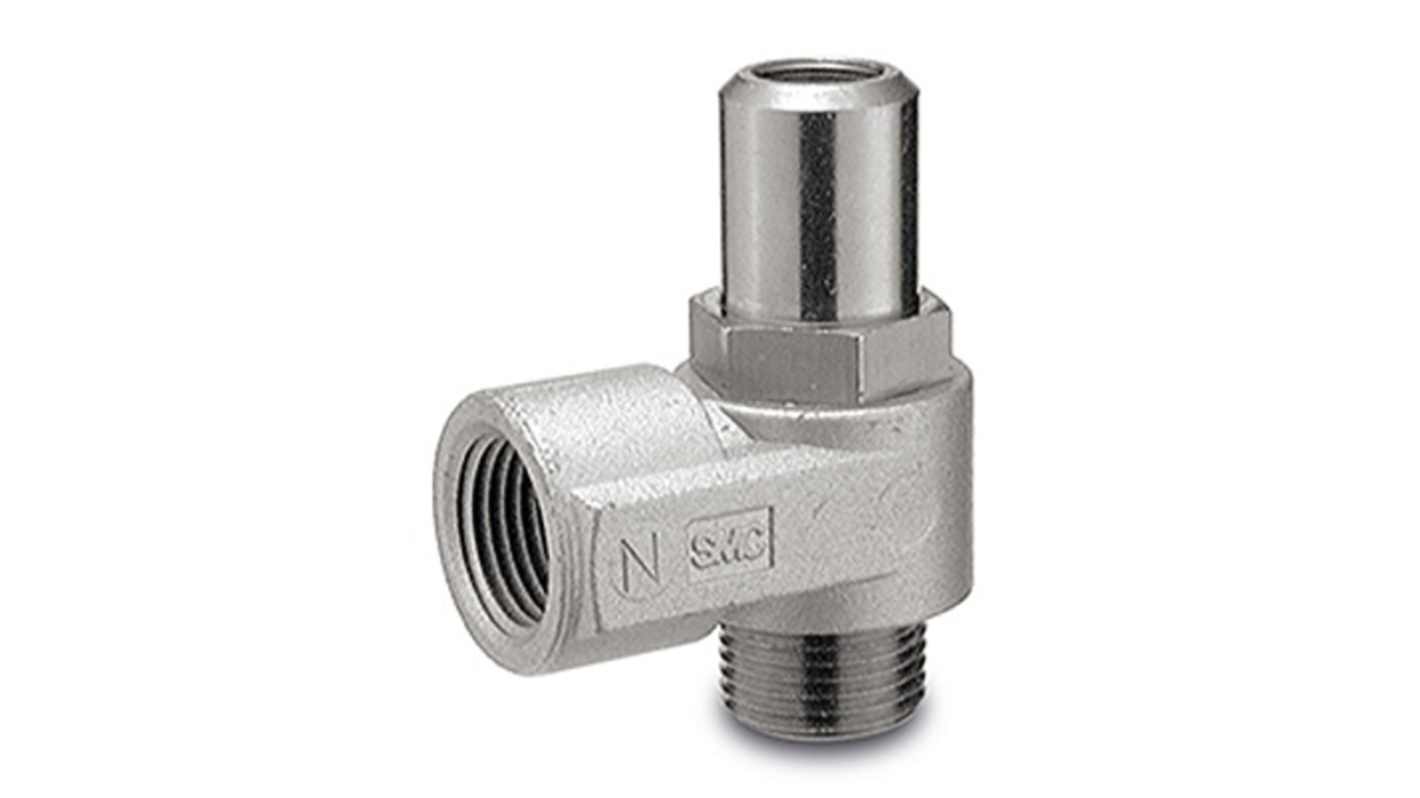

The SMC Elbow is an AS Series lightweight, compact, and precision speed controller which make these speed controller the right choice for many heavy duty applications. These speed controller is in elbow construction to give the widest choice to your unique application. Locking nuts are included as standard as well as simplified mounting.
Tamper proof
Flow rate can be adjusted with a flat head screwdriver
Prevents inadvertent manual operation
Meter out and mete in types can be visually distinguished
by the flow direction symbol on the metal body
On standard models and all brass parts are electroless nickel plated
