Norgren PNEUFIT 10 Series Straight Threaded Adaptor, R 1/8 Male to Push In 10 mm, Threaded-to-Tube Connection Style,

View all Pneumatic Fittings

Subtotal (1 pack of 5 units)*

£39.15

(exc. VAT)

£47.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 35 unit(s) shipping from 06 October 2025
  • Plus 999,999,960 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£7.83£39.15

*price indicative

RS Stock No.:
259-5225
Mfr. Part No.:
101471018
Brand:
Norgren
Find similar products by selecting one or more attributes.
Select all

Brand

Norgren

Connector A

R 1/8 Male

Connector B

Push In 10 mm

Pneumatic Fitting Type

Straight Threaded Adaptor

Connection Style

Threaded-to-Tube

Threaded Connection

R 1/8 Male

Manufacturer Series

PNEUFIT 10

Inlet Port

R 1/8 Male

Model Number p

10147

Number of Inlet Ports

1

Outlet Port

Push In 10 mm

Number of Outlet Ports

1

Thread Material

Nickel Plated Brass

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

Body Material

Nickel Plated Brass

Maximum Operating Pressure

18 bar

Standards Met

ISO

COO (Country of Origin):
IT

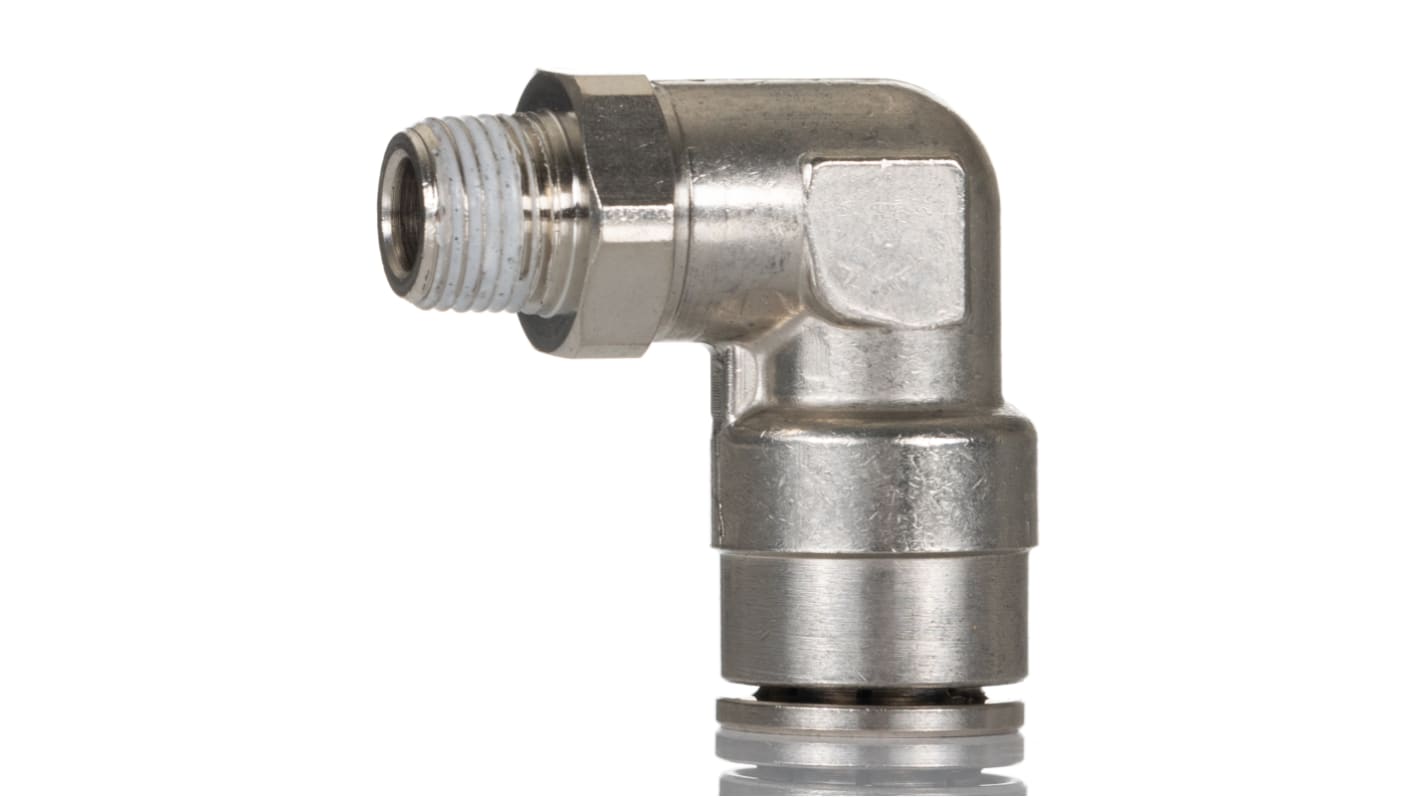

IMI Norgren Pneumatic Fitting, Swivel Elbow Adaptor Type, BSP Taper Thread - PNEUFIT 10 Series - 101471018


When you need a compressed air system that performs under pressure, choose this pneumatic fitting from IMI Norgren. It's up for the challenge of heavy-duty systems, thanks to an operating pressure range of -0.9 to 18 bar. Designed in a 90° elbow shape, the fitting lets you link components from two points. You'll find a 10mm outlet port at one end and a threaded R1/8 connector at the other, so you can pair it with commonly used pipes.

Features & Benefits


• Fits where space is limited with compact dimensions of 34.6 (L) x 32.8 (W) x 16.2mm (H)
• Broad operating temperature range between -20°C and +80°C means it performs in demanding conditions
• Nickel-plated brass housing resists wear and corrosion
• Threaded end comes with pre-applied sealant to save time
• Enables speedy assembly of pneumatic circuits, thanks to a push-in tube connector

Applications


• Automated assembly lines
• Bottling plants
• Paper production

How much does this pneumatic fitting weigh?


It weighs just 37g, so it won't put extra strain on your system.

What type of tubing can I use with this unit?


The connector is compatible with both nylon and polyurethane tubing, making it a versatile choice.
