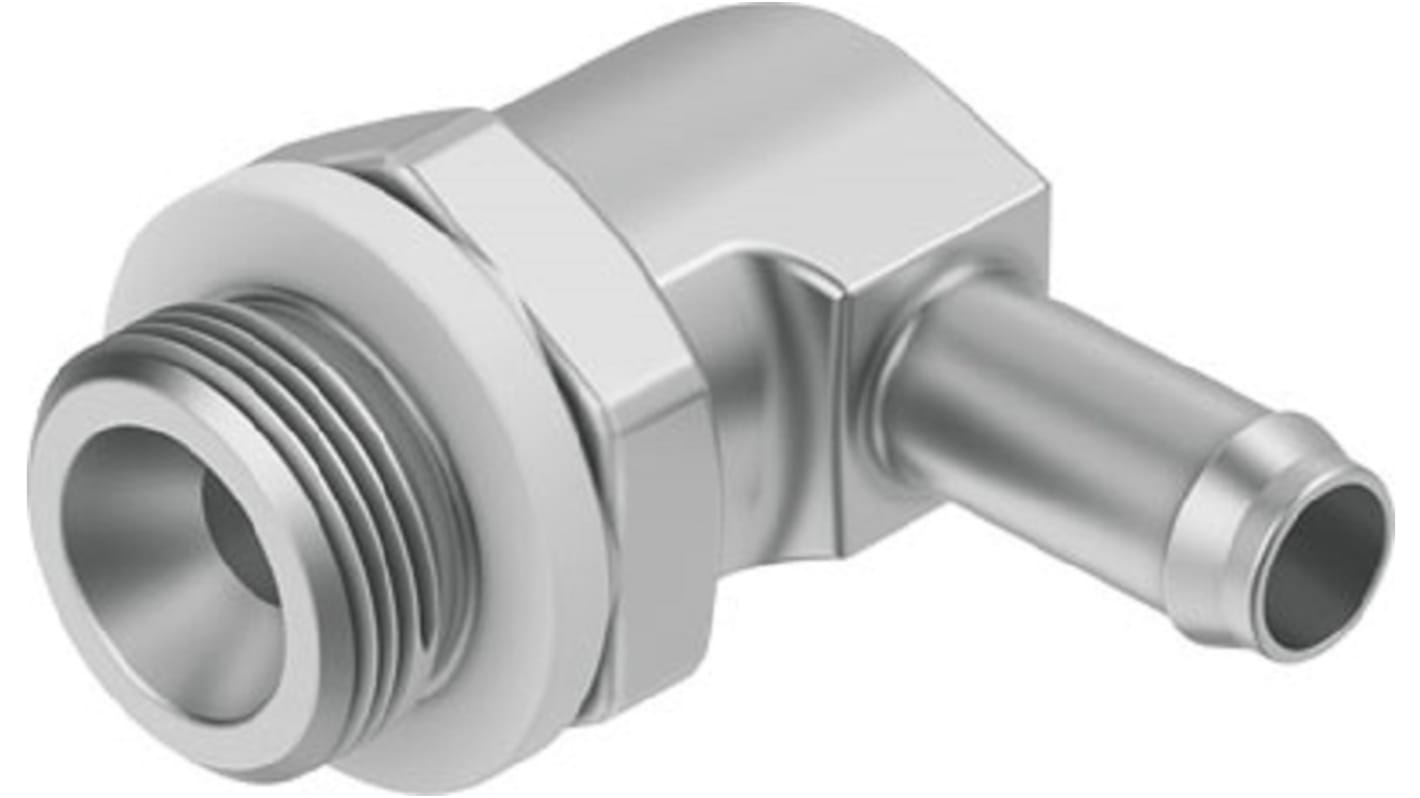

Festo CN Series Elbow Fitting, M5 Male to For tubing outside diameter 4 mm, Threaded-to-Tube Connection Style, 12257
- RS Stock No.:
- 250-2682
- Mfr. Part No.:
- LCN-M5-PK-3
- Brand:
- Festo
Subtotal (1 bag of 10 units)*
£54.89
(exc. VAT)
£65.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 999,999,994 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £54.89 | £5.489 |
*price indicative
- RS Stock No.:
- 250-2682
- Mfr. Part No.:
- LCN-M5-PK-3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | M5 Male | |
Connector B | For tubing outside diameter 4 mm | |
Pneumatic Fitting Type | Elbow Fitting | |
Connection Style | Threaded-to-Tube | |
Threaded Connection | M5 Male | |
Manufacturer Series | CN | |
Inlet Port | M5 Male | |
Number of Inlet Ports | 1 | |
Model Number p | 12257 | |
Outlet Port | Push In 4 mm | |
Number of Outlet Ports | 1 | |
Maximum Operating Pressure | 10 bar | |
Chemical Resistant | Yes | |
Body Material | Steel | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A M5 Male | ||
Connector B For tubing outside diameter 4 mm | ||
Pneumatic Fitting Type Elbow Fitting | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection M5 Male | ||
Manufacturer Series CN | ||
Inlet Port M5 Male | ||
Number of Inlet Ports 1 | ||
Model Number p 12257 | ||
Outlet Port Push In 4 mm | ||
Number of Outlet Ports 1 | ||
Maximum Operating Pressure 10 bar | ||
Chemical Resistant Yes | ||
Body Material Steel | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Festo Series CN Pneumatic Fitting, M5 Male Inlet Port, Elbow Fitting - LCN-M5-PK-3, Numeric Part Number: 12257
This pneumatic fitting serves as an efficient connector in various systems, specifically designed as an elbow fitting. Constructed with robust steel housing, it features a threaded M5 male connection and a push-in outlet suitable for 4mm tubing. Engineered for reliable performance, this fitting is ideal for compressed air applications within the specified operating temperature range.
Features & Benefits
• Constructed from durable steel for high strength
• Threaded M5 male connection ensures secure attachment
• Push-in design simplifies installation for 4mm tubes
• Operates efficiently between 0°C and +60°C
• Chemical-resistant for extended application versatility
• Supports up to 10 bar maximum operating pressure
• Threaded M5 male connection ensures secure attachment
• Push-in design simplifies installation for 4mm tubes
• Operates efficiently between 0°C and +60°C
• Chemical-resistant for extended application versatility
• Supports up to 10 bar maximum operating pressure
Applications
• Used for connecting pneumatic systems in automation
• Ideal for installation in mechanical assembly processes
• Utilised in electrical requiring compressed air
• Functions well in environments with moderate corrosion
• Applied in settings needing reliable air distribution for tools
• Ideal for installation in mechanical assembly processes
• Utilised in electrical requiring compressed air
• Functions well in environments with moderate corrosion
• Applied in settings needing reliable air distribution for tools
What is the significance of the elbow fitting design in this product?
The elbow design allows for versatile installation in tight spaces, enabling better routing of tubing while minimising pressure loss during operation.
Can this fitting handle lubricated air systems?
Yes, it is designed for lubricated operation but such conditions must be consistently maintained to ensure optimal performance and service life.
How does the corrosion resistance class affect its use in specific environments?
With a corrosion resistance class of CRC 2, it can effectively withstand moderate corrosion stress, making it suitable for use in damp or mildly corrosive settings.
