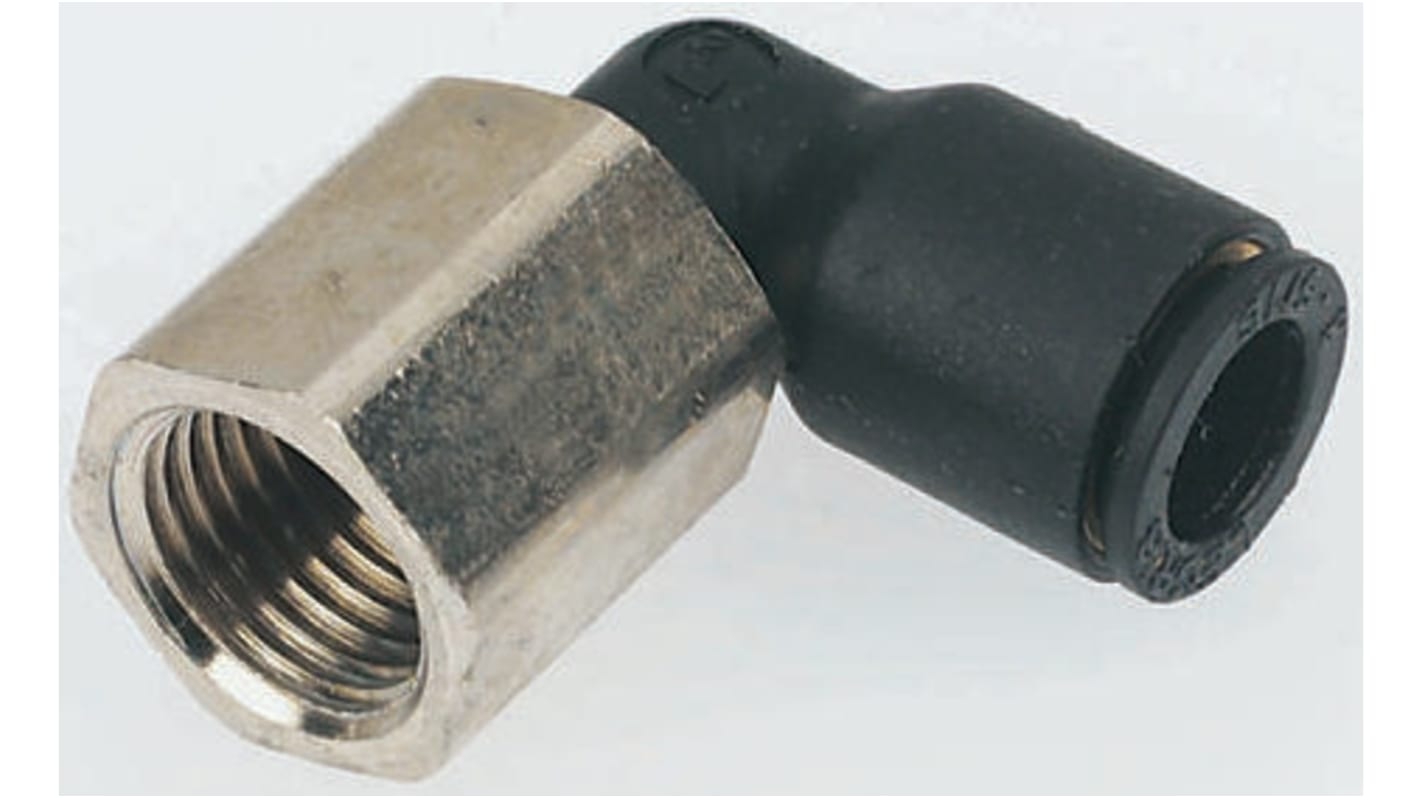

Legris LF3000 Series Elbow Threaded Adaptor, G 1/2 Female to Push In 12 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 227-6029
- Mfr. Part No.:
- 3192 12 21
- Brand:
- Legris
Image representative of range
Bulk discount available
Subtotal (1 pack of 2 units)*
£21.07
(exc. VAT)
£25.284
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 20 unit(s) shipping from 27 October 2025
- Plus 32 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £10.535 | £21.07 |
| 10 - 18 | £10.22 | £20.44 |
| 20 + | £9.885 | £19.77 |
*price indicative
- RS Stock No.:
- 227-6029
- Mfr. Part No.:
- 3192 12 21
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Connector A | G 1/2 Female | |
| Connector B | Push In 12 mm | |
| Pneumatic Fitting Type | Elbow Threaded Adaptor | |
| Connection Style | Threaded-to-Tube | |
| Threaded Connection | G 1/2 Female | |
| Manufacturer Series | LF3000 | |
| Thread Material | Nickel Plated Brass | |
| Swivel Connection | Yes | |
| Maximum Operating Pressure | 20 bar | |
| Mounting Type | Inline | |
| Maximum Operating Temperature | +80°C | |
| Body Material | Glass Reinforced Nylon | |
| Minimum Operating Temperature | -20°C | |
| Angle | 90° | |
Select all | ||
|---|---|---|
Brand Legris | ||
Connector A G 1/2 Female | ||
Connector B Push In 12 mm | ||
Pneumatic Fitting Type Elbow Threaded Adaptor | ||
Connection Style Threaded-to-Tube | ||
Threaded Connection G 1/2 Female | ||
Manufacturer Series LF3000 | ||
Thread Material Nickel Plated Brass | ||
Swivel Connection Yes | ||
Maximum Operating Pressure 20 bar | ||
Mounting Type Inline | ||
Maximum Operating Temperature +80°C | ||
Body Material Glass Reinforced Nylon | ||
Minimum Operating Temperature -20°C | ||
Angle 90° | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Stud Elbow Adaptor - Female Parallel Thread
Threaded Tube Adaptors, Elbows and Tees
4 to 12mm compact fittings
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings
A range of pneumatic elbow and tee adaptors for converting push-in to threaded type connections.
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.
