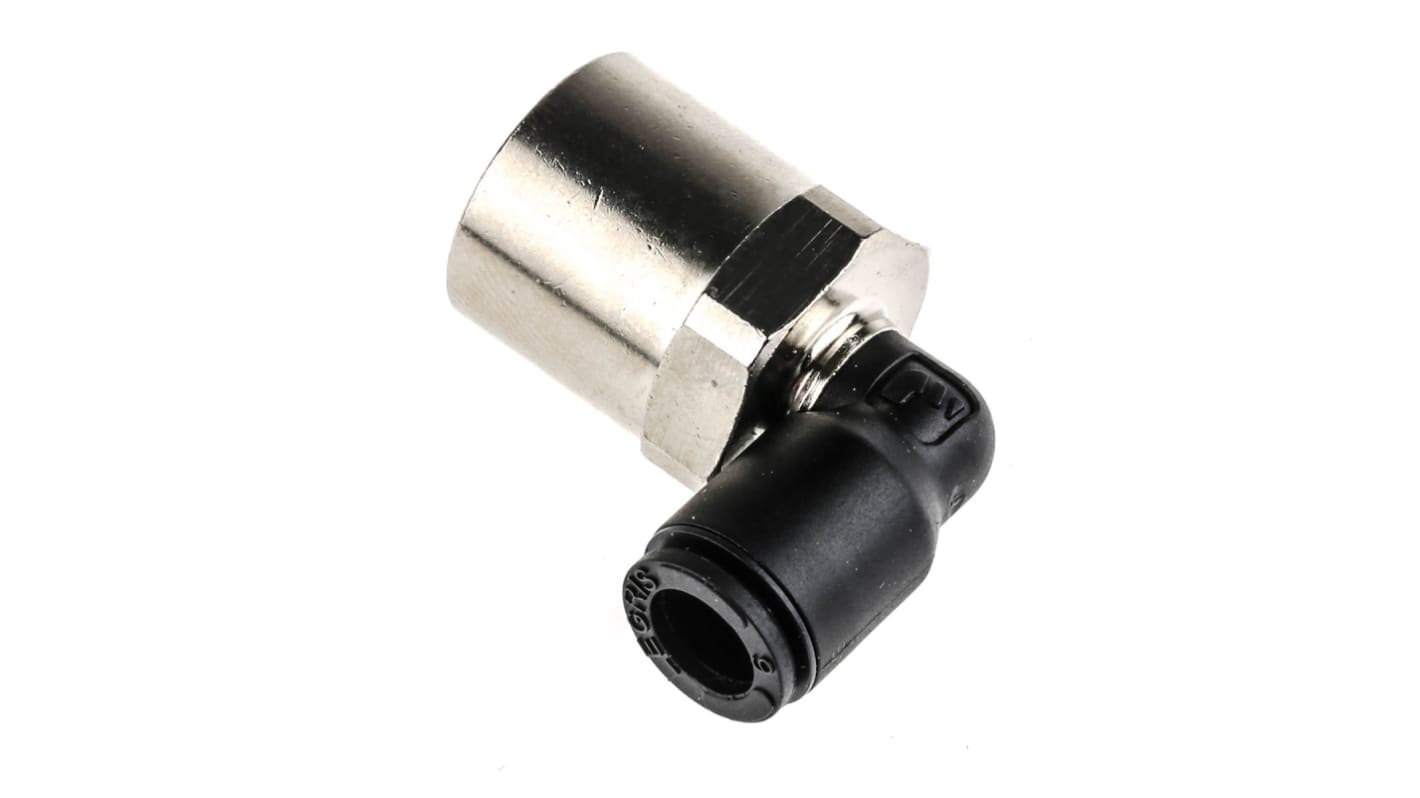

Legris LF3000 Series Elbow Threaded Adaptor, G 1/4 Female to Push In 6 mm, Threaded-to-Tube Connection Style
- RS Stock No.:
- 227-5969
- Mfr. Part No.:
- 3192 06 13
- Brand:
- Legris
465 In stock - FREE next working day delivery available
140 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£4.744
(exc. VAT)
£5.693
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £4.744 | £23.72 |
| 25 - 45 | £4.598 | £22.99 |
| 50 + | £4.444 | £22.22 |
| *price indicative | ||
- RS Stock No.:
- 227-5969
- Mfr. Part No.:
- 3192 06 13
- Brand:
- Legris
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Stud Elbow Adaptor - Female Parallel Thread
Threaded Tube Adaptors, Elbows and Tees
4 to 12mm compact fittings
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings
Suitable for 99% vacuum
Push-in assembly: no tools required
Disconnect by depressing release collet
Plastic body
Nitrile O-rings
A range of pneumatic elbow and tee adaptors for converting push-in to threaded type connections.
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.
All types have a maximum operating pressure of 20 bar and an operating temperature range of -20 to +80°C.
Specifications
Attribute | Value |
|---|---|
| Connector A | G 1/4 Female |
| Connector B | Push In 6 mm |
| Pneumatic Fitting Type | Elbow Threaded Adaptor |
| Connection Style | Threaded-to-Tube |
| Threaded Connection | G 1/4 Female |
| Manufacturer Series | LF3000 |
| Thread Material | Nickel Plated Brass |
| Swivel Connection | Yes |
| Angle | 90° |
| Body Material | Glass Reinforced Nylon |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
| Mounting Type | Inline |
| Maximum Operating Pressure | 20 bar |
- RS Stock No.:
- 227-5969
- Mfr. Part No.:
- 3192 06 13
- Brand:
- Legris
