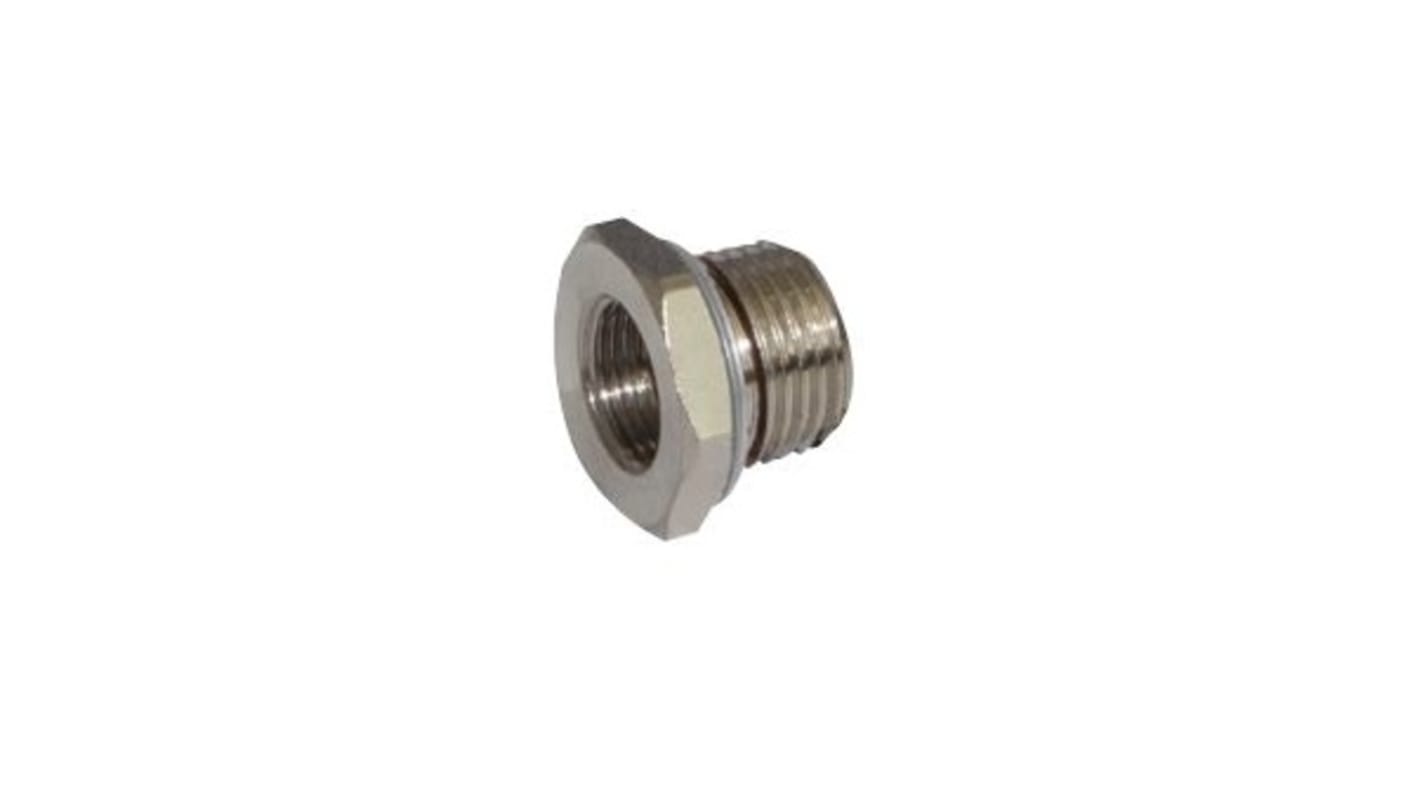

Norgren 16 Series, G 3/4 Male to G 3/8 Female
- RS Stock No.:
- 220-3354
- Mfr. Part No.:
- 160236838
- Brand:
- Norgren
Bulk discount available
Subtotal (1 bag of 5 units)*
£27.10
(exc. VAT)
£32.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £27.10 | £5.42 |
5 - 9 | £26.54 | £5.308 |
10 + | £26.01 | £5.202 |
*price indicative
- RS Stock No.:
- 220-3354
- Mfr. Part No.:
- 160236838
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Connector A | G 3/4 Male | |
Connector B | G 3/8 Female | |
Manufacturer Series | 16 | |
Inlet Port | G 3/4 Male | |
Number of Inlet Ports | 1 | |
Outlet Port | G 3/8 Female | |
Number of Outlet Ports | 1 | |
Maximum Operating Temperature | +70°C | |
Finish | Nickel Plated | |
Mounting Type | Inline | |
Maximum Operating Pressure | 18 Bar | |
Angle | Straight | |
Body Material | Brass | |
Minimum Operating Temperature | -18°C | |
Standards Met | RoHS Compliant | |
Select all | ||
---|---|---|
Brand Norgren | ||
Connector A G 3/4 Male | ||
Connector B G 3/8 Female | ||
Manufacturer Series 16 | ||
Inlet Port G 3/4 Male | ||
Number of Inlet Ports 1 | ||
Outlet Port G 3/8 Female | ||
Number of Outlet Ports 1 | ||
Maximum Operating Temperature +70°C | ||
Finish Nickel Plated | ||
Mounting Type Inline | ||
Maximum Operating Pressure 18 Bar | ||
Angle Straight | ||
Body Material Brass | ||
Minimum Operating Temperature -18°C | ||
Standards Met RoHS Compliant | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
IMI Norgren Pneumatic Fitting, Reducing Connector, -0.9 to 18 Bar Operating Pressure Range - 16 Series - 160236838
This pneumatic fitting from IMI Norgren resizes your air-powered machinery's ports to suit your air supply. It adapts the size of a pneumatic appliance's air intake, ensuring tubing fits the machine, and letting you make convenient connections. By screwing directly into your equipment's ports, the component mounts quickly and achieves easy adaptations. Industry-standard G3/4 and G1/8 thread sizes mean it's widely compatible with standard industrial equipment. As it measures 14mm in length, this fitting is suitable for making pneumatic connections in setups where space is limited.
Features & Benefits
• Supplied with an airtight aluminium seal for effective leak prevention
• Sold in bags of five units for use on multiple jobs
• Supports operating pressures between -0.9 and 18 bar to perform under demanding pressure loads
• Wide operating temperature range between -18°C and +70°C for safe industrial use
• Sold in bags of five units for use on multiple jobs
• Supports operating pressures between -0.9 and 18 bar to perform under demanding pressure loads
• Wide operating temperature range between -18°C and +70°C for safe industrial use
Applications
• Automotive industry
• Environmental management
• Manufacturing facilities
• Environmental management
• Manufacturing facilities
Why should I use pneumatic fittings to adapt the size of my hardware's ports?
Using products like this with your pneumatic equipment eliminates the need to replace your tubing, making for hassle-free system assembly and cutting down on wastage.
