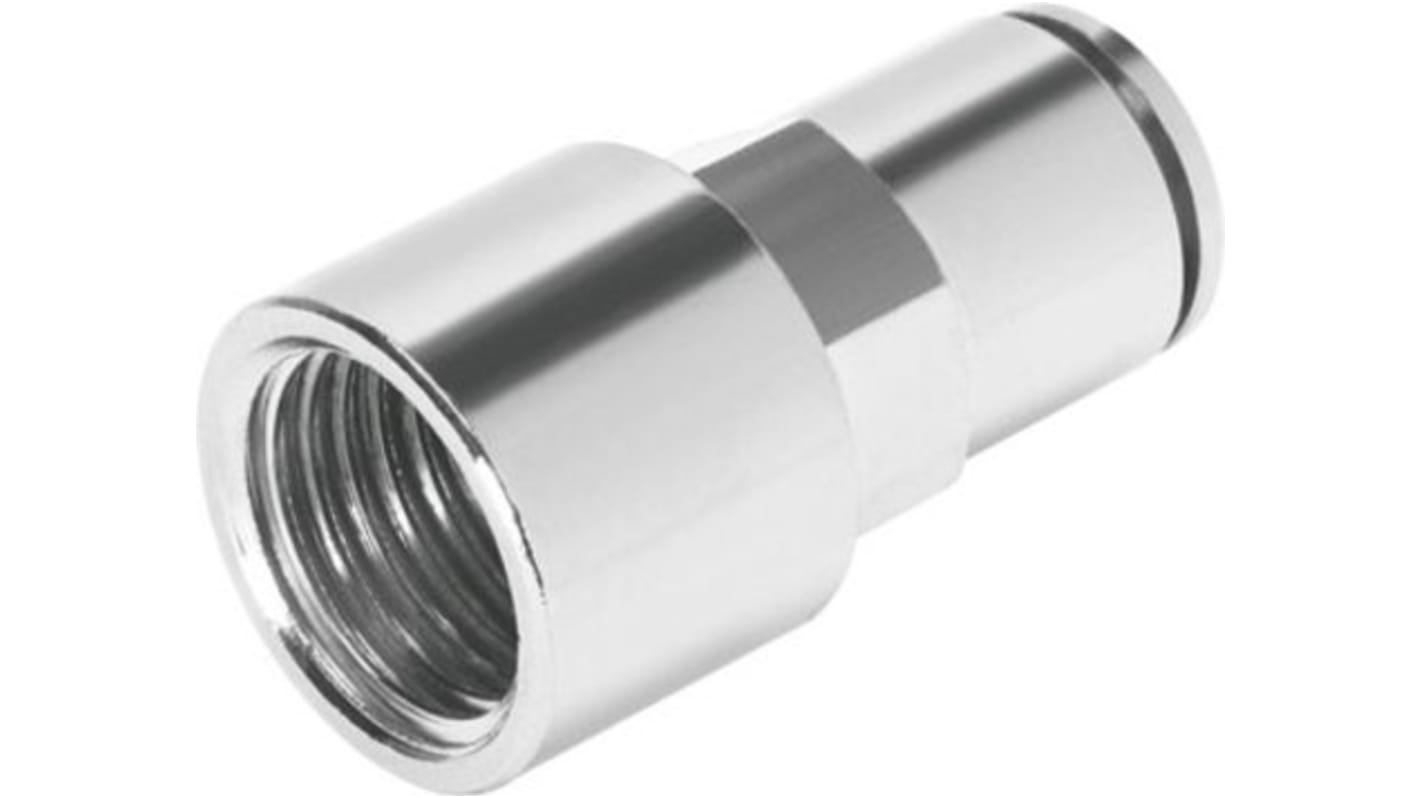

Festo NPQM Series, 558676 Pneumatic Fitting 8mm Pneumatic, Female, G 1/8, G
- RS Stock No.:
- 203-8135
- Mfr. Part No.:
- NPQM-D-G18F-Q8-P10
- Brand:
- Festo
Subtotal (10 units, in packs of 10)*
£42.00
(exc. VAT)
£50.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 70 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £4.20 | £42.00 |
*price indicative
- RS Stock No.:
- 203-8135
- Mfr. Part No.:
- NPQM-D-G18F-Q8-P10
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Fitting | |
| Connection Thread Size | G 1/8 | |
| Connection Thread Standard | G | |
| Connection Size A | G 1/8 Female | |
| Connection Type | Threaded-to-Tube | |
| Connection Size B | Push In 8 mm | |
| Connection Gender | Female | |
| Series | NPQM | |
| Tube Connection Type | Pneumatic | |
| Tube Connection Size | 8mm | |
| Material | Nitrile Rubber (NBR), Nickel Plated Brass | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO8573-1:2010 (7:-:-) | |
| Chemical Resistant | No | |
| Finish | Nickel Plated | |
| Model Number | 558676 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Fitting | ||
Connection Thread Size G 1/8 | ||
Connection Thread Standard G | ||
Connection Size A G 1/8 Female | ||
Connection Type Threaded-to-Tube | ||
Connection Size B Push In 8 mm | ||
Connection Gender Female | ||
Series NPQM | ||
Tube Connection Type Pneumatic | ||
Tube Connection Size 8mm | ||
Material Nitrile Rubber (NBR), Nickel Plated Brass | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO8573-1:2010 (7:-:-) | ||
Chemical Resistant No | ||
Finish Nickel Plated | ||
Model Number 558676 | ||
- COO (Country of Origin):
- IT
The Festo's push-in connector has standard size, nominal size 5 mm and assembled in any position. Its using push/pull principle of structure with operating pressure complete temperature range up to -0.95 - 16 bar.
Ambient temperature -20 to 70 °C
Nickel-plated brass housing material
Product weight 11.5 g
