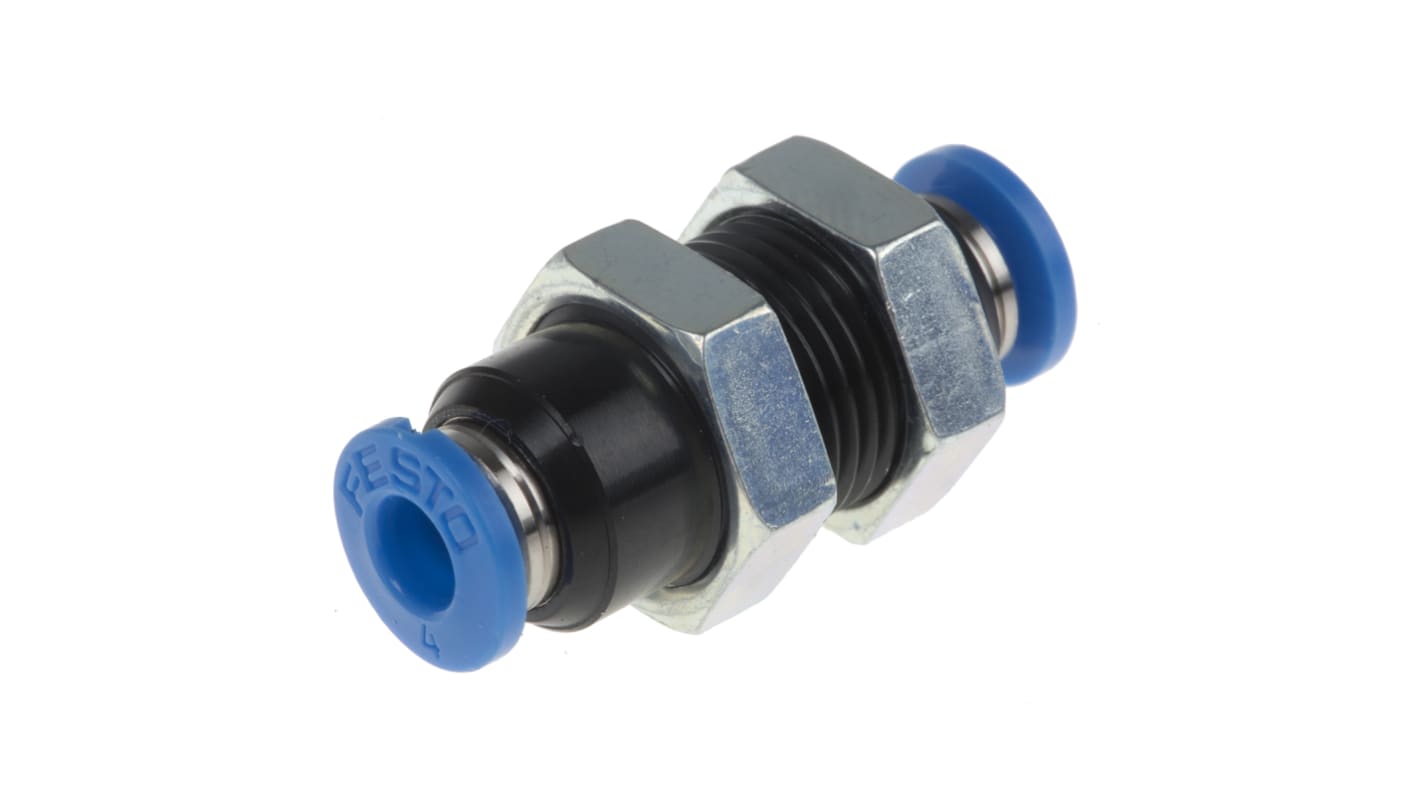

Festo QSS Series Bulkhead Tube-to-Tube Adaptor, Push In 4 mm to Push In 4 mm, Tube-to-Tube Connection Style, 153157
- RS Stock No.:
- 121-5953
- Mfr. Part No.:
- QSS-4
- Brand:
- Festo
Bulk discount available
Subtotal (1 bag of 10 units)*
£46.46
(exc. VAT)
£55.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £46.46 | £4.646 |
5 - 9 | £44.61 | £4.461 |
10 + | £42.75 | £4.275 |
*price indicative
- RS Stock No.:
- 121-5953
- Mfr. Part No.:
- QSS-4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Connector A | Push In 4 mm | |
Connector B | Push In 4 mm | |
Pneumatic Fitting Type | Bulkhead Tube-to-Tube Adaptor | |
Connection Style | Tube-to-Tube | |
Manufacturer Series | QSS | |
Model Number p | 153157 | |
Thread Material | Brass | |
Finish | Nickel Plated | |
Minimum Operating Temperature | -10°C | |
Body Material | Brass | |
Maximum Operating Temperature | +80°C | |
Maximum Operating Pressure | 14 bar | |
Select all | ||
---|---|---|
Brand Festo | ||
Connector A Push In 4 mm | ||
Connector B Push In 4 mm | ||
Pneumatic Fitting Type Bulkhead Tube-to-Tube Adaptor | ||
Connection Style Tube-to-Tube | ||
Manufacturer Series QSS | ||
Model Number p 153157 | ||
Thread Material Brass | ||
Finish Nickel Plated | ||
Minimum Operating Temperature -10°C | ||
Body Material Brass | ||
Maximum Operating Temperature +80°C | ||
Maximum Operating Pressure 14 bar | ||
- COO (Country of Origin):
- JP
Festo QSS Series Pneumatic Fitting, 4mm Connector A, 14 Bar Maximum Operating Pressure - QSS-4, Numeric Part Number:153157
This pneumatic fitting is a bulkhead tube-to-tube adaptor designed to facilitate robust connections in various industrial applications. Constructed from nickel-plated brass, it is engineered for durability and reliability, operating efficiently within a temperature range of -10 °C to +80 °C. The design supports 4mm push-in connections, making it a versatile component for pneumatic systems.
Features & Benefits
• Designed for tube-to-tube connections for streamlined assembly
• Nickel-plated brass construction enhances corrosion resistance
• Operates under maximum pressure of 14 bar for rigorous applications
• Versatile mounting position adapts to various installation needs
• Suitable for both compressed air and water applications
• Lightweight design at 11 g ensures ease of installation
• Nickel-plated brass construction enhances corrosion resistance
• Operates under maximum pressure of 14 bar for rigorous applications
• Versatile mounting position adapts to various installation needs
• Suitable for both compressed air and water applications
• Lightweight design at 11 g ensures ease of installation
Applications
• Used with pneumatic systems in industrial automation settings
• Ideal for connecting tubing in mechanical
• Suitable for compressed air-driven tools and machinery
• Utilised for water line connections in controlled environments
• Ideal for connecting tubing in mechanical
• Suitable for compressed air-driven tools and machinery
• Utilised for water line connections in controlled environments
What is the operational pressure range for this fitting?
The fitting handles pressures between -0.095 MPa to 1.4 MPa, equivalent to 0.95 bar to 14 bar, allowing for high-pressure operations across varying conditions.
Can it be used with lubricated operations?
Yes, it supports lubricated operations, making it suitable for applications that require additional lubrication for optimal performance.
What types of media can this fitting handle?
It is compatible with compressed air to ISO 8573-1:2010 and can also manage water as long as it remains liquid and free from ice.
Is it compliant with environmental regulations?
The materials used are RoHS compliant, ensuring they meet modern safety and environmental standards and are suitable for various applications.
