Festo MS series 1μm G 3/4 2bar to 12 bar Pneumatic Filter 10000L/min max with Automatic, Manual drain
- RS Stock No.:
- 288-2777
- Mfr. Part No.:
- MS9-LFM-3/4-BUV-HF
- Brand:
- Festo
Subtotal (1 unit)*
£527.02
(exc. VAT)
£632.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £527.02 |
*price indicative
- RS Stock No.:
- 288-2777
- Mfr. Part No.:
- MS9-LFM-3/4-BUV-HF
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 1µm | |
| Port Connection | G 3/4 | |
| Drain Type | Automatic, Manual | |
| Manufacturer Series | MS | |
| Maximum Flow Rate | 10000L/min | |
| Minimum Operating Pressure | 2bar | |
| Maximum Operating Pressure | 12 bar | |
Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 1µm | ||
Port Connection G 3/4 | ||
Drain Type Automatic, Manual | ||
Manufacturer Series MS | ||
Maximum Flow Rate 10000L/min | ||
Minimum Operating Pressure 2bar | ||
Maximum Operating Pressure 12 bar | ||
- COO (Country of Origin):
- HU

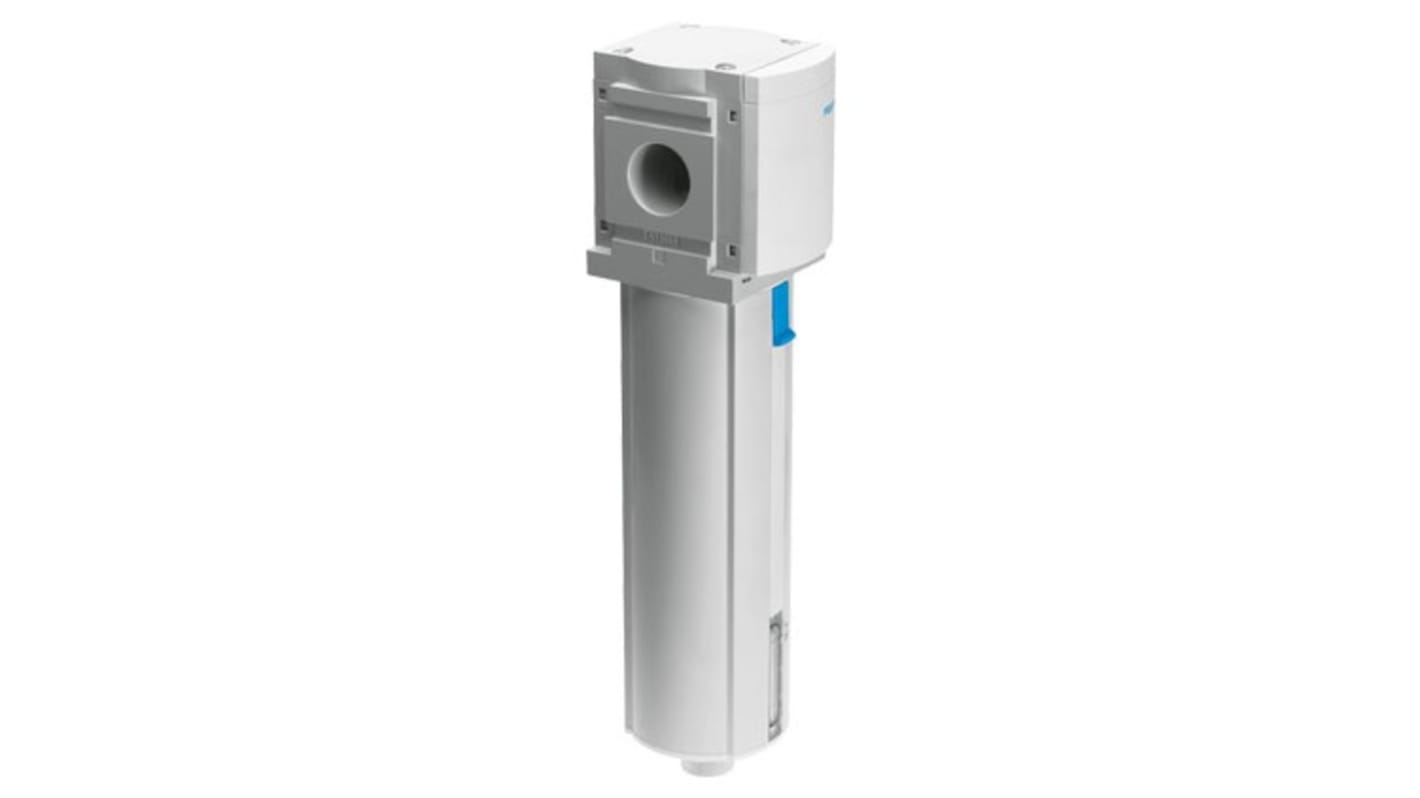

The Festo Fine Filter is a high-quality fibre filter designed for compressed air filtration. With a filtration grade of 1 μm and an efficiency of 99.99%, this filter ensures clean and pure compressed air for various applications.
Fully automatic condensate drain for hassle-free operation
Corrosion resistance class 2 for durability in moderate corrosion stress environments
Filter efficiency of 99.99% to ensure clean air output
Low residual oil content of 0.5 mg/m³ for improved air quality
Suitable for a wide range of operating temperatures from -10°C to 60°C
Corrosion resistance class 2 for durability in moderate corrosion stress environments
Filter efficiency of 99.99% to ensure clean air output
Low residual oil content of 0.5 mg/m³ for improved air quality
Suitable for a wide range of operating temperatures from -10°C to 60°C
