Festo MS series 1μm G 3/4 2bar to 12 bar Pneumatic Filter 7000L/min max with Automatic, Manual drain
- RS Stock No.:
- 288-2776
- Mfr. Part No.:
- MS9-LFM-3/4-BUV-DA
- Brand:
- Festo
Subtotal (1 unit)*
£478.07
(exc. VAT)
£573.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £478.07 |
*price indicative
- RS Stock No.:
- 288-2776
- Mfr. Part No.:
- MS9-LFM-3/4-BUV-DA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Filtration Size | 1µm | |
| Port Connection | G 3/4 | |
| Drain Type | Automatic, Manual | |
| Manufacturer Series | MS | |
| Maximum Flow Rate | 7000L/min | |
| Minimum Operating Pressure | 2bar | |
| Maximum Operating Pressure | 12 bar | |
Select all | ||
|---|---|---|
Brand Festo | ||
Filtration Size 1µm | ||
Port Connection G 3/4 | ||
Drain Type Automatic, Manual | ||
Manufacturer Series MS | ||
Maximum Flow Rate 7000L/min | ||
Minimum Operating Pressure 2bar | ||
Maximum Operating Pressure 12 bar | ||
- COO (Country of Origin):
- HU

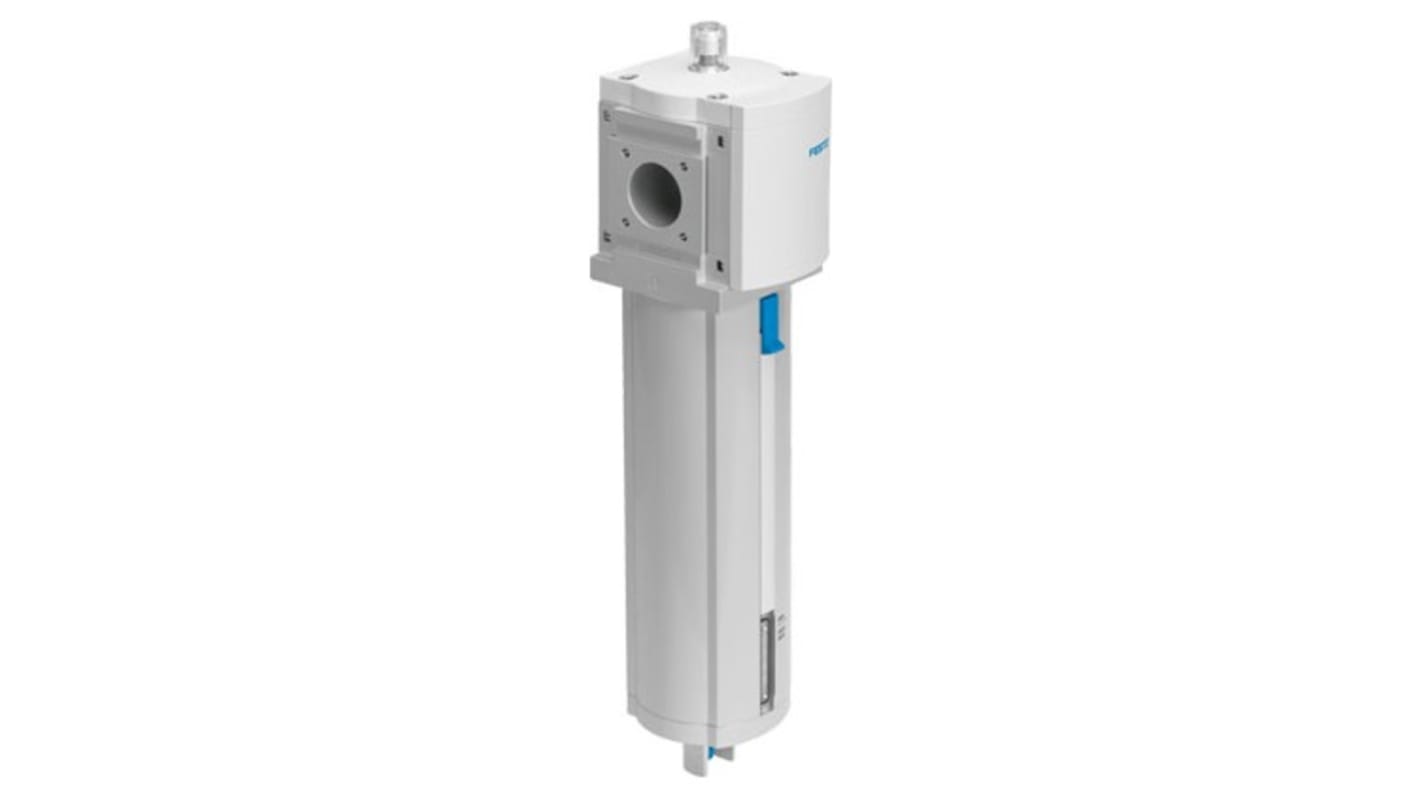

The Festo fine filter is designed to provide efficient filtration for compressed air, ensuring a clean and reliable output. With a filtration grade of 1 μm and a filter efficiency of 99.99%, this filter is perfect for maintaining air purity in various app
Fully automatic condensate drain for hassle-free operation
Corrosion resistance class CRC 2 for durability in various environments
Material housing made of die-cast aluminium for reliable performance
Max. standard flow rate of 7000 l/min for efficient air filtration
Residual oil content of 0.5 mg/m³ for cleaner compressed air
Corrosion resistance class CRC 2 for durability in various environments
Material housing made of die-cast aluminium for reliable performance
Max. standard flow rate of 7000 l/min for efficient air filtration
Residual oil content of 0.5 mg/m³ for cleaner compressed air
