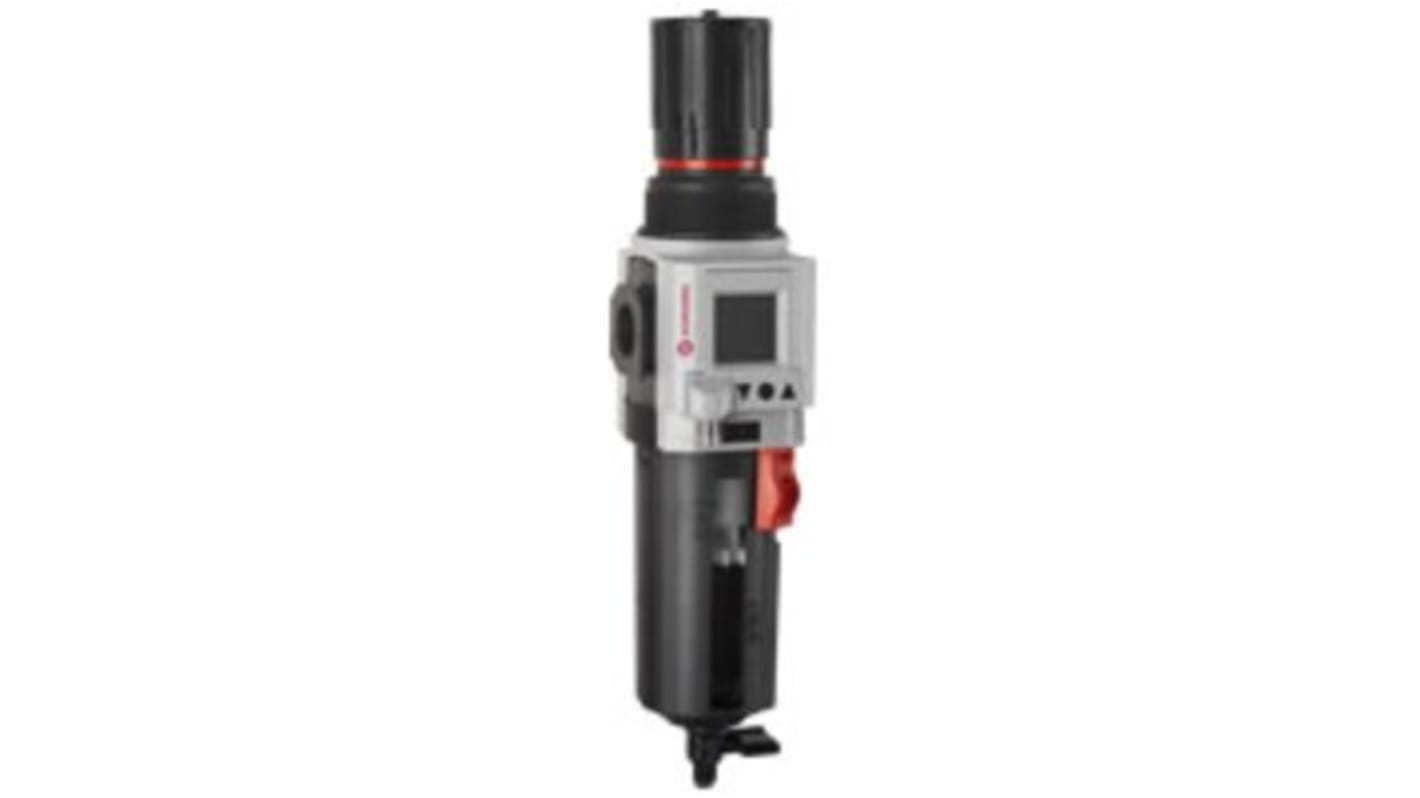

Norgren Excelon Plus series 40 μm 1/2 in G 20 bar Pneumatic Filter 100 dm³/s max with Automatic drain
- RS Stock No.:
- 212-9109
- Mfr. Part No.:
- B84G-4GK-AD3-RME
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£191.12
(exc. VAT)
£229.34
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £191.12 |
| 5 + | £183.48 |
*price indicative
- RS Stock No.:
- 212-9109
- Mfr. Part No.:
- B84G-4GK-AD3-RME
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Filtration Size | 40μm | |
| Product Type | Pneumatic Filter | |
| Port Size | 1/2 in G | |
| Connection Thread Standard | ISO G Parallel/PTF | |
| Drain Type | Automatic | |
| Series | Excelon Plus | |
| Maximum Flow Rate | 100dm³/s | |
| Seal Material | Chloroprene | |
| Maximum Operating Pressure | 20 bar | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | Atex 2014/34/EU II 2 GD Ex h IIC T6 Gb EX h IIIC T85°C Db excluding all versions with electronic pressure sensor | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Filtration Size 40μm | ||
Product Type Pneumatic Filter | ||
Port Size 1/2 in G | ||
Connection Thread Standard ISO G Parallel/PTF | ||
Drain Type Automatic | ||
Series Excelon Plus | ||
Maximum Flow Rate 100dm³/s | ||
Seal Material Chloroprene | ||
Maximum Operating Pressure 20 bar | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals Atex 2014/34/EU II 2 GD Ex h IIC T6 Gb EX h IIIC T85°C Db excluding all versions with electronic pressure sensor | ||
- COO (Country of Origin):
- GB
The IMI Norgren Excelon Plus B84G series general purpose filter regulator has a G1/2" size port with integrated electronic pressure sensor. The parameter adjustment via front screen buttons or accessed via I/O link.
1.4 in LCD display
Auto drain
Operating pressure = 10bar
Accuracy = 1.5%
Medium = compressed air
