SMC SFE series 0.01 μm 10 mm 1 bar Pneumatic Filter 200 L/min max
- RS Stock No.:
- 398-301
- Mfr. Part No.:
- SFE7D
- Brand:
- SMC
Subtotal (1 unit)*
£78.38
(exc. VAT)
£94.06
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.38 |
*price indicative
- RS Stock No.:
- 398-301
- Mfr. Part No.:
- SFE7D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Filter | |
| Filtration Size | 0.01μm | |
| Port Size | 10 mm | |
| Series | SFE | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Flow Rate | 200L/min | |
| Maximum Operating Pressure | 1 bar | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 45°C | |
| Standards/Approvals | ISO 10218-1, ISO 4414, IEC 60204-1, ISO 4413, ISO14644-1, RoHS | |
| Filter Type | Exhaust | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Filter | ||
Filtration Size 0.01μm | ||
Port Size 10 mm | ||
Series SFE | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Flow Rate 200L/min | ||
Maximum Operating Pressure 1 bar | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 45°C | ||
Standards/Approvals ISO 10218-1, ISO 4414, IEC 60204-1, ISO 4413, ISO14644-1, RoHS | ||
Filter Type Exhaust | ||

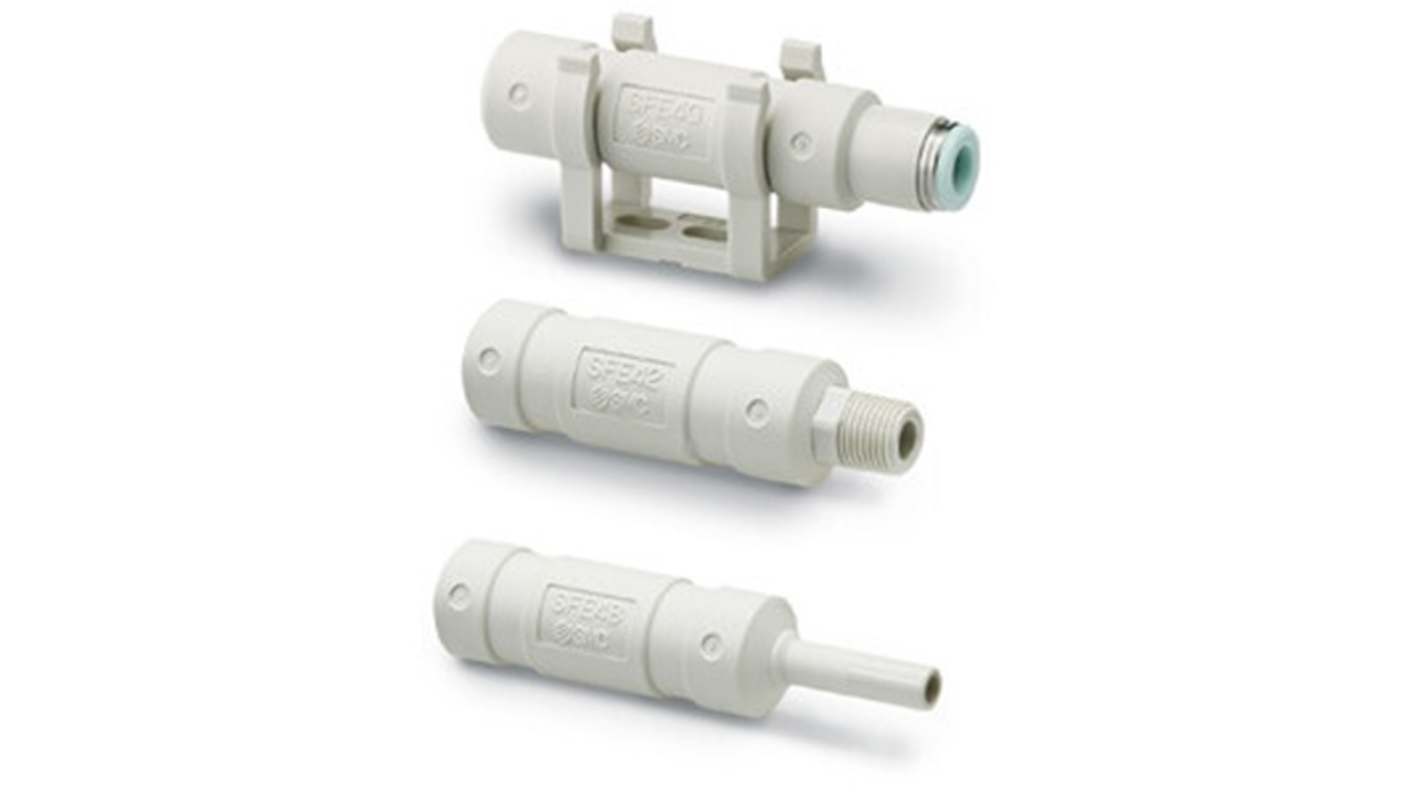

The SMC Clean Exhaust Filter combines the functionality of both a filter and a silencer in a single unit, offering efficient exhaust filtration while reducing noise. It provides 3 mounting variations, allowing for flexible installation depending on system requirements.
Improving system efficiency and noise control
