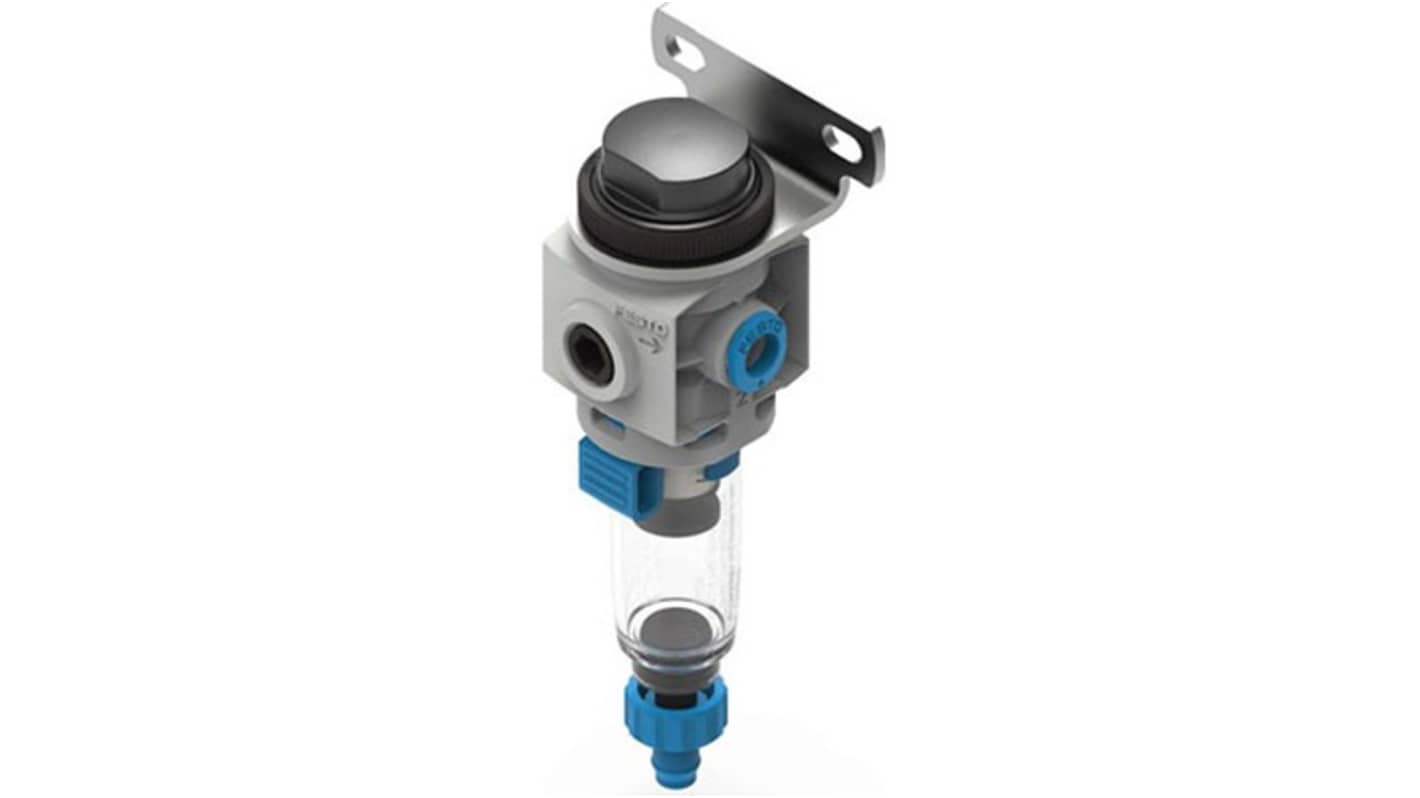

Festo MS2 series 5 μm M5 10 bar Filter 225 L/min max with Manual drain
- RS Stock No.:
- 342-138
- Mfr. Part No.:
- MS2-LF-M5-C-P-M-B
- Brand:
- Festo
Subtotal (1 unit)*
£28.82
(exc. VAT)
£34.58
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.82 |
*price indicative
- RS Stock No.:
- 342-138
- Mfr. Part No.:
- MS2-LF-M5-C-P-M-B
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Filter | |
| Filtration Size | 5μm | |
| Port Size | M5 | |
| Drain Type | Manual | |
| Series | MS2 | |
| Maximum Flow Rate | 225L/min | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Operating Pressure | 10 bar | |
| Standards/Approvals | RoHS-compliant | |
| Bowl Material | Polycarbonate | |
| Filter Type | Centrifugal Blower | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Filter | ||
Filtration Size 5μm | ||
Port Size M5 | ||
Drain Type Manual | ||
Series MS2 | ||
Maximum Flow Rate 225L/min | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Operating Pressure 10 bar | ||
Standards/Approvals RoHS-compliant | ||
Bowl Material Polycarbonate | ||
Filter Type Centrifugal Blower | ||
- COO (Country of Origin):
- HU
The Festo Sintered filter with centrifugal separator is engineered for optimal filtration in compressed air systems. Designed to effectively remove contaminants, it operates seamlessly within a wide pressure range, ensuring consistent performance in vertical installations. The unit's robust construction uses high alloy steel and NBR materials for enhanced durability. With a compact footprint and multiple mounting options, including front panel and in line configurations, it integrates effortlessly into various setups. Furthermore, the cleanroom class compliance and low corrosion resistance class make it suitable for sensitive applications within demanding environments.
Delivers a standard nominal flow rate of 225 l/min for efficient air handling
Operating medium compatibility includes both compressed air and inert gases
Manually rotating condensate drains simplify maintenance and operational convenience
Constructed from RoHS compliant materials which ensuring environmental responsibility
