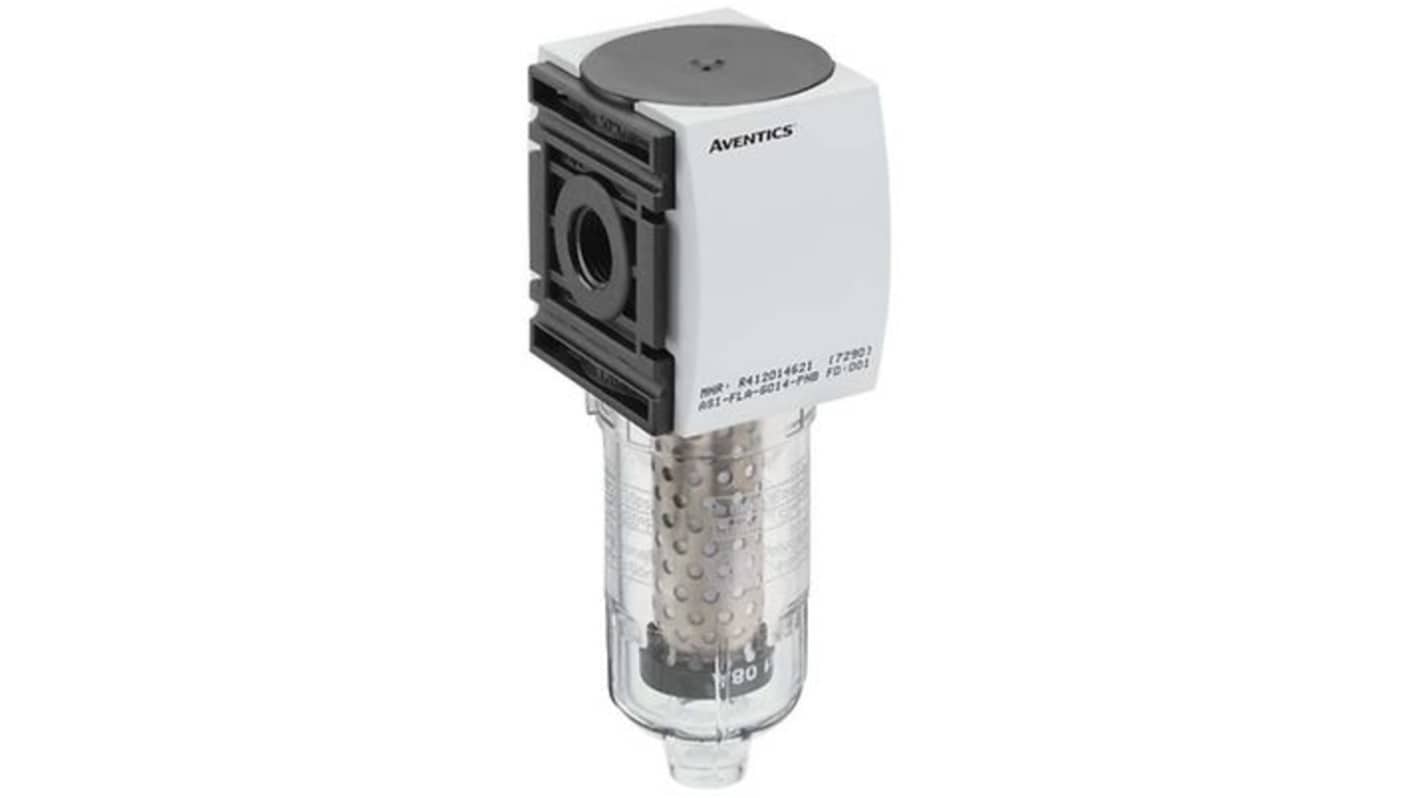

EMERSON – AVENTICS AS1 series 0.01 μm 1/4 in G 12 bar Filter 350 L/min max
- RS Stock No.:
- 299-271
- Mfr. Part No.:
- R412014621
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£127.88
(exc. VAT)
£153.46
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £127.88 |
*price indicative
- RS Stock No.:
- 299-271
- Mfr. Part No.:
- R412014621
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Filter | |
| Filtration Size | 0.01μm | |
| Port Size | 1/4 in G | |
| Connection Thread Standard | G | |
| Series | AS1 | |
| Maximum Flow Rate | 350L/min | |
| Seal Material | Acrylonitrile Butadiene Rubber | |
| Maximum Operating Pressure | 12 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | ISO 8573-1:2010 (- :-: 1) | |
| Filter Type | Activated Carbon | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Filter | ||
Filtration Size 0.01μm | ||
Port Size 1/4 in G | ||
Connection Thread Standard G | ||
Series AS1 | ||
Maximum Flow Rate 350L/min | ||
Seal Material Acrylonitrile Butadiene Rubber | ||
Maximum Operating Pressure 12 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals ISO 8573-1:2010 (- :-: 1) | ||
Filter Type Activated Carbon | ||
Bowl Material Polycarbonate | ||
RoHS Status: Exempt
The Aventics active carbon filter Series AS1 FLA 1 is a modular and versatile maintenance unit for universal application. This series offers compact dimensions, high efficiency, light weight, and ease of use. The Series AS guarantees reliability, safety, and efficiency with simplified assembly and maintenance efforts.
Working pressure Minimum 0 bar
Working pressure max 12 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C
