RS Better World
Festo Pneumatic Cylinder DFSP-Q-16-10-DF-PA DFSP 10 bar
- RS Stock No.:
- 271-7021
- Mfr. Part No.:
- DFSP-Q-16-10-DF-PA
- Brand:
- Festo
Subtotal (1 unit)*
£108.30
(exc. VAT)
£129.96
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £108.30 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
- RS Stock No.:
- 271-7021
- Mfr. Part No.:
- DFSP-Q-16-10-DF-PA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Cylinder | |
| Bore Size | 16mm | |
| Stroke Length | 10mm | |
| Maximum Operating Pressure | 10 bar | |
| Series | DFSP | |
| Rod Diameter | 16mm | |
| Mount Type | Through Hole | |
| Cushioning Type | Elastic | |
| Body Material | High Alloy Stainless Steel, Wrought Aluminium Alloy | |
| Piston Rod Thread Size | M3 | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Gender | Female | |
| Action Type | Double Acting | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010 (7:4:4), RoHS-compliant, VDMA24364-B1/B2-L | |
| Better World Claim | Repairable by the End User | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Cylinder | ||
Bore Size 16mm | ||
Stroke Length 10mm | ||
Maximum Operating Pressure 10 bar | ||
Series DFSP | ||
Rod Diameter 16mm | ||
Mount Type Through Hole | ||
Cushioning Type Elastic | ||
Body Material High Alloy Stainless Steel, Wrought Aluminium Alloy | ||
Piston Rod Thread Size M3 | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Gender Female | ||
Action Type Double Acting | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010 (7:4:4), RoHS-compliant, VDMA24364-B1/B2-L | ||
Better World Claim Repairable by the End User | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE

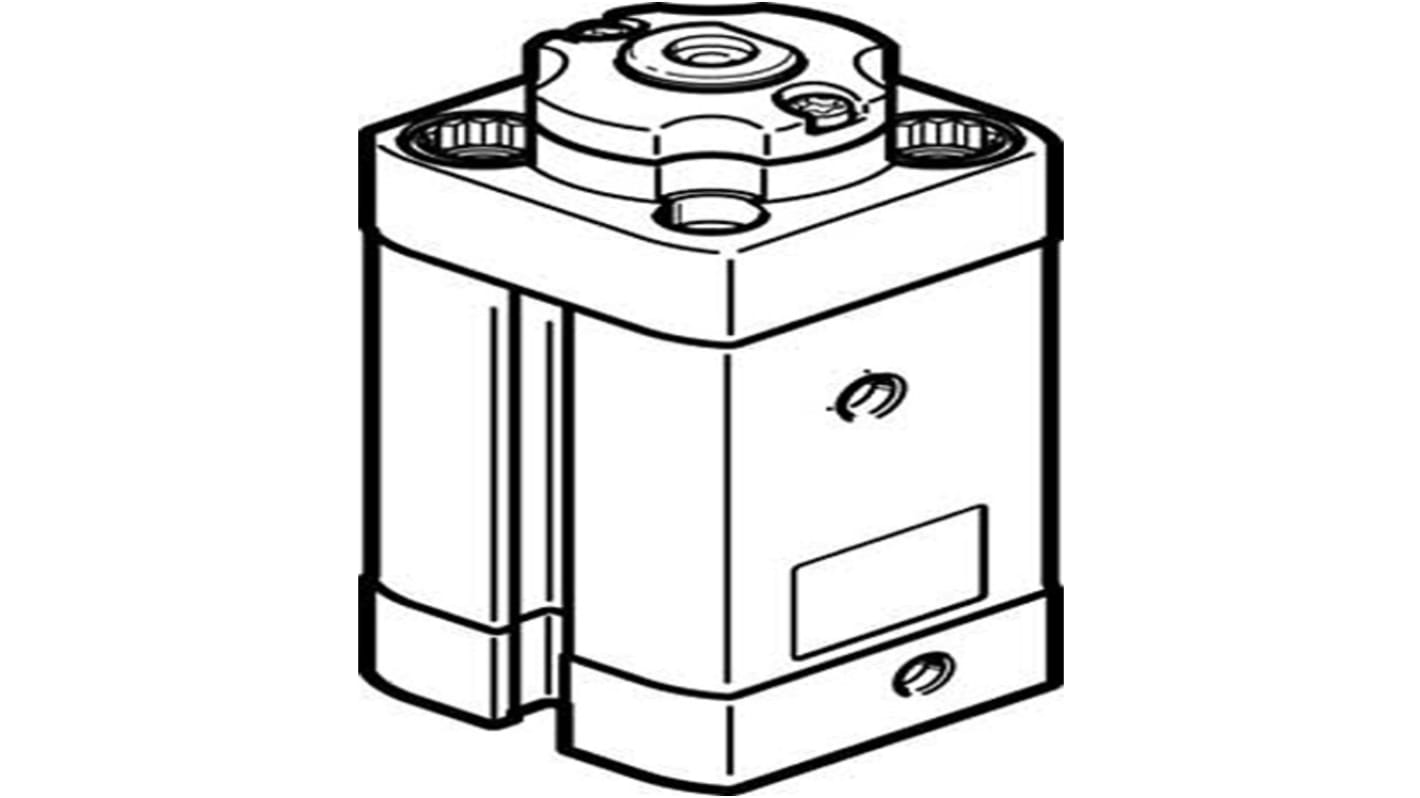

The Festo Stopper cylinder is used to safely stop movements of large loads in machines or work piece carriers, pallets and packages in the event of an emergency off or pressure failure. It allows sudden braking of the conveyed goods via piston rod.
Compact design
Long service life
