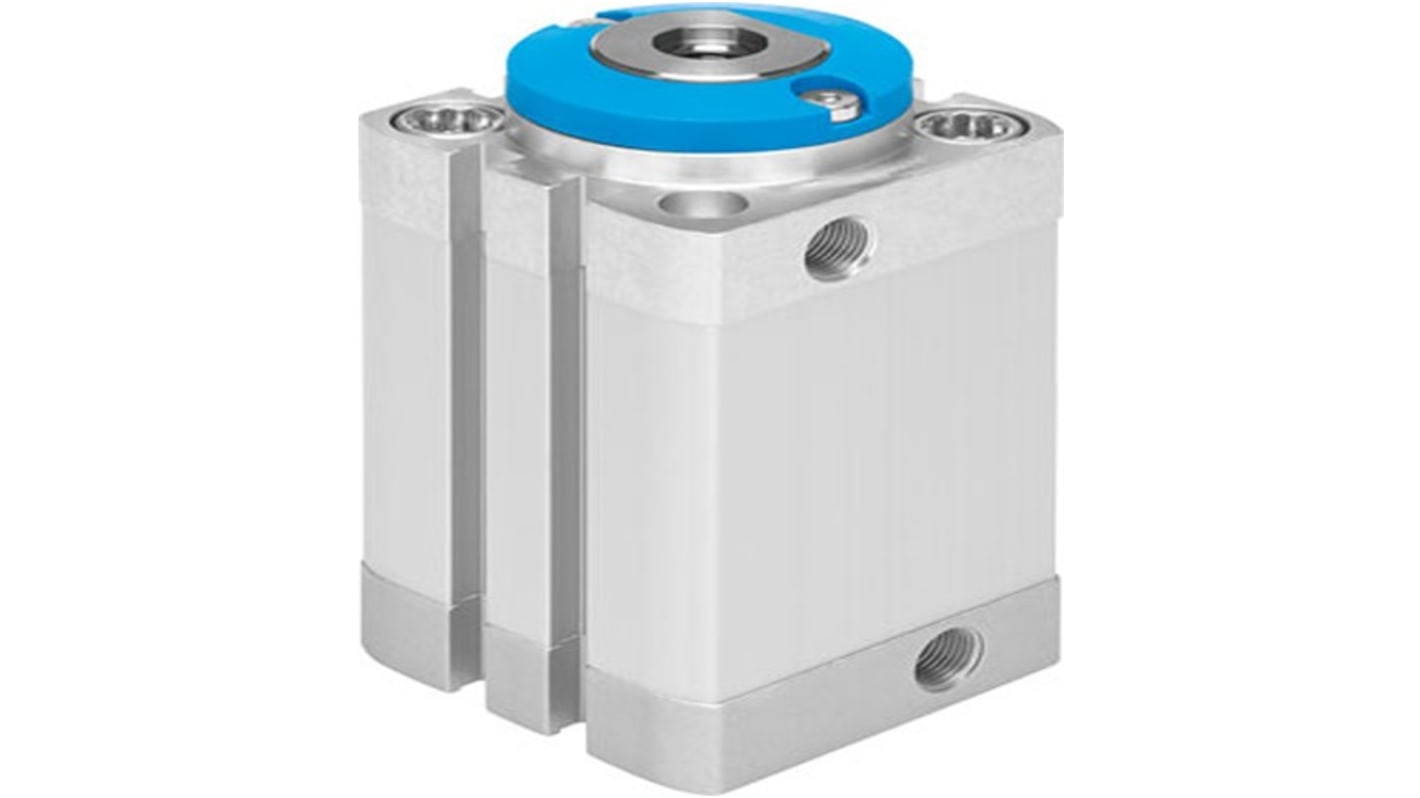

Festo Pneumatic Cylinder DFSP-Q-32-25-DF-PA DFSP 10 bar
- RS Stock No.:
- 271-7037
- Mfr. Part No.:
- DFSP-Q-32-25-DF-PA
- Brand:
- Festo
Subtotal (1 unit)*
£142.00
(exc. VAT)
£170.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £142.00 |
*price indicative
- RS Stock No.:
- 271-7037
- Mfr. Part No.:
- DFSP-Q-32-25-DF-PA
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Cylinder | |
| Bore Size | 32mm | |
| Maximum Operating Pressure | 10 bar | |
| Stroke Length | 25mm | |
| Series | DFSP | |
| Rod Diameter | 32mm | |
| Mount Type | Through Hole | |
| Cushioning Type | Elastic | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Action Type | Double Acting | |
| Piston Rod Thread Size | M6 | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Gender | Female | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 8573-1:2010 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Cylinder | ||
Bore Size 32mm | ||
Maximum Operating Pressure 10 bar | ||
Stroke Length 25mm | ||
Series DFSP | ||
Rod Diameter 32mm | ||
Mount Type Through Hole | ||
Cushioning Type Elastic | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Action Type Double Acting | ||
Piston Rod Thread Size M6 | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Gender Female | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 8573-1:2010 | ||
- COO (Country of Origin):
- DE
The Festo Stopper cylinder is used to safely stop movements of large loads in machines or work piece carriers, pallets and packages in the event of an emergency off or pressure failure. It allows sudden braking of the conveyed goods via piston rod.
Compact design
Long service life
