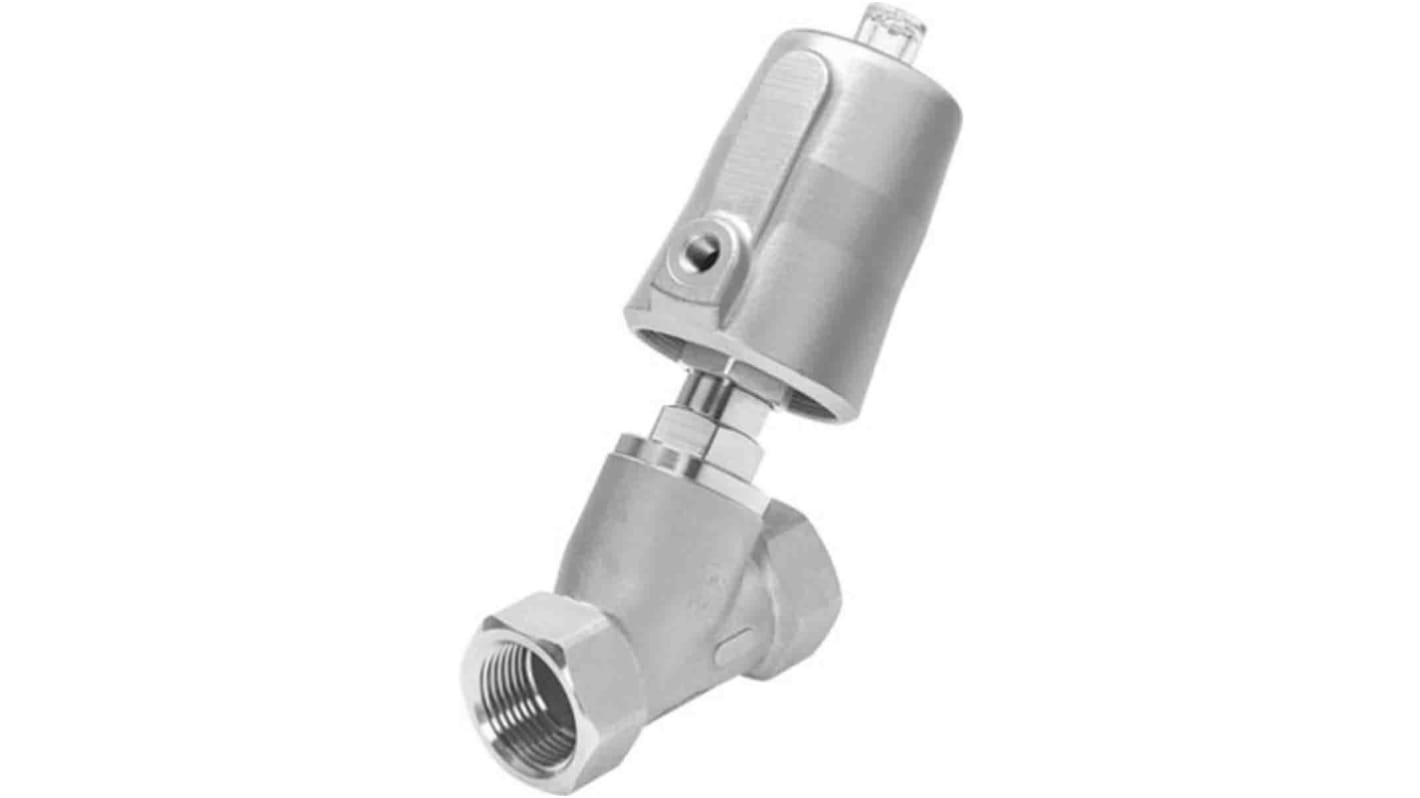

Festo Angle Seat type Pneumatic Actuated Valve, 10 bar, NPT, Female 1/8 in
- RS Stock No.:
- 203-7181
- Mfr. Part No.:
- VZXF-L-M22C-M-B-N114-310-M1-V4V4T-80-10
- Brand:
- Festo
Subtotal (1 unit)*
£805.40
(exc. VAT)
£966.48
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £805.40 |
*price indicative
- RS Stock No.:
- 203-7181
- Mfr. Part No.:
- VZXF-L-M22C-M-B-N114-310-M1-V4V4T-80-10
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Inlet Connection Type | Threaded | |
| Valve Type | Angle Seat | |
| Default Valve Position | NC | |
| Inlet Port Size | 1/8 in | |
| Return Type | Spring | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 1 to 1/4 in | |
| Maximum Operating Pressure | 10 bar | |
| Inlet Thread Standard | NPT | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Valve Material | Stainless Steel Casting | |
| Outlet Thread Standard | NPT | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Inlet Connection Type Threaded | ||
Valve Type Angle Seat | ||
Default Valve Position NC | ||
Inlet Port Size 1/8 in | ||
Return Type Spring | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 1 to 1/4 in | ||
Maximum Operating Pressure 10 bar | ||
Inlet Thread Standard NPT | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Valve Material Stainless Steel Casting | ||
Outlet Thread Standard NPT | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals RoHS | ||
The Festo VZXF series modular pneumatically actuated angle seat valve is made of red brass. It has poppet valve structure with piston actuator and closed position NPT thread. The maximum medium pressure is 20 bar.
Line connection = NPT 3/4
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
