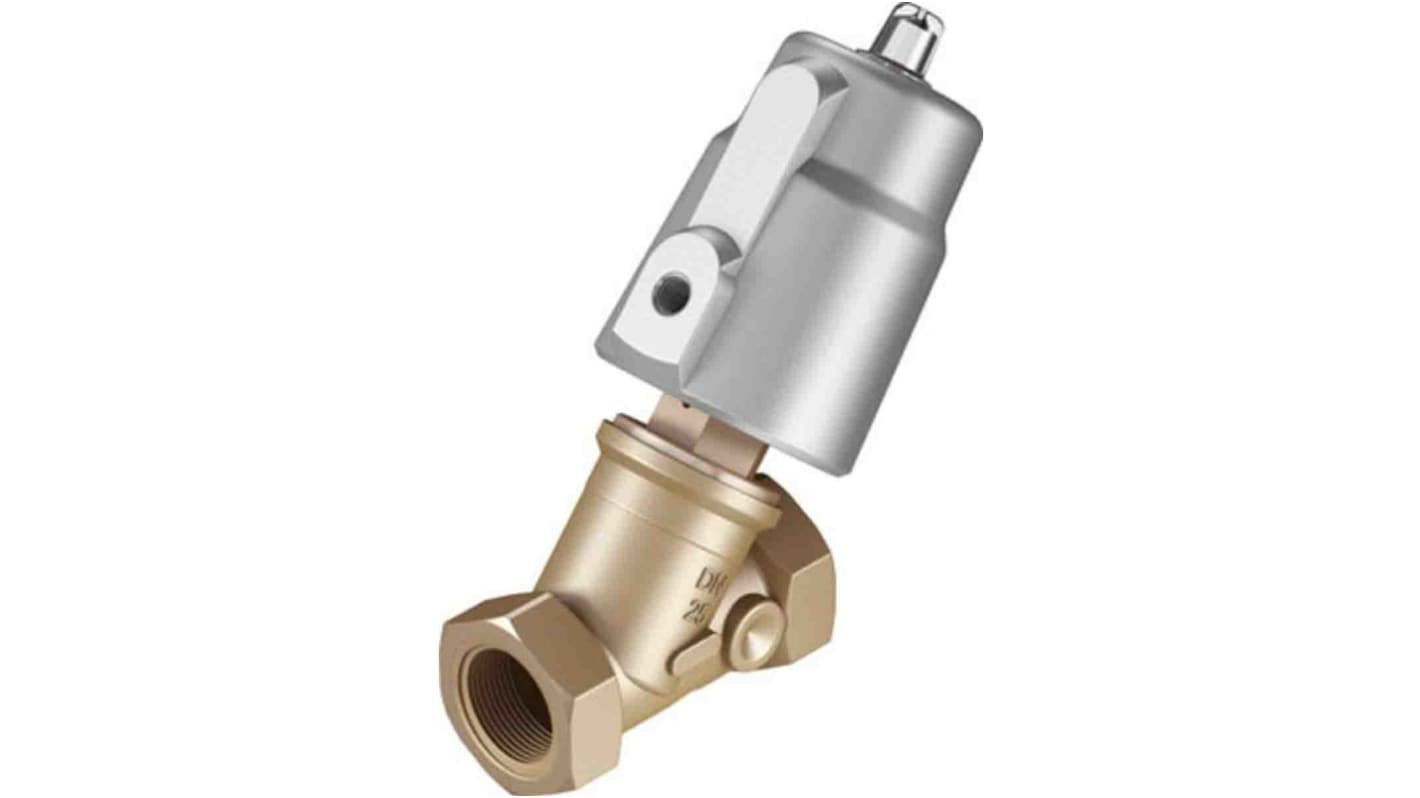

Festo Angle Seat type Pneumatic Actuated Valve, 16 bar, DIN ISO 228, Female 43 mm
- RS Stock No.:
- 203-7162
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G2-430-M1-H3ALT-80-16
- Brand:
- Festo
Subtotal (1 unit)*
£507.69
(exc. VAT)
£609.23
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £507.69 |
*price indicative
- RS Stock No.:
- 203-7162
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G2-430-M1-H3ALT-80-16
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Inlet Port Size | 43 mm | |
| Default Valve Position | NC | |
| Return Type | Spring | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 2 in | |
| Maximum Operating Pressure | 16 bar | |
| Inlet Thread Standard | DIN ISO 228 | |
| Inlet Port Gender | Female | |
| Valve Material | Gunmetal (Red Brass) | |
| Minimum Operating Temperature | -40°C | |
| Outlet Thread Standard | G | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | EU Directive pressure devices, Conforms to RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Inlet Port Size 43 mm | ||
Default Valve Position NC | ||
Return Type Spring | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 2 in | ||
Maximum Operating Pressure 16 bar | ||
Inlet Thread Standard DIN ISO 228 | ||
Inlet Port Gender Female | ||
Valve Material Gunmetal (Red Brass) | ||
Minimum Operating Temperature -40°C | ||
Outlet Thread Standard G | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals EU Directive pressure devices, Conforms to RoHS | ||
The Festo VZXF series modular pneumatically actuated angle seat valve is made of red brass. It has poppet valve structure with piston actuator and closed position NPT thread. The maximum medium pressure is 8 bar.
Line connection = NPT1 1/2
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
