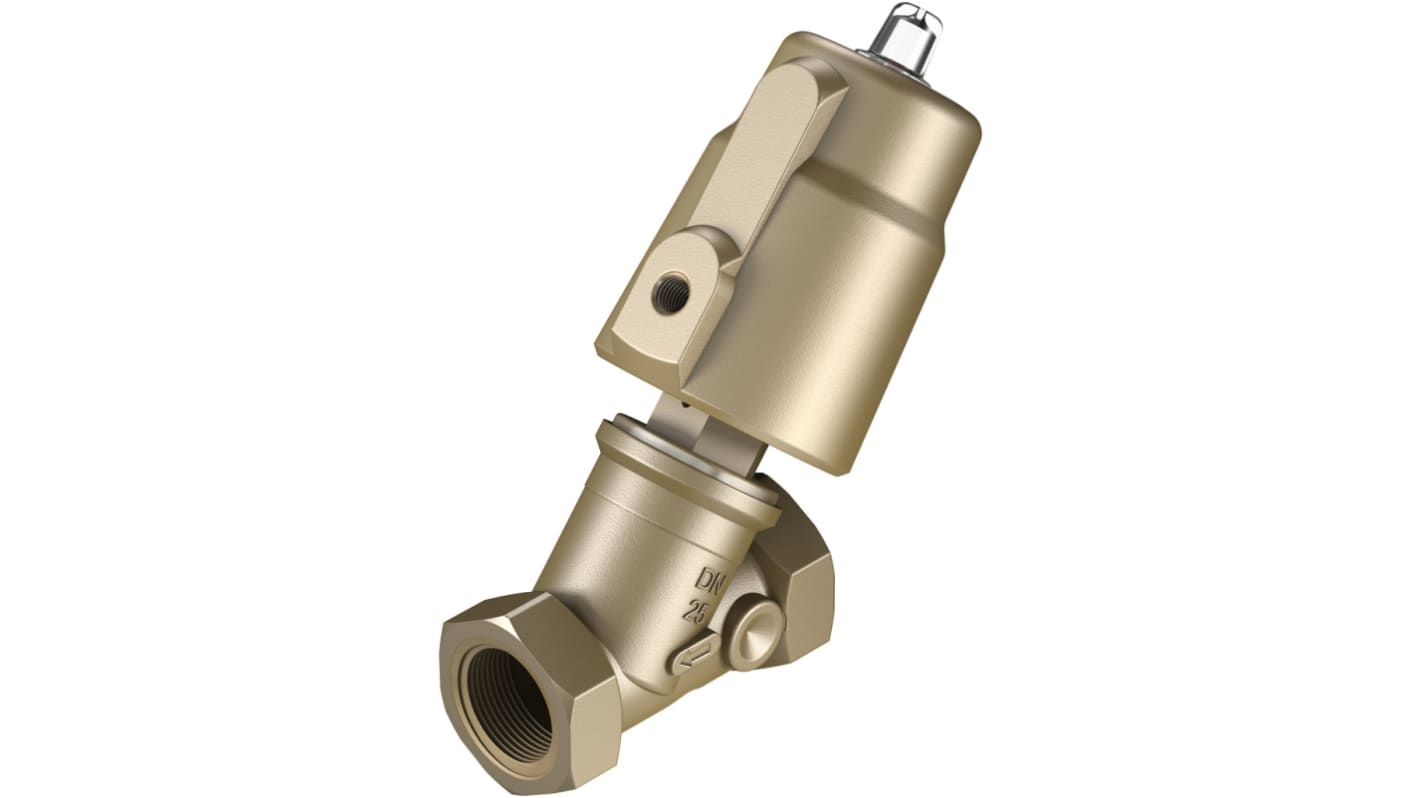

Festo Angle Seat type Pneumatic Actuated Valve, 16 bar, Female 1/8 in
- RS Stock No.:
- 203-7100
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G1-230-H3B1-50-16
- Brand:
- Festo
Subtotal (1 unit)*
£137.11
(exc. VAT)
£164.53
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £137.11 |
*price indicative
- RS Stock No.:
- 203-7100
- Mfr. Part No.:
- VZXF-L-M22C-M-A-G1-230-H3B1-50-16
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Valve Type | Angle Seat | |
| Inlet Connection Type | Threaded | |
| Default Valve Position | NC | |
| Inlet Port Size | 1/8 in | |
| Return Type | Spring | |
| Outlet Connection Type | Threaded | |
| Outlet Port Size | 1 in | |
| Maximum Operating Pressure | 16 bar | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -10°C | |
| Outlet Thread Standard | G | |
| Valve Material | Gunmetal (Red Brass) | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Valve Type Angle Seat | ||
Inlet Connection Type Threaded | ||
Default Valve Position NC | ||
Inlet Port Size 1/8 in | ||
Return Type Spring | ||
Outlet Connection Type Threaded | ||
Outlet Port Size 1 in | ||
Maximum Operating Pressure 16 bar | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -10°C | ||
Outlet Thread Standard G | ||
Valve Material Gunmetal (Red Brass) | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Festo Pneumatic Actuated Valve, 16 Bar Maximum Working Pressure, 1/8 in Thread Size - VZXF-L-M22C-M-A-G1-230-H3B1-50-16, Numeric Part Number: 1002504
This Festo pneumatic actuated valve, with the technical specifications of an angle seat and G1 thread, is an essential component for various industrial applications. With its NC valve position and spring return feature, it ensures reliable performance under high-pressure conditions.
Features & Benefits
• Spring return feature for automatic valve closure
• Maximum working pressure of 16 Bar for industrial-grade applications
• 1/8 inch thread size for easy installation
• Angle seat design for optimal flow control
• G thread standard for compatibility with industry-standard fittings
Applications
• Control of steam and inert gases in pneumatic systems
• Ideal for use in industrial automation and process control systems
• Suitable for applications requiring precise flow control
• Essential for high-traffic pneumatic systems
Can it handle high-pressure applications?
Yes, this pneumatic actuated valve is designed to withstand a maximum working pressure of 16 Bar, making it suitable for industrial use.
Will it fit standard industry fittings?
With its G1 thread standard, this valve is compatible with a wide range of industry-standard fittings for seamless integration.
Is it suitable for controlling different types of gases?
Yes, this angle seat valve is ideal for controlling steam, inert gases, and compressed air in various applications.
