- RS Stock No.:
- 203-7058
- Mfr. Part No.:
- VZXF-L-M22C-M-B-N1-240-M1-V4V4T-50-10
- Brand:
- Festo
Available to back order for despatch 28/05/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£260.14
(exc. VAT)
£312.17
(inc. VAT)
Units | Per unit |
1 + | £260.14 |
- RS Stock No.:
- 203-7058
- Mfr. Part No.:
- VZXF-L-M22C-M-B-N1-240-M1-V4V4T-50-10
- Brand:
- Festo
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

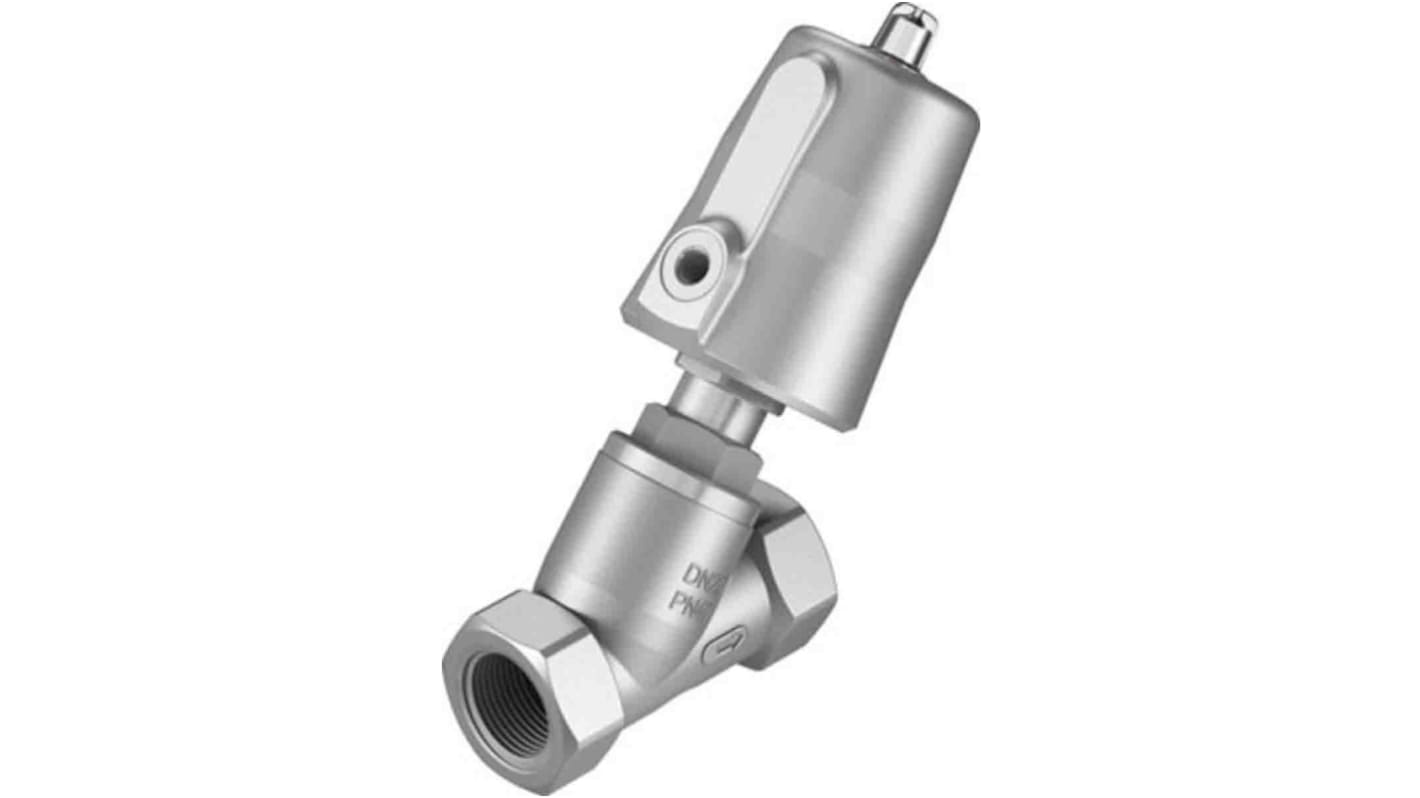

The Festo VZXF series modular pneumatically actuated angle seat valve is made of red brass. It has poppet valve structure with piston actuator and closed position G thread. The maximum medium pressure is 9 bar.
Line connection = G1 1/4
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
Type of actuation = pneumatic
Assembly position = any
Mounting type = line installation
Specifications
Attribute | Value |
---|---|
Thread Size | 1/8in |
Valve Type | Angle Seat |
Default Valve Position | NC |
Return Type | Spring |
Thread Standard | G |
Thread Standard 2 | NPT |
Thread Size 2 | 1in |
Maximum Working Pressure | 10 bar |
