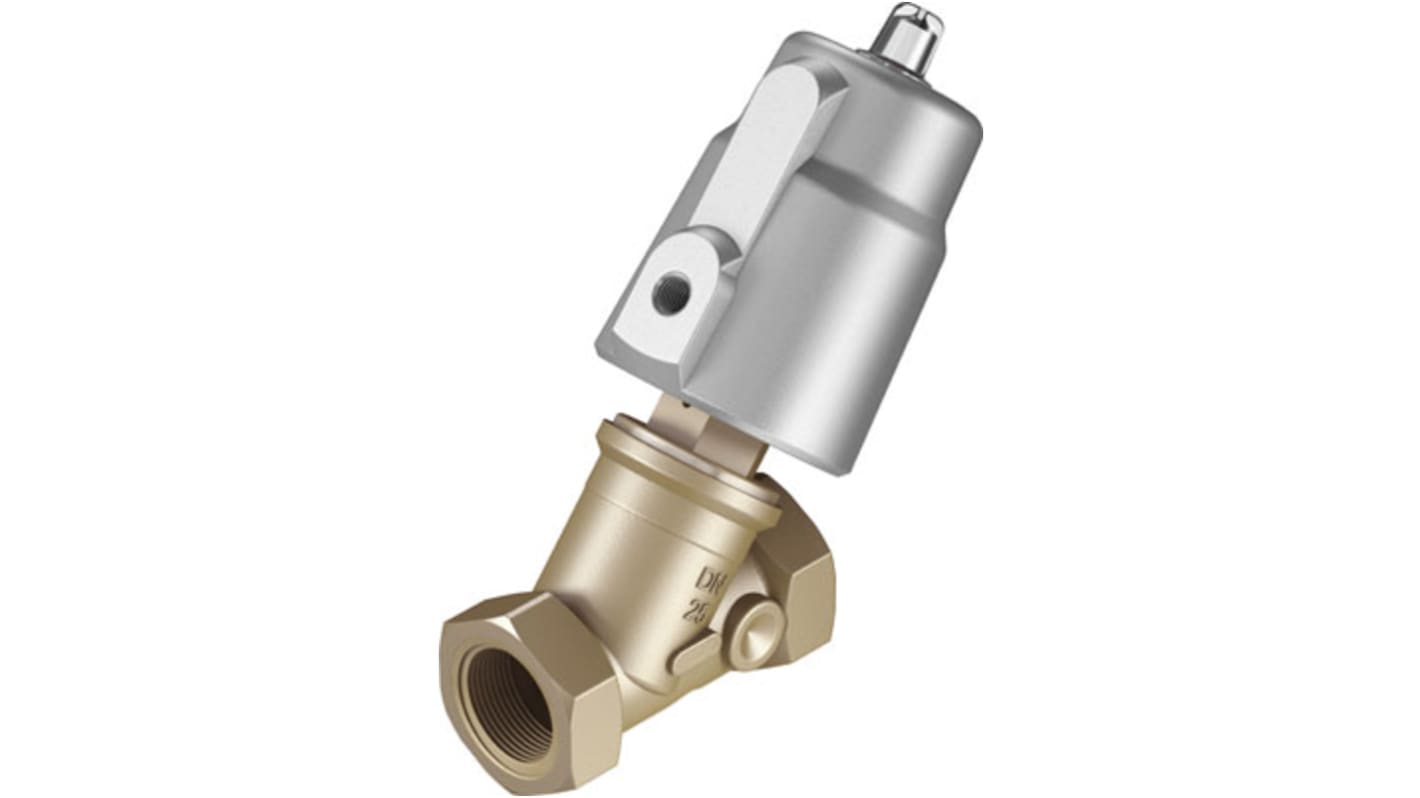

Festo Angle Seat type Pneumatic Actuated Valve, 10 bar, G, Female 1/8 in
- RS Stock No.:
- 163-7377
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G112-350-M1-H3ALT-80-8
- Brand:
- Festo
Subtotal (1 unit)*
£374.25
(exc. VAT)
£449.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £374.25 |
*price indicative
- RS Stock No.:
- 163-7377
- Mfr. Part No.:
- VZXF-L-M22C-M-B-G112-350-M1-H3ALT-80-8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Actuated Valve | |
| Inlet Connection Type | G 1/8 | |
| Valve Type | Angle Seat | |
| Default Valve Position | 2/2-Way Seat Valve | |
| Inlet Port Size | 1/8 in | |
| Outlet Connection Type | G 1/8 | |
| Return Type | Mechanical Spring | |
| Outlet Port Size | 1/8 in | |
| Inlet Thread Standard | G | |
| Maximum Operating Pressure | 10 bar | |
| Inlet Port Gender | Female | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -10°C | |
| Valve Material | Gunmetal (Red Brass) | |
| Outlet Thread Standard | G | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Actuated Valve | ||
Inlet Connection Type G 1/8 | ||
Valve Type Angle Seat | ||
Default Valve Position 2/2-Way Seat Valve | ||
Inlet Port Size 1/8 in | ||
Outlet Connection Type G 1/8 | ||
Return Type Mechanical Spring | ||
Outlet Port Size 1/8 in | ||
Inlet Thread Standard G | ||
Maximum Operating Pressure 10 bar | ||
Inlet Port Gender Female | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -10°C | ||
Valve Material Gunmetal (Red Brass) | ||
Outlet Thread Standard G | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
Festo Process Valve
The Festo VZFX angle is a 1-1/2in G connection pneumatic operated process valve is an innovative product MADE of gunmetal process valve with stainless steel, brass, and aluminium actuators for operating pressure up to 40bar. It is perfect for all tasks involving the control of media flows, whether contaminated or highly viscous. The VZXF controls gaseous or fluid material flows in both closed and open circuits.
Features and Benefits
• Easy to clean design
• Nominal process valve pressure is 16bar
• Poppet valve with spring return
• Temperature ranges between -40°C and 200°C
