SKF SY 40 TF/VA228 Pillow Block Bearing -, 40 mm ID
- RS Stock No.:
- 213-2043
- Mfr. Part No.:
- SY 40 TF/VA228
- Brand:
- SKF
Subtotal (1 unit)*
£321.26
(exc. VAT)
£385.51
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £321.26 |
*price indicative
- RS Stock No.:
- 213-2043
- Mfr. Part No.:
- SY 40 TF/VA228
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 40mm | |
| Product Type | Pillow Block Bearing | |
| Material | Steel | |
| Static Load Rating | 19kN | |
| Centre Height | 49.2mm | |
| Locking Type | Set Screw | |
| Mount Hole Size | 14 mm | |
| Length | 175mm | |
| Dynamic Load Rating | 30700kN | |
| Depth | 48mm | |
| End Type | Open | |
| Mount Hole Centre-to-Centre | 135.5mm | |
| Number of Bolts | 2 | |
| Bore Type | Cylindrical | |
| Standards/Approvals | No | |
| Series | SY | |
| Height | 99mm | |
| Limiting Speed | 150rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Product Type Pillow Block Bearing | ||
Material Steel | ||
Static Load Rating 19kN | ||
Centre Height 49.2mm | ||
Locking Type Set Screw | ||
Mount Hole Size 14 mm | ||
Length 175mm | ||
Dynamic Load Rating 30700kN | ||
Depth 48mm | ||
End Type Open | ||
Mount Hole Centre-to-Centre 135.5mm | ||
Number of Bolts 2 | ||
Bore Type Cylindrical | ||
Standards/Approvals No | ||
Series SY | ||
Height 99mm | ||
Limiting Speed 150rpm | ||

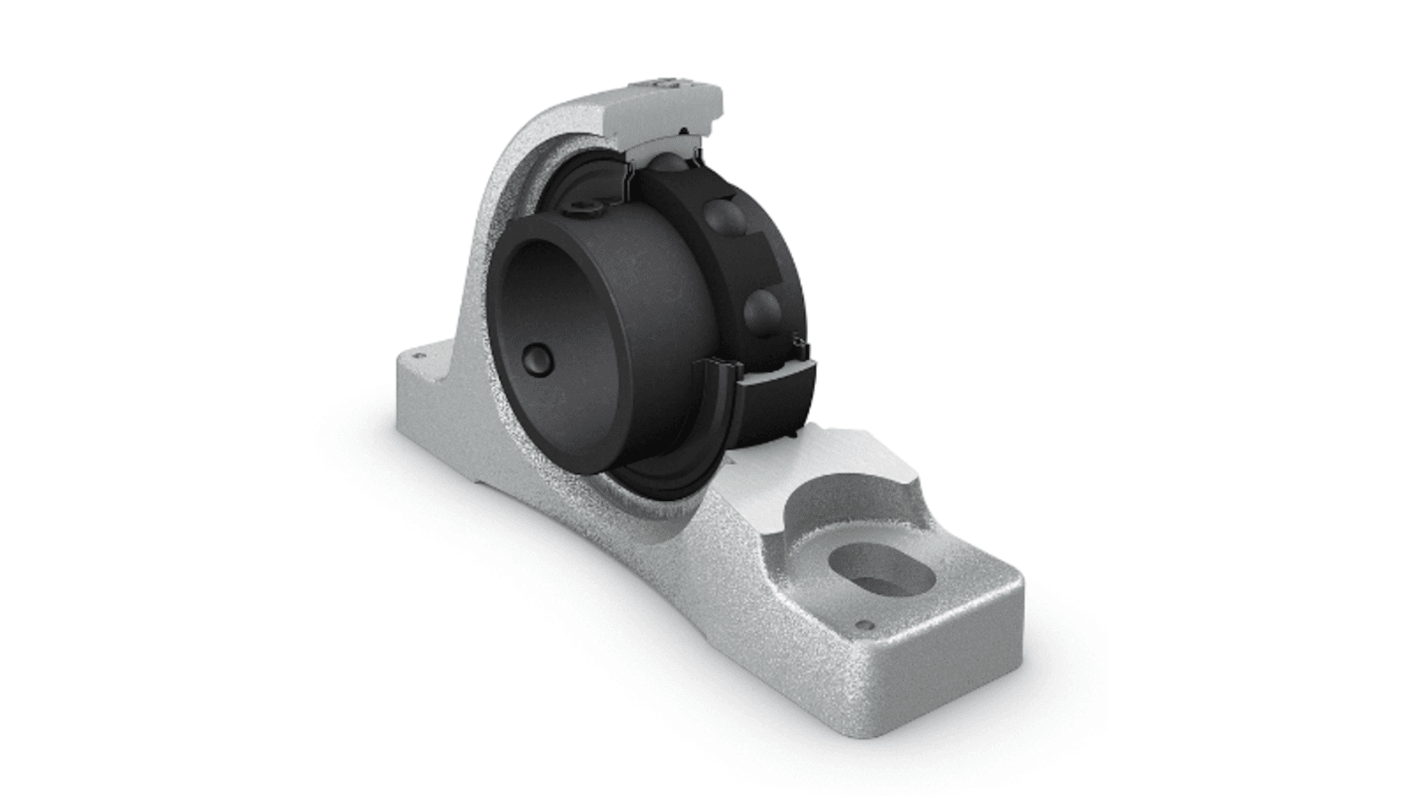

The SKF SY design pillow (Plummer y-bearings) block ball bearing units consist of an insert bearing mounted in a housing which can be bolted to support surface. The insert bearing unit has 40mm inside diameter. It is based on sealed deep groove ball bearings in the 62 and 63 series but have a convex outer ring and in most cases an extended inner ring with a specific locking device, enabling quick and easy mounting onto the shaft.
Can withstand sufficient torque as per the industry standards for mounting purposes
Availability of appropriate seals and end covers
Dimensions are as per the suitable application as prescribed by the manufacturer
Uses Bearing Steel as material
Has a cylindrical type bore
