SKF SY 40 TR Pillow Block Bearing -, 40mm ID
- RS Stock No.:
- 213-2044
- Mfr. Part No.:
- SY 40 TR
- Brand:
- SKF
Subtotal (1 unit)*
£76.91
(exc. VAT)
£92.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £76.91 |
*price indicative
- RS Stock No.:
- 213-2044
- Mfr. Part No.:
- SY 40 TR
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 40mm | |
Bearing Unit Type | Pillow Block | |
Material | Cast Iron, Steel | |
Centre Height | 49.2mm | |
Length | 203mm | |
Overall Height | 99mm | |
Mount Hole Centre-to-Centre | 135.51mm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Bearing Unit Type Pillow Block | ||
Material Cast Iron, Steel | ||
Centre Height 49.2mm | ||
Length 203mm | ||
Overall Height 99mm | ||
Mount Hole Centre-to-Centre 135.51mm | ||
- COO (Country of Origin):
- IT

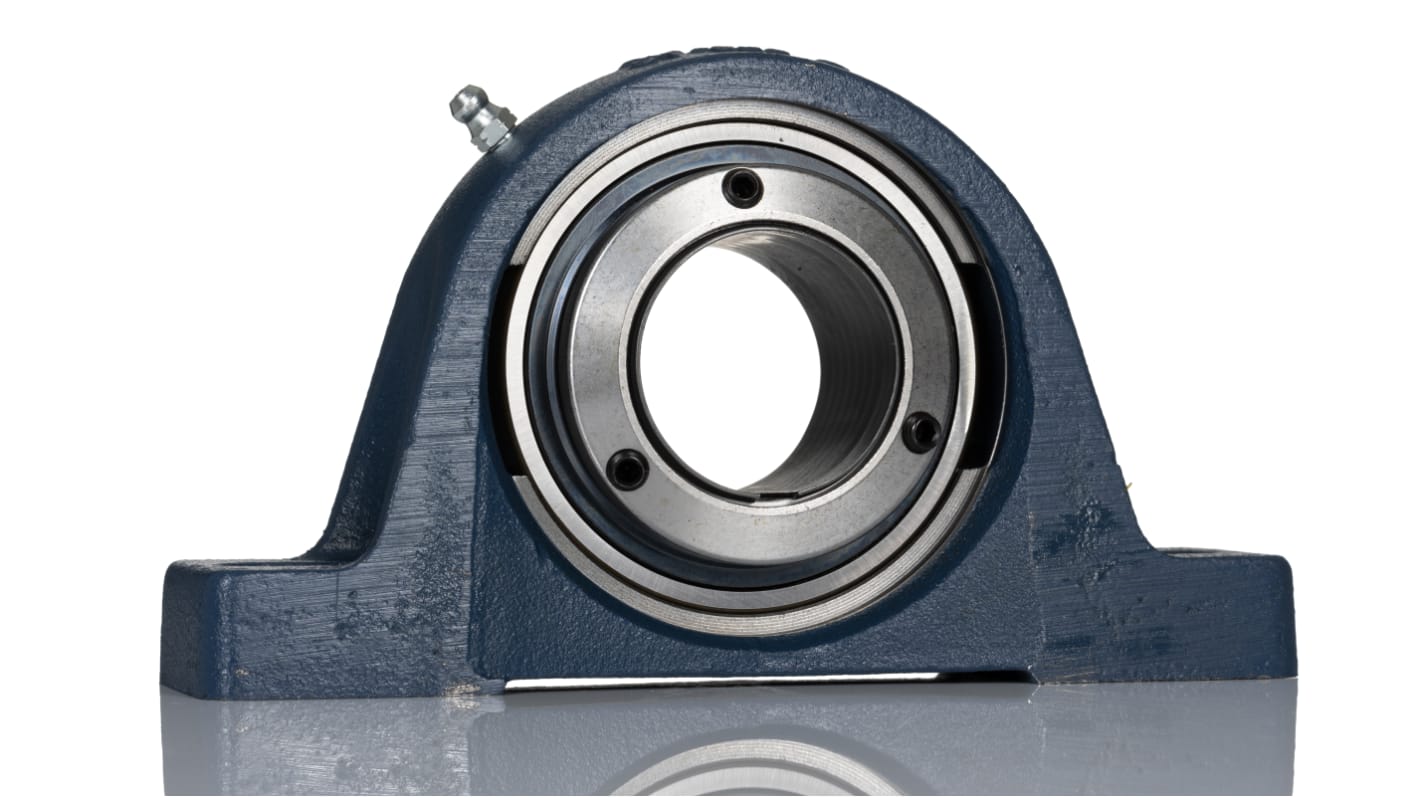

SKF Pillow Block Bearing, Cast Iron Housing, 40mm ID, 49.2mm Centre Height - SY 40 TR
When an axle needs propping up, lean on this pillow block bearing from SKF. Combining a metal stand and a ball bearing, it helps to hold up shafts and aids their continuous rotation in both directions. Designed with a limiting speed of 2800r/min, it's handy for applications such as conveyors, cranes and fans. The stand has cast iron construction, giving it a high compression strength and effective abrasion resistance. This also lets it absorb energy and dampen vibrations.
Features & Benefits
• Boltholes on the housing make it easy to mount on surfaces
• Comes as a complete unit to minimise assembly time
• Seals and flingers on both sides to keep contaminants out
• Inner ring extends out of the housing to bolster support, holding dynamic loads up to 30.7kN
• Comes as a complete unit to minimise assembly time
• Seals and flingers on both sides to keep contaminants out
• Inner ring extends out of the housing to bolster support, holding dynamic loads up to 30.7kN
Applications
• HVAC systems
• Assembly lines
• Agricultural machinery
• Waste management plants
• Assembly lines
• Agricultural machinery
• Waste management plants
Is this pillow block bearing already lubricated?
Yes, the unit comes pre-greased to speed up your installation. A relubrication hole means you can top this up as necessary to keep your machines turning freely.
