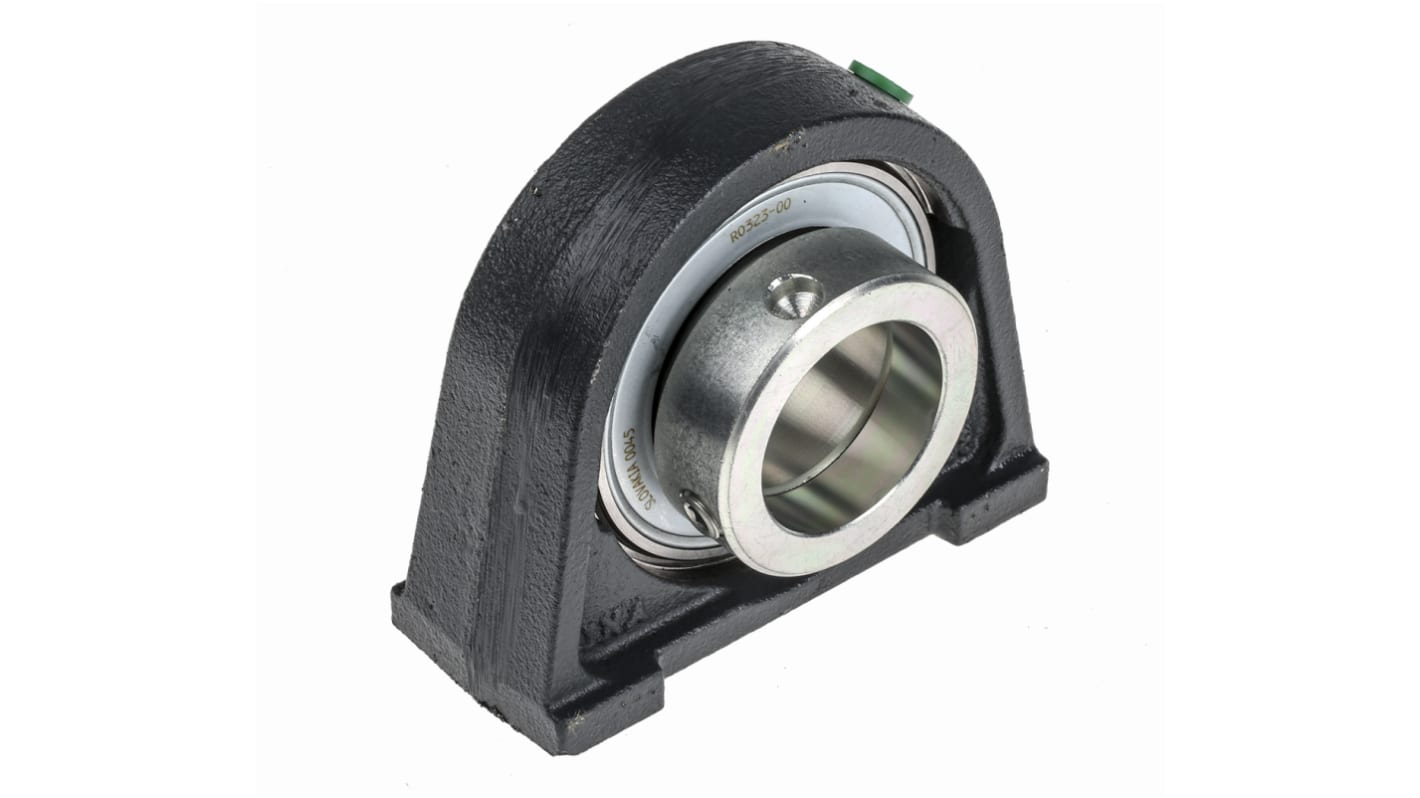

INA PSHE40-XL-N Plummer Block House -, 40 mm ID
- RS Stock No.:
- 174-1379
- Mfr. Part No.:
- PSHE40-XL-N
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£79.55
(exc. VAT)
£95.46
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £79.55 |
| 5 - 9 | £76.36 |
| 10 - 24 | £74.79 |
| 25 + | £73.18 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 174-1379
- Mfr. Part No.:
- PSHE40-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Plummer Block House | |
| Inside Diameter | 40mm | |
| Material | Cast Iron | |
| Centre Height | 49.2mm | |
| Mount Hole Size | M12 | |
| Length | 116mm | |
| Depth | 48mm | |
| Mount Hole Centre-to-Centre | 88.9mm | |
| For Use With | Plummer Block Housing Unit | |
| Standards/Approvals | No | |
| Series | PSHE | |
| Height | 99mm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Plummer Block House | ||
Inside Diameter 40mm | ||
Material Cast Iron | ||
Centre Height 49.2mm | ||
Mount Hole Size M12 | ||
Length 116mm | ||
Depth 48mm | ||
Mount Hole Centre-to-Centre 88.9mm | ||
For Use With Plummer Block Housing Unit | ||
Standards/Approvals No | ||
Series PSHE | ||
Height 99mm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
INA housing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft.
Housing units with cast iron housing
Plummer block housing units
Flanged housing units
Take-up housing units
Housing materials
Bearing end caps
Corrosion-resistant units
Units for high and low temperatures
Housing units with sheet steel housing
Plummer block and flanged housing units with rubber interliner
Corrosion-resistant units
Other products
Suffixes
