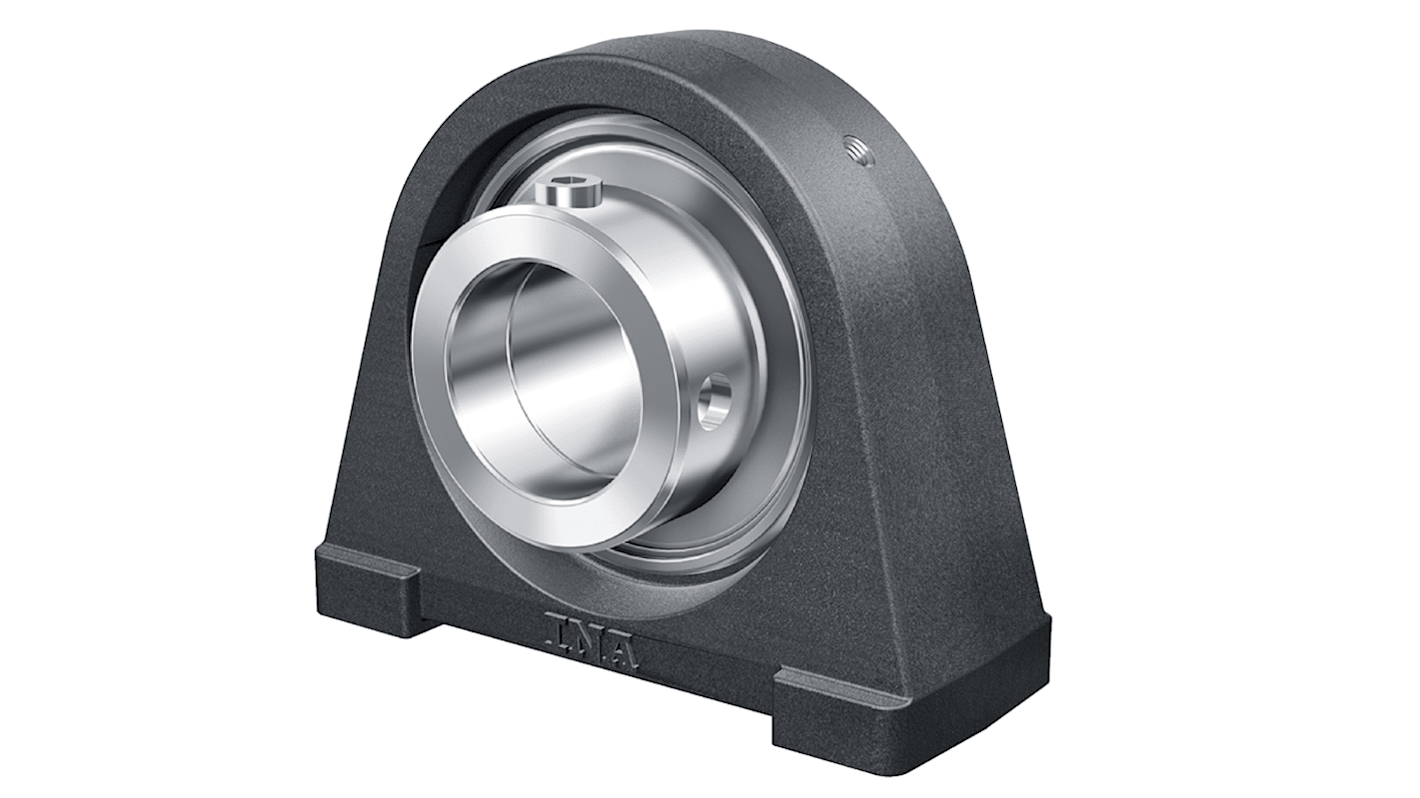

INA RSHEY25-XL-N Plummer Block House -, 25 mm ID
- RS Stock No.:
- 260-0168
- Mfr. Part No.:
- RSHEY25-XL-N
- Brand:
- INA
Subtotal (1 unit)*
£47.52
(exc. VAT)
£57.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.52 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 260-0168
- Mfr. Part No.:
- RSHEY25-XL-N
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Plummer Block House | |
| Inside Diameter | 25mm | |
| Material | Cast Iron | |
| Centre Height | 36.5mm | |
| Mount Hole Size | M10 | |
| Length | 70mm | |
| Mount Hole Centre-to-Centre | 50.8mm | |
| For Use With | Plummer Block Housing Unit | |
| Height | 70mm | |
| Series | RSHEY | |
| Standards/Approvals | No | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Plummer Block House | ||
Inside Diameter 25mm | ||
Material Cast Iron | ||
Centre Height 36.5mm | ||
Mount Hole Size M10 | ||
Length 70mm | ||
Mount Hole Centre-to-Centre 50.8mm | ||
For Use With Plummer Block Housing Unit | ||
Height 70mm | ||
Series RSHEY | ||
Standards/Approvals No | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
RoHS Status: Exempt
The INA Plummer block housing units RSHEY. It is made from cast iron housing. It has radial insert ball bearing with grub screws in inner ring with R seals.
Width (head) 21 mm
Connection thread lubrication M6
Distance of raceway to locking collar 19.8 mm
