SKF SYJ 65 KF Plummer Block House -, 60 mm ID
- RS Stock No.:
- 463-409
- Mfr. Part No.:
- SYJ 65 KF
- Brand:
- SKF
Subtotal (1 unit)*
£225.58
(exc. VAT)
£270.70
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £225.58 |
*price indicative
- RS Stock No.:
- 463-409
- Mfr. Part No.:
- SYJ 65 KF
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Plummer Block House | |
| Inside Diameter | 60mm | |
| Material | Cast Iron | |
| Static Load Rating | 40kN | |
| Centre Height | 76.5mm | |
| Mount Hole Size | 20 mm | |
| Length | 265mm | |
| Dynamic Load Rating | 57.2kN | |
| Depth | 70mm | |
| Bore Type | Tapered | |
| Standards/Approvals | RoHS | |
| Series | SYJ 65 KF | |
| Height | 150.5mm | |
| Limiting Speed | 3000rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Plummer Block House | ||
Inside Diameter 60mm | ||
Material Cast Iron | ||
Static Load Rating 40kN | ||
Centre Height 76.5mm | ||
Mount Hole Size 20 mm | ||
Length 265mm | ||
Dynamic Load Rating 57.2kN | ||
Depth 70mm | ||
Bore Type Tapered | ||
Standards/Approvals RoHS | ||
Series SYJ 65 KF | ||
Height 150.5mm | ||
Limiting Speed 3000rpm | ||

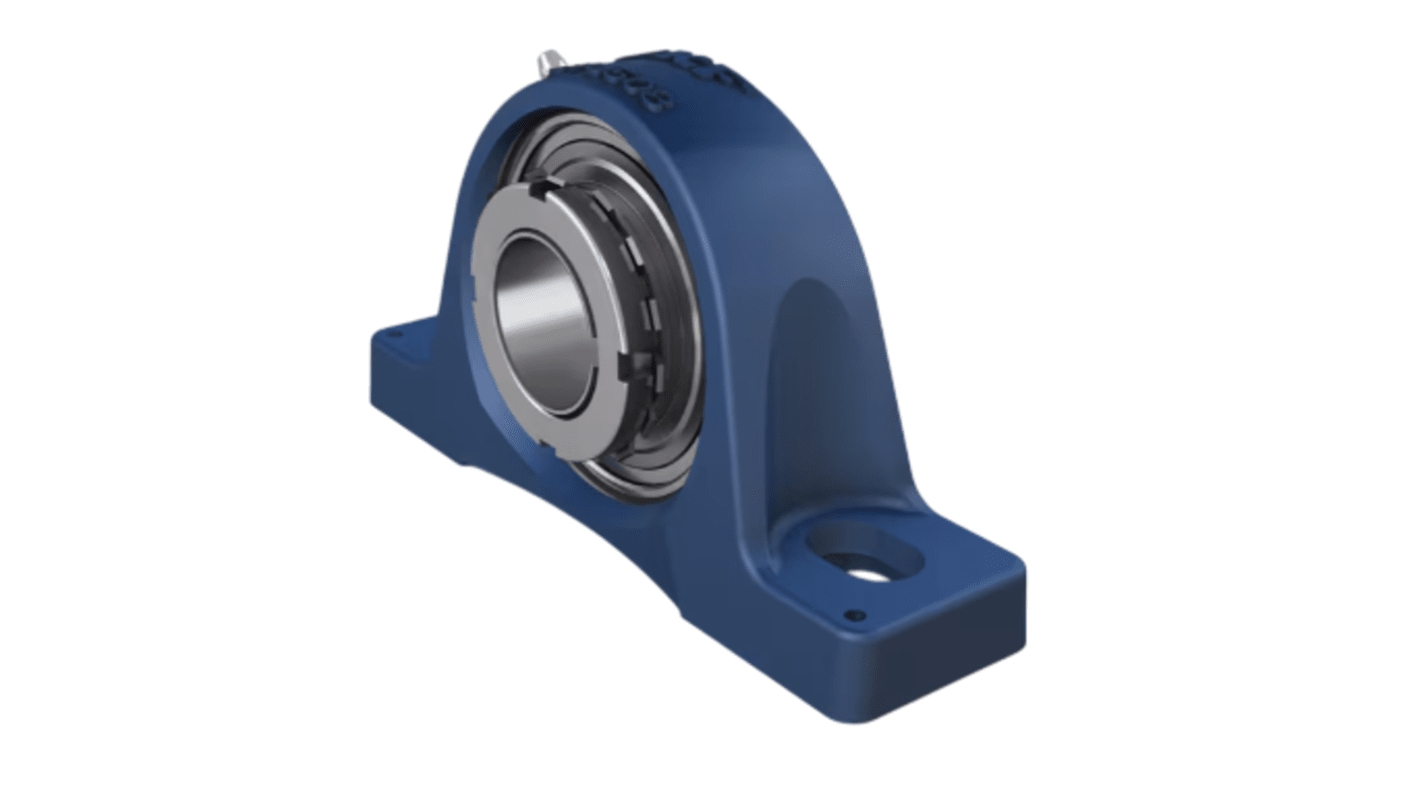

The SKF Pillow block ball bearing units consist of an insert bearing mounted in a cast iron housing that can be bolted to a support surface. It is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft.
Strong
Ready to mount
Designed for a constant and alternating rotation
Lubricated and sealed bearing
Quick locking onto the shaft
Cost effective
