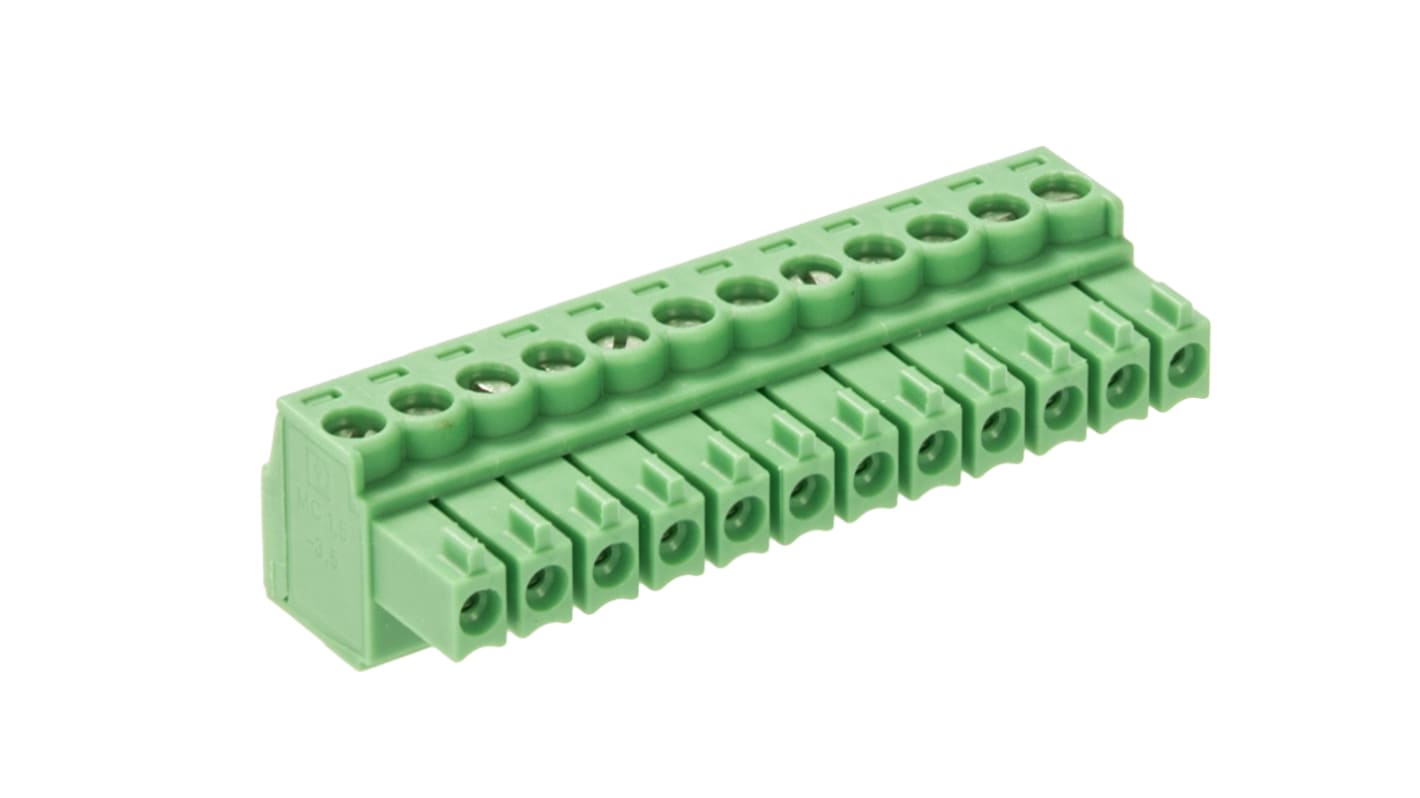

Phoenix Contact, 3.5mm Pitch, 12 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw Termination, 1840463

RS Stock No.:: 804-2131
Distrelec Article No.:: 304-13-589
Mfr. Part No.:: 1840463
Brand:: Phoenix Contact

Phoenix Contact, 3.5mm Pitch, 12 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw Termination, 1840463

Bulk discount available

Subtotal (1 unit)**

£12.62

(exc. VAT)

£15.14

(inc. VAT)

16 In stock - FREE next working day delivery available*

6 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 9	£12.62
10 - 24	£11.36
25 - 49	£10.22
50 - 99	£9.20
100 +	£8.29

**price indicative

RS Stock No.:: 804-2131
Distrelec Article No.:: 304-13-589
Mfr. Part No.:: 1840463
Brand:: Phoenix Contact

Phoenix Contact MINI COMBICON MC 3.5mm Terminal Block Plug Connectors

The 1840379 from Phoenix Contact is a brilliant and well-known PCB terminal block. It comes from Phoenix's brilliant range of 'MINI COMBICON MC' connectors and has a 3.5mm pitch, 0.14 – 1.5mm2 screw connection and horizontal wire entry. This PCB terminal block is massively versatile and allows connection of many products due to is worldwide known connection method and features a minimal temperature rise thank to its maximum contact force.

Features and benefits:

Nominal current of 8A

3.5mm pitch

Screw-in connection method for a tight connection

Low temperature rise

Up-to 1.5 mm2 wire

Accessories:

Mating plugs - 804-2248, 804-2257 and 804-2201.

Screwdriver – 648-5801

Phoenix Contact MC 1.5/12-ST-3.5 Series Pluggable Terminal Block, 3.5mm Pitch, Screw Termination Method - 1840463

This pluggable terminal block is designed for efficient electrical connections in automation and industrial applications. The robust construction and innovative features enhance functionality while ensuring a secure interface. It is particularly suitable for cable mounting situations, facilitating easy terminal access and reducing assembly time to streamline installation processes.

Features & Benefits

• Connects up to 12 conductors simultaneously
• Utilises a standard screw connection method for secure fixing
• Made of durable polyamide for prolonged performance
• Compatible with 3.5mm pitch applications
• Rated for a current capacity of 8A
• Operates effectively at high voltage levels up to 320V

Applications

• Connecting multiple wires in control panels
• Suitable for requiring dependable cable mounting
• Used in industrial machinery for effective wire management
• Ideal for consumer electronics that necessitate efficient connectivity

What type of connection can be used with this product?

A screw connection is utilised for a secure and durable assembly.

Can it handle both rigid and flexible conductors?

Yes, it is compatible with both rigid and flexible conductor types.

Is there a specific thermal range for optimal operation?

The operational temperature varies from -40 to 100°C depending on conditions.

How does the product manage conductor slackening?

It undergoes mechanical tests to ensure performance reliability.

What is the recommended torque for installation?

The suggested tightening torque ranges from 0.22 to 0.25Nm.

Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks

Attribute	Value
Pluggable Terminal Block Type	Plug
Number of Contacts	12
Pitch	3.5mm
Series	MC 1.5/12-ST-3.5
Number of Rows	1
Body Orientation	Straight
Mounting Type	Cable Mount
Termination Method	Screw
Current Rating	8A
Voltage Rating	320 V
Colour	Green
Wire Size	28 → 16 AWG
Contact Material	Copper Alloy
Contact Plating	Tin
Material	Polyamide
