Phoenix Contact MC 1.5/12-ST-3.81 Series Pluggable Terminal Block, 12-Contact, 3.81 mm Pitch, 1 Row, 1803675

RS Stock No.:: 220-4721
Distrelec Article No.:: 304-32-319
Mfr. Part No.:: 1803675
Brand:: Phoenix Contact

Phoenix Contact MC 1.5/12-ST-3.81 Series Pluggable Terminal Block, 12-Contact, 3.81 mm Pitch, 1 Row, 1803675

Bulk discount available

Subtotal (1 pack of 5 units)*

£43.56

(exc. VAT)

£52.27

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship
Plus 15 unit(s) ready to ship from another location
Plus 15 unit(s) shipping from 06 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 120	£8.712	£43.56
125 - 370	£7.84	£39.20
375 - 995	£6.97	£34.85
1000 - 1995	£6.316	£31.58
2000 +	£6.16	£30.80

*price indicative

Phoenix Contact Jumper Bars

Easy to use and made of high quality materials, Phoenix Contact Jumper Bars are a reliable choice for efficient and safe electrical connections.

Buy Phoenix Contact Jumper Bars

RS Stock No.:: 220-4721
Distrelec Article No.:: 304-32-319
Mfr. Part No.:: 1803675
Brand:: Phoenix Contact

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Number of Contacts	12
	Product Type	Pluggable Terminal Block
	Pitch	3.81mm
	Number of Rows	1
	Current	8A
	Housing Material	Polyamide
	Minimum Wire Size mm²	0.14mm²
	Maximum Wire Size mm²	1.5mm²
	Connector Gender	Female
	Minimum Wire Size AWG	28 AWG
	Maximum Wire Size AWG	16 AWG
	Orientation	Horizontal
	Wire Connection Method	Screw
	Colour	Green
	Voltage	160 V
	Series	MC 1.5/12-ST-3.81
	Depth	11.1mm
	Standards/Approvals	No
	Width	46.51 mm
	Length	16.1mm

	Select all
	Brand Phoenix Contact
	Number of Contacts 12
	Product Type Pluggable Terminal Block
	Pitch 3.81mm
	Number of Rows 1
	Current 8A
	Housing Material Polyamide
	Minimum Wire Size mm² 0.14mm²
	Maximum Wire Size mm² 1.5mm²
	Connector Gender Female
	Minimum Wire Size AWG 28 AWG
	Maximum Wire Size AWG 16 AWG
	Orientation Horizontal
	Wire Connection Method Screw
	Colour Green
	Voltage 160 V
	Series MC 1.5/12-ST-3.81
	Depth 11.1mm
	Standards/Approvals No
	Width 46.51 mm
	Length 16.1mm

RoHS Status: Exempt

COO (Country of Origin):: DE

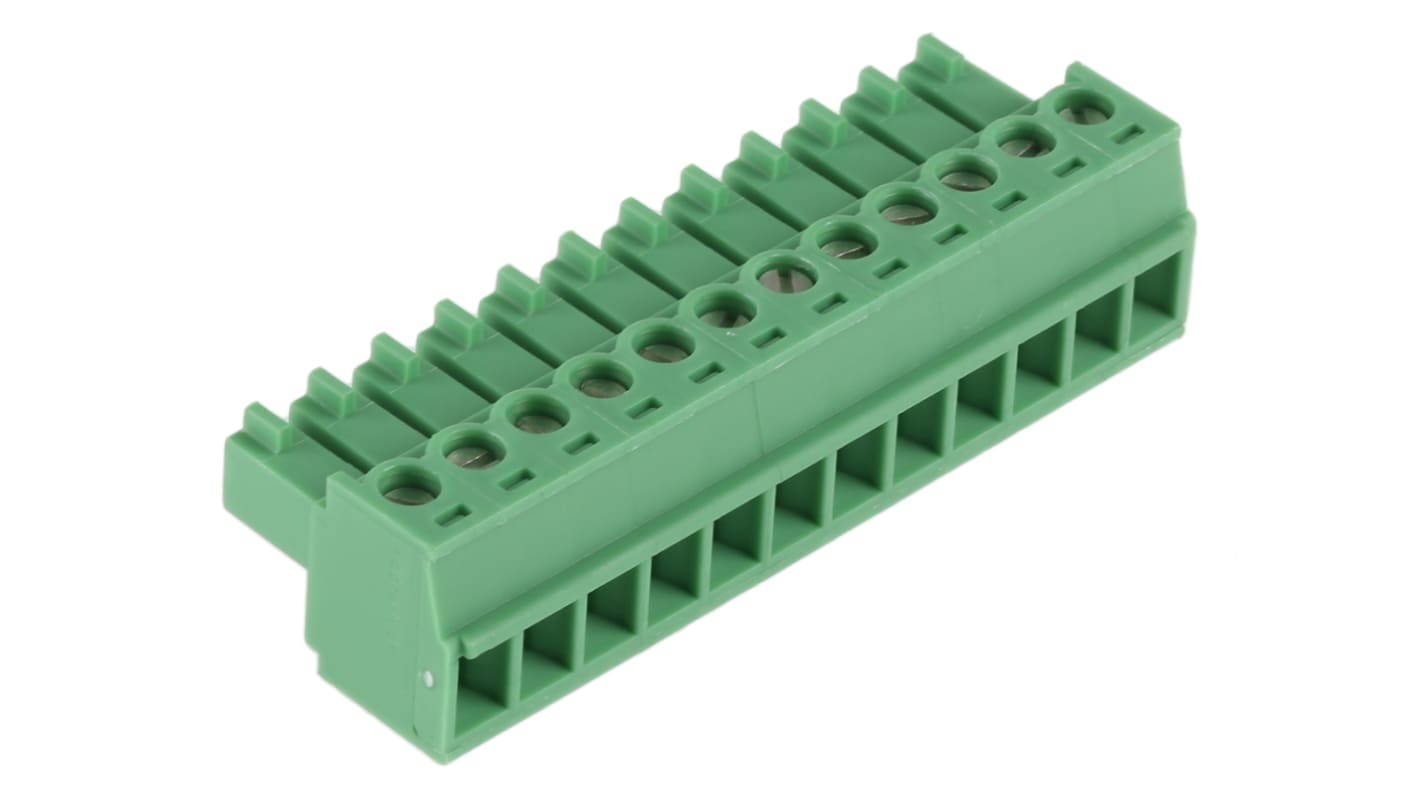

Phoenix Contact Pluggable Terminal Block, 8A Current Rating, Pack of 5 - MC 1,5/12-ST-3,81 - 1803675

Loop speedy connectivity into your PCB setup with this Phoenix Contact pluggable terminal block. It slots into a header (220-4917) and lets you link new devices to a board without the need to reach for special tools. With its tin-plated copper alloy contacts, the connector cuts the risk of corrosion to ensure reliable signalling.

Attaching wire conductors is quick and easy, as the unit has screw terminals. Built-in tension sleeves are on hand to boost resistance against vibrations and the unit's durable PA housing provides effective protection against light impacts.

The block makes up to 12 connections and has a single-row pin layout with a 3.81mm pitch, so it's ideal for simplifying your setup and reducing bulk. It has compact dimensions of 16.1 (L) x 46.51 (W) x 11.1mm (H), so fits neatly into standard-sized enclosures.

Features & Benefits

• Handles electrical surges up to 2.5kV, cutting the risk of hardware damage

• Operates without breaking a sweat in temperatures between -40°C and +100°C

• Adheres to IEC 60512-3-1:2002-02 criteria, indicating effective insulation resistance

Approvals

UL (E60425); CSA (LR13631)
