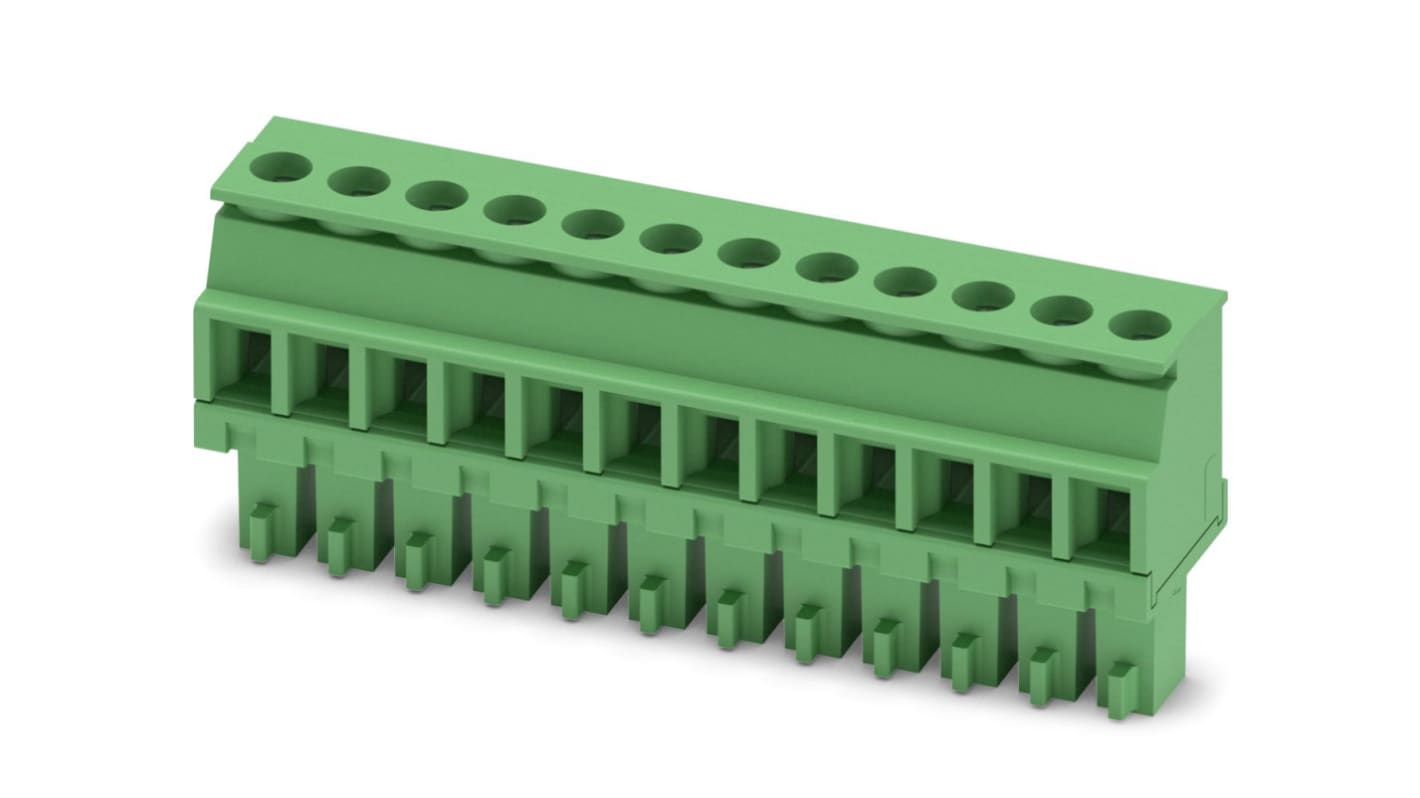

Phoenix Contact, 3.81mm Pitch, MCVR 1.5/12-ST-3.81, 12 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw

Subtotal (1 box of 50 units)*

£460.45

(exc. VAT)

£552.55

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
50 +£9.209£460.45

*price indicative

RS Stock No.:
170-3914
Mfr. Part No.:
1827224
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Pluggable Terminal Block Type

Plug

Number of Contacts

12

Pitch

3.81mm

Series

MCVR 1.5/12-ST-3.81

Number of Rows

1

Body Orientation

Straight

Mounting Type

Cable Mount

Termination Method

Screw

Current Rating

8A

Voltage Rating

320 V

Colour

Green

Material

Polyamide

Phoenix Contact MINI COMBICON MCVR & MCVW 3.81mm Plug-In Terminal Block Connectors


MINI COMBICON MCVR & MCVW 3.81mm pitch cable mount plug-in terminal block connectors with a 0.14 - 1.5mm2 screw connection and 90° plug-in direction.
MCVR series terminal block connectors (part numbers prefixed with 18271, 18272, 18283, 18284) have the conductor entry facing the coding side. Part numbers prefixed with 18283, 18284 also have a screw flange.
MCVW series terminal block connectors (part numbers prefixed 18269, 18270, 18271, 18284, 18285, 18286) have the conductor entry facing the rippled side. Part numbers prefixed with 18284, 18285, 18286 also have a screw flange.
For marker label see stock number 648-5508
For screwdriver see stock number 390-9663

Phoenix Contact Mini 12-pin Plug-In Terminal Block, 3.81 mm Pitch - MCVR 1.5/12-ST-3.81 - 1827224


This Phoenix Contact mini plug-in terminal connector is designed to be used in measurement and control technology applications. Its 12-pin build is compatible with other printed circuit board components from the manufacturer's MCVR range.
The unit's screw-in connections let you safely wire conductors across a range of diameters. It has permanently low contact resistance to reduce fatigue on the wiring. A spring-loaded element prevents conductors from loosening themselves. The miniature size of this component allows you to compactly pack a circuit board, while its low profile helps it stay well-ventilated. This unit is manufactured from robust polyamide for a long service life. Its low operating temperature keeps circuit boards cool.
A connector such as this one stands up to the demands of harsh environments. It carries Underwriter Laboratories (UL) approval and has a UL 94-V0 rating, which means it's flame retardant and poses no risk of fire.

• Straight body orientation
• Current rating of 8 A
• Voltage rating of 320 V
• Female plug type
• Cable mounting type
• 12 contacts
• 1 row
• Pitch of 3.81 mm
• Dimensions of 46.51 (L) x 10.4 (W) x 19.1 mm (D)
