Deca MC Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, MC101-50803
- RS Stock No.:
- 285-8410
- Distrelec Article No.:
- 148-70-546
- Mfr. Part No.:
- MC101-50803
- Brand:
- Deca
Subtotal (1 unit)*
£1.80
(exc. VAT)
£2.16
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 158 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.80 |
*price indicative
- RS Stock No.:
- 285-8410
- Distrelec Article No.:
- 148-70-546
- Mfr. Part No.:
- MC101-50803
- Brand:
- Deca
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deca | |
| Number of Contacts | 3 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 300V | |
| Width | 10.16mm | |
| Series | MC | |
| Standards/Approvals | VDE | |
| Select all | ||
|---|---|---|
Brand Deca | ||
Number of Contacts 3 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 300V | ||
Width 10.16mm | ||
Series MC | ||
Standards/Approvals VDE | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TW

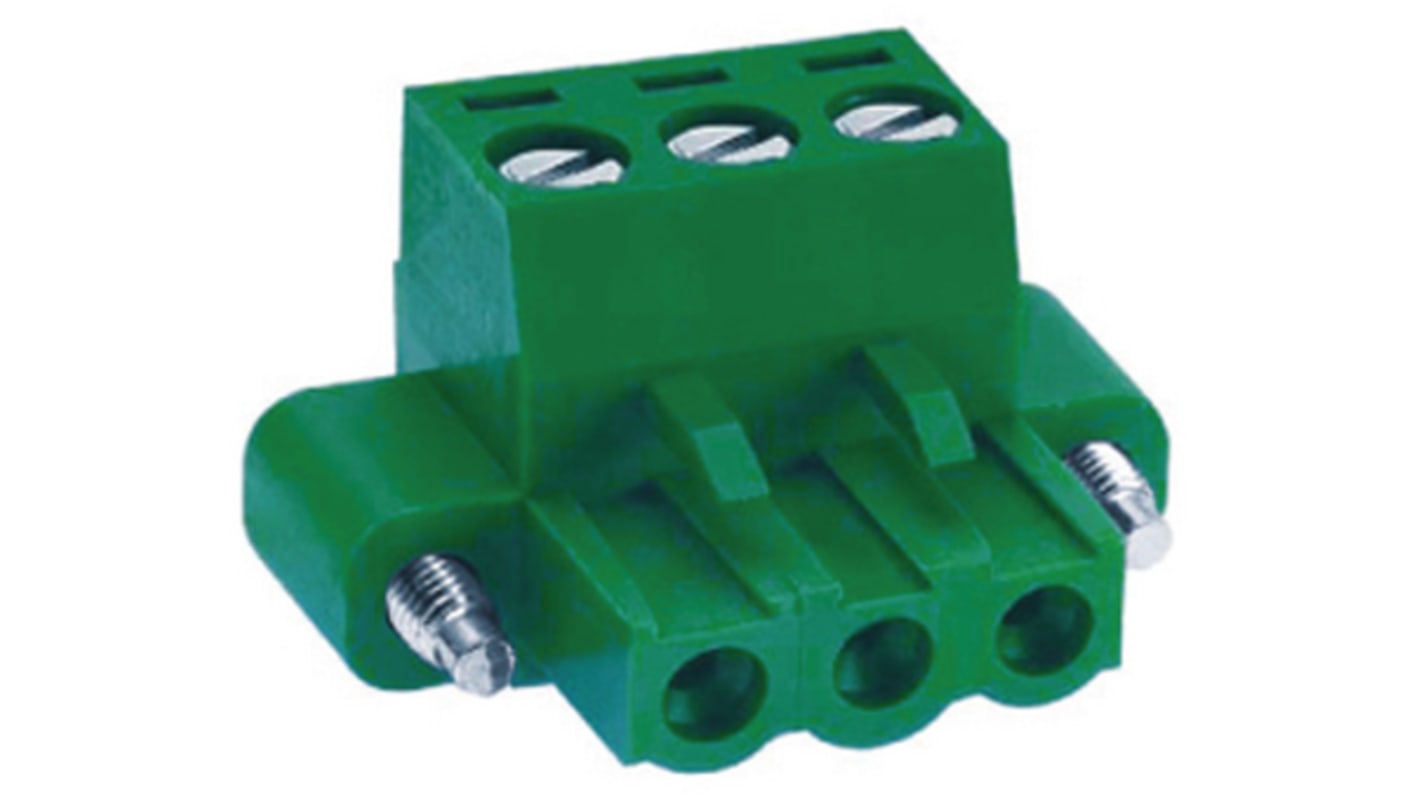

The Female header Pitch 5.08mm 3P
female connector is straight with a 5.08mm pitch and has 3 poles.
