MPN

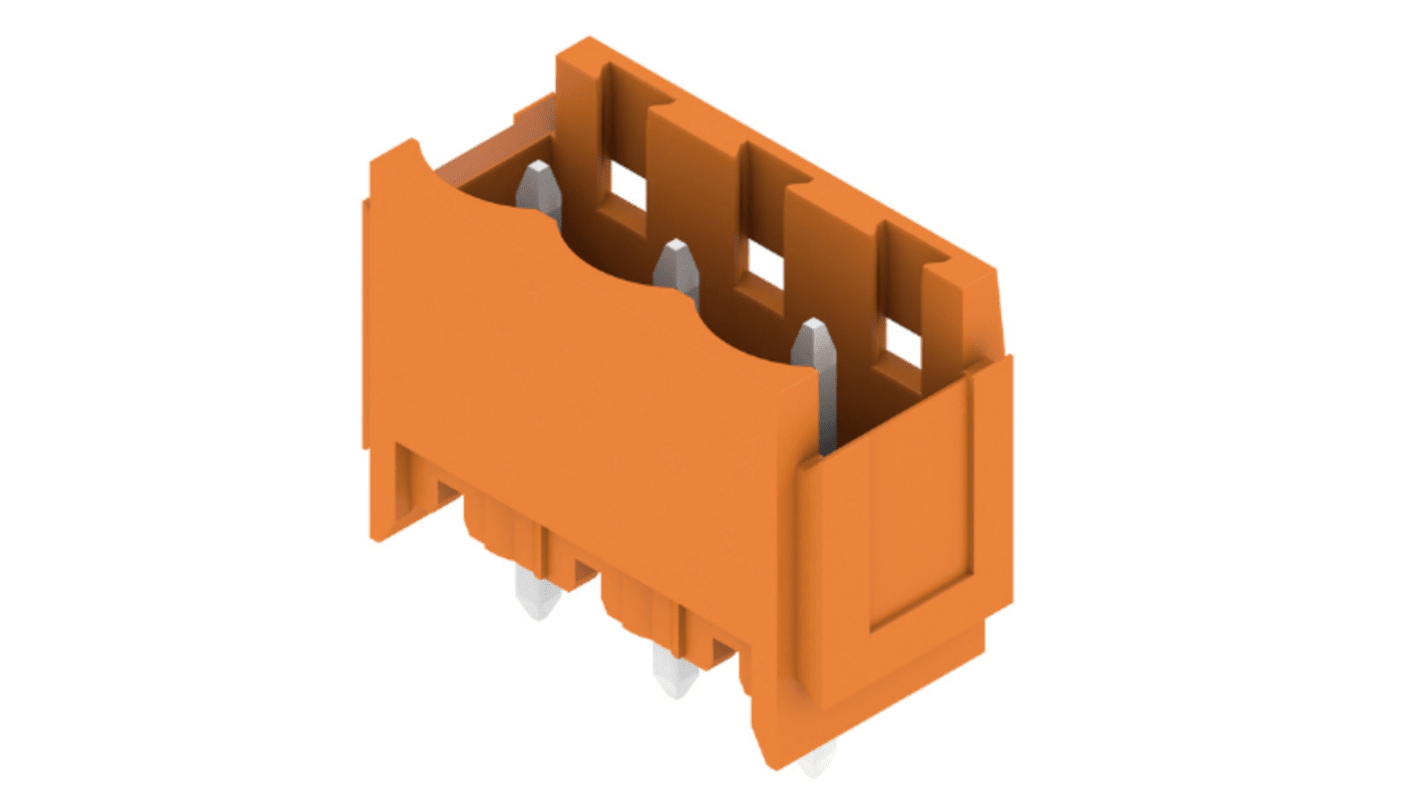

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 3 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

RS Stock No.:: 733-0557
Mfr. Part No.:: 1147330000
Brand:: Weidmüller

Weidmuller, 5.08mm Pitch, OMNIMATE SL, 3 Way, , Pluggable Terminal Block, Header, Through Hole, Solder Termination,

Save 45% when you buy 2000 units

Subtotal (1 pack of 5 units)*

£2.96

(exc. VAT)

£3.55

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 600 unit(s) shipping from 30 September 2025
Plus 445 unit(s) shipping from 30 September 2025
Plus 2,100 unit(s) shipping from 14 October 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 120	£0.592	£2.96
125 - 370	£0.35	£1.75
375 - 995	£0.34	£1.70
1000 - 1995	£0.332	£1.66
2000 +	£0.324	£1.62

*price indicative

RS Stock No.:: 733-0557
Mfr. Part No.:: 1147330000
Brand:: Weidmüller

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Weidmüller
	Pluggable Terminal Block Type	Header
	Number of Contacts	3
	Pitch	5.08mm
	Series	OMNIMATE SL
	Number of Rows	1
	Body Orientation	Straight
	Mounting Type	Through Hole
	Termination Method	Solder
	Current Rating	18.0A
	Voltage Rating	400.0 V
	Colour	Orange
	Contact Material	Copper Alloy

	Select all
	Brand Weidmüller
	Pluggable Terminal Block Type Header
	Number of Contacts 3
	Pitch 5.08mm
	Series OMNIMATE SL
	Number of Rows 1
	Body Orientation Straight
	Mounting Type Through Hole
	Termination Method Solder
	Current Rating 18.0A
	Voltage Rating 400.0 V
	Colour Orange
	Contact Material Copper Alloy

Weidmuller OMNIMATE SL Series Pluggable Terminal Block, 18A Current Rating, 400V Voltage Rating - 1147330000

This pluggable terminal block is designed for dependable connections, featuring a straight body orientation suitable for through hole mounting. The block supports three contacts with a pitch of 5.08mm, facilitating effective wiring and assembly across a range of projects.

Features & Benefits

• 3 contact terminal block for flexible connectivity
• Through hole mounting ensures stable installation
• Solder termination method provides strong connections
• 18A rating handles substantial current loads
• Copper alloy construction for durability and conductivity
• Bright orange colour for easy identification

Applications

• Utilised in automation control panels
• Appropriate for industrial machinery connections
• Applicable in electrical distribution systems
• Ideal for wiring in off-the-shelf devices

Can this terminal block be used in high voltage applications?

Yes, its voltage rating is 400V.

Is there a specific way to mount this terminal block?

It is designed for through hole installation for enhanced stability.

Can it handle high current loads efficiently?

It is rated for a maximum current of 18A.

Will it remain effective under continuous use?

The use of copper alloy ensures long-lasting performance.

Is it suitable for varying environmental conditions?

The robust design enables function across diverse operating conditions.

5.08mm Pitch -Weidmüller Omnimate Range

Weidmüller's Omnimate Range of 5.08mm pitch Two Part connectors allows wire-to-board connections through terminals using Leaf Spring and Spring Rising Clamp screw technology, or Tension Clamp and Push In screwless technology. The Weidmuller 8 Way Clamp Rising Terminal is suitable for a wide range of PCB design and connector uses.

• The PCB hole has a diameter of 1.3mm
• Screw clamp types accept wire up to 1.5mm²
• Tension clamp and IDC (screwless) options enable fast assembly times
• Moulded male headers in straight (open or closed end) 90° PCB pins or 135° headers
• Polarising pins prevent mismatch connections.
