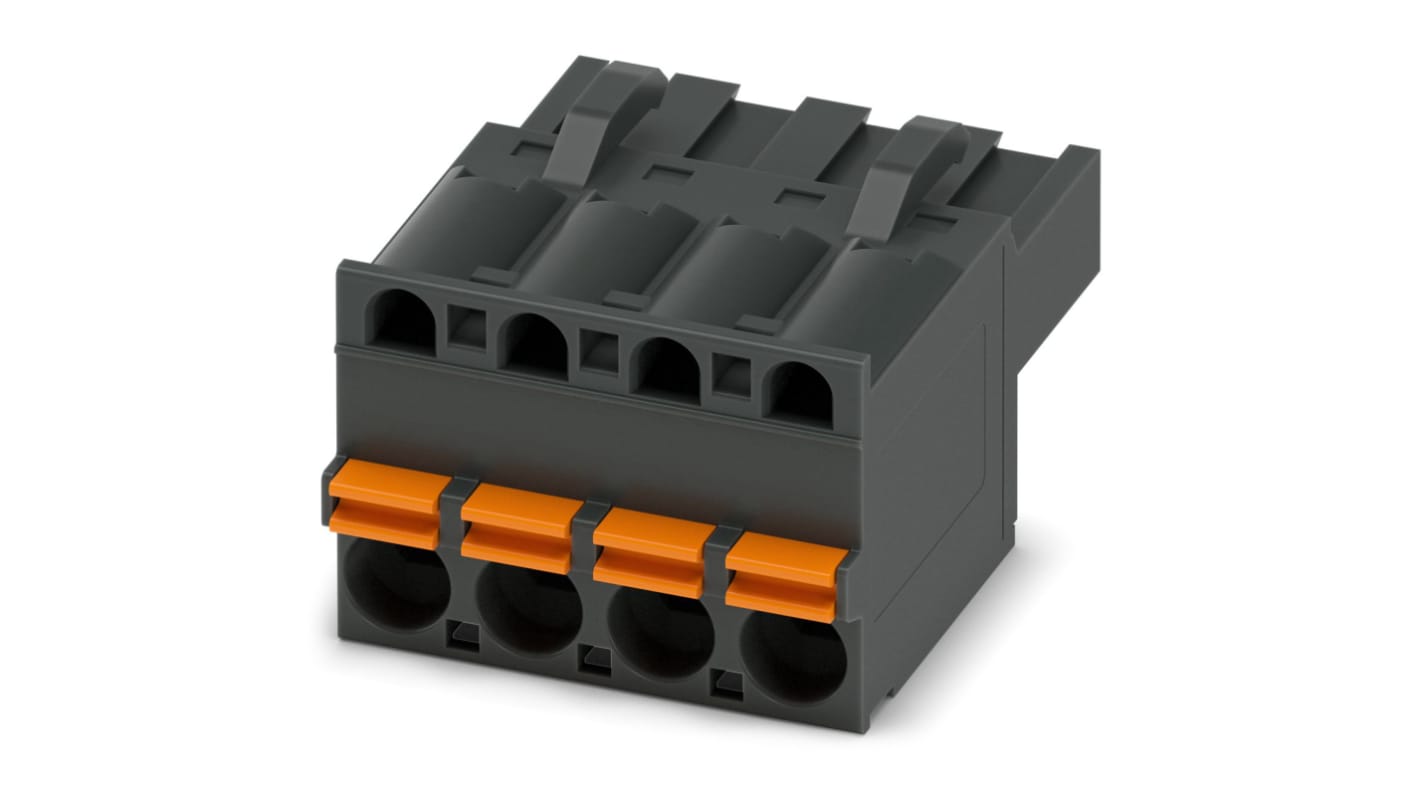

Phoenix Contact 5/4-ST BK, FKCT 2 Series Pluggable Terminal Block, 4-Contact, 5 mm Pitch, Surface, 1 Row
- RS Stock No.:
- 241-5988
- Mfr. Part No.:
- 1965830
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£232.30
(exc. VAT)
£278.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £2.323 | £232.30 |
*price indicative
- RS Stock No.:
- 241-5988
- Mfr. Part No.:
- 1965830
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 4 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5mm | |
| Number of Rows | 1 | |
| Current | 12A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Liquid Crystal Polymer | |
| Mount Type | Surface | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24 AWG | |
| Maximum Wire Size AWG | 12 AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 320 V | |
| Standards/Approvals | IEC | |
| Width | 20.1 mm | |
| Depth | 15mm | |
| Length | 25.6mm | |
| Series | 5/4-ST BK, FKCT 2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 4 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Current 12A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Liquid Crystal Polymer | ||
Mount Type Surface | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24 AWG | ||
Maximum Wire Size AWG 12 AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 320 V | ||
Standards/Approvals IEC | ||
Width 20.1 mm | ||
Depth 15mm | ||
Length 25.6mm | ||
Series 5/4-ST BK, FKCT 2 | ||
- COO (Country of Origin):
- DE
The Phoenix Contact's PCB connector has nominal cross section of 2.5 mm² and nominal current of 12 A. Female connector with for positions and single row.
Pitch 5 mm
Number of positions 4Length [ l ] 25.6 mm
Width 20.1 mm
Height 15 mm
Pitch 5 mm
