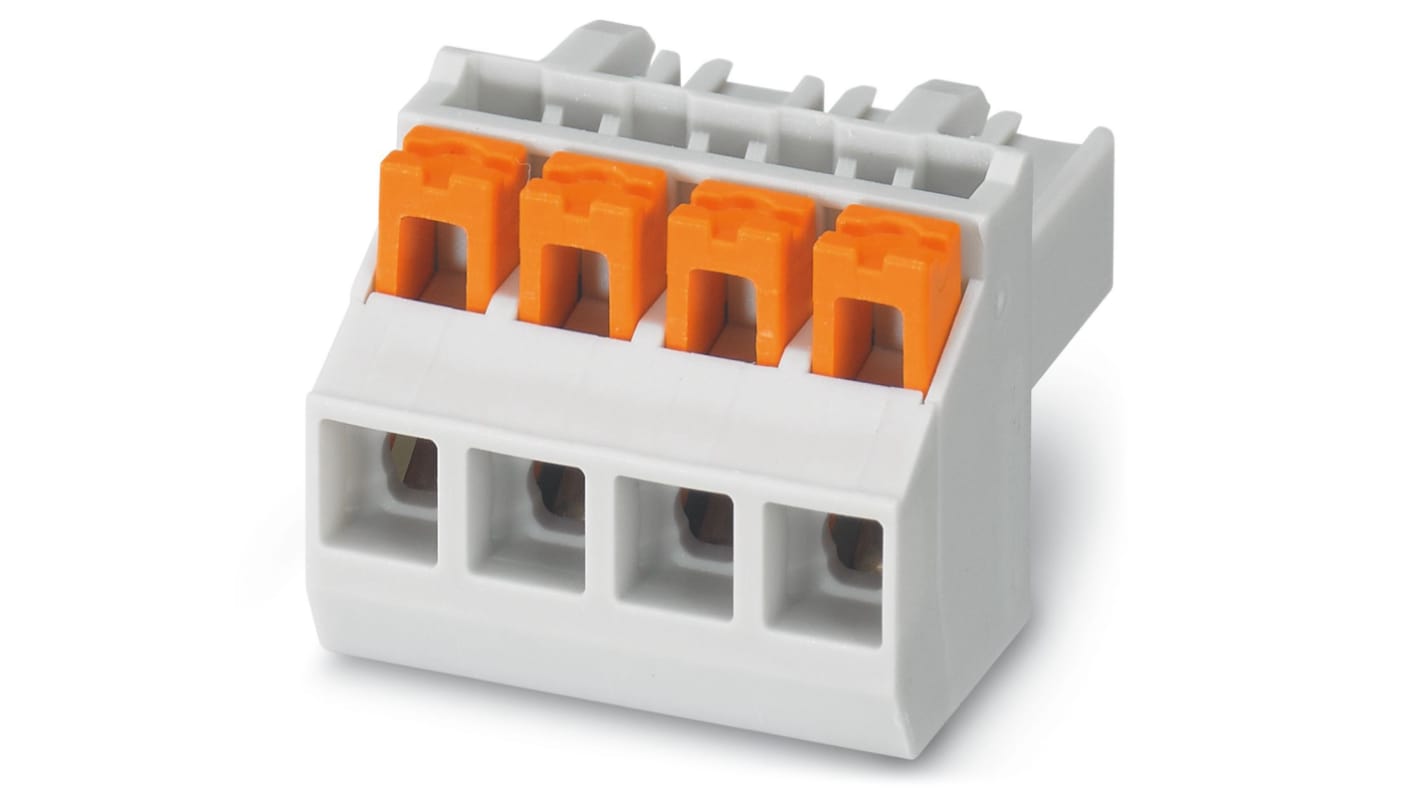

Phoenix Contact 5/4-ST KMGY, PSPT 2 Series PCB Connector, 4-Contact, 5 mm Pitch, Surface, 1 Row
- RS Stock No.:
- 241-5991
- Mfr. Part No.:
- 2202344
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£205.55
(exc. VAT)
£246.65
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 100 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 + | £4.111 | £205.55 |
*price indicative
- RS Stock No.:
- 241-5991
- Mfr. Part No.:
- 2202344
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Connector | |
| Number of Contacts | 4 | |
| Pitch | 5mm | |
| Current | 16A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.75mm² | |
| Mount Type | Surface | |
| Housing Material | Liquid Crystal Polymer | |
| Maximum Wire Size mm² | 16mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 6AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw | |
| Colour | Light Grey | |
| Voltage | 300V | |
| Depth | 15mm | |
| Length | 21.3mm | |
| Standards/Approvals | IEC | |
| Width | 19.95mm | |
| Series | 5/4-ST KMGY, PSPT 2 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Connector | ||
Number of Contacts 4 | ||
Pitch 5mm | ||
Current 16A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.75mm² | ||
Mount Type Surface | ||
Housing Material Liquid Crystal Polymer | ||
Maximum Wire Size mm² 16mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 6AWG | ||
Orientation Straight | ||
Wire Connection Method Screw | ||
Colour Light Grey | ||
Voltage 300V | ||
Depth 15mm | ||
Length 21.3mm | ||
Standards/Approvals IEC | ||
Width 19.95mm | ||
Series 5/4-ST KMGY, PSPT 2 | ||
- COO (Country of Origin):
- CN
The Phoenix Contact's PCB connector has nominal cross section of 2.5 mm². It has nominal current 16 A and rated voltage (III/2) 300 V.
Push-in technology for quick and easy wiring
Variable coding, for reliable protection against incorrect connection
Quick and easily coded when initially connecting the connector and header
Intuitive use through colour coded actuation lever
Time saving pus
