Weidmüller BU/SU 10.16HP Series PCB Connector, 5-Contact, 10.16 mm Pitch, 1-Row

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 36 units)*

£245.88

(exc. VAT)

£295.20

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
36 - 72£6.83£245.88
108 - 144£6.42£231.12
180 +£5.942£213.91

*price indicative

RS Stock No.:
214-4544
Mfr. Part No.:
1813360000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Product Type

PCB Connector

Number of Contacts

5

Pitch

10.16mm

Current

60A

Number of Rows

1

Housing Material

Fibreglass Reinforced Polybutylene Terephthalate

Connector Gender

Male

Orientation

90°

Wire Connection Method

Solder

Colour

Black

Voltage

1 kV

Depth

32mm

Standards/Approvals

IEC 61984, RoHS, UL 1059, IEC 60664-1

Width

13.16 mm

Length

50.8mm

Series

BU/SU 10.16HP

COO (Country of Origin):
CZ

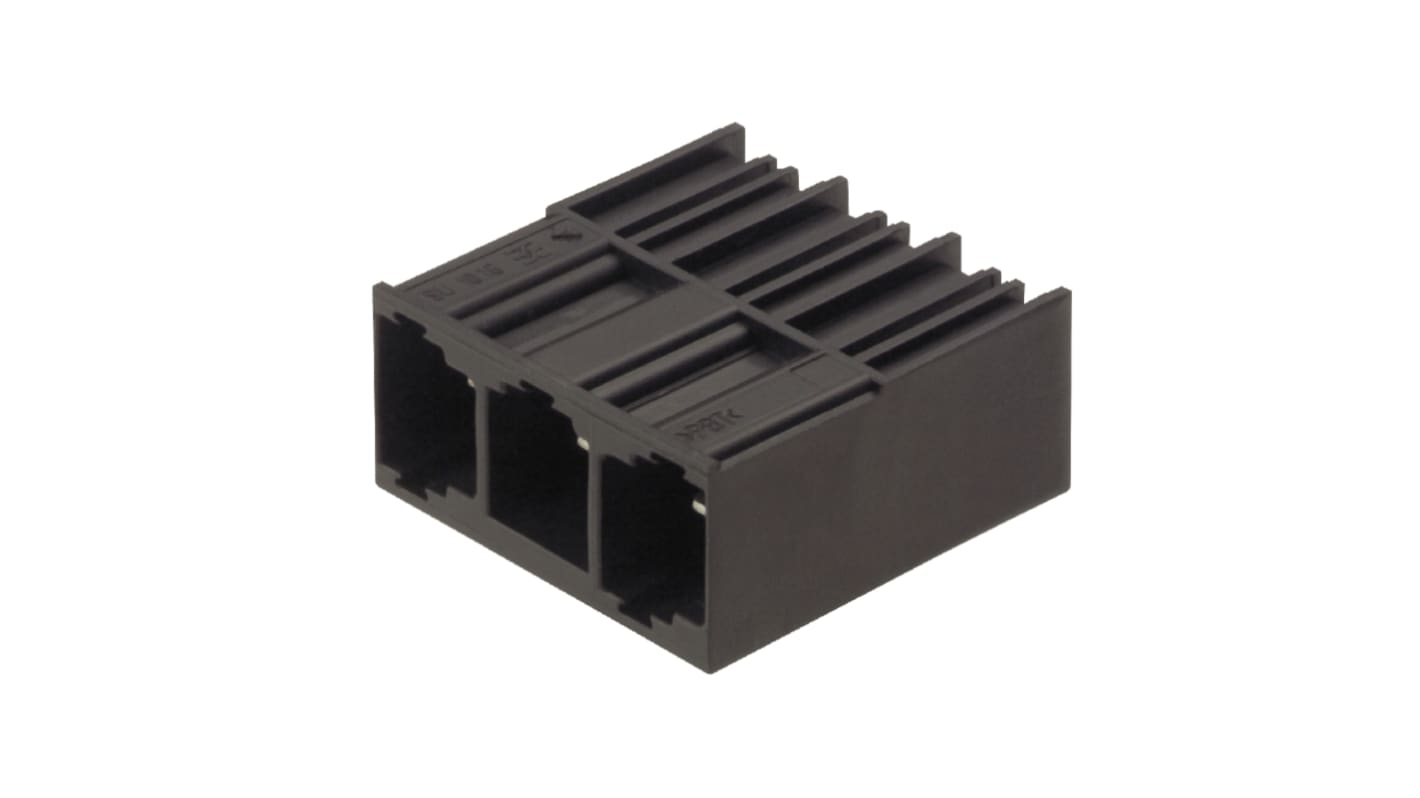

The Weidmuller PCB Connector has Single-row, high-current male header, for side-beside mounting without sacrificing any poles, or with patented flange for fast locking without tools. Maximum connection and operating reliability thanks to a mating profile that prevents incorrect connection, with unique coding diversity and additional fastening in the flange. 3.5mm pin length is optimised for wave soldering, plug-in direction 90° to solder pins.

Mounting onto the PCB THT solder connection

Pitch in mm (P) 10.16 mm

Outgoing elbow 90°

Number of poles 2

Number of solder pins per pole 3
