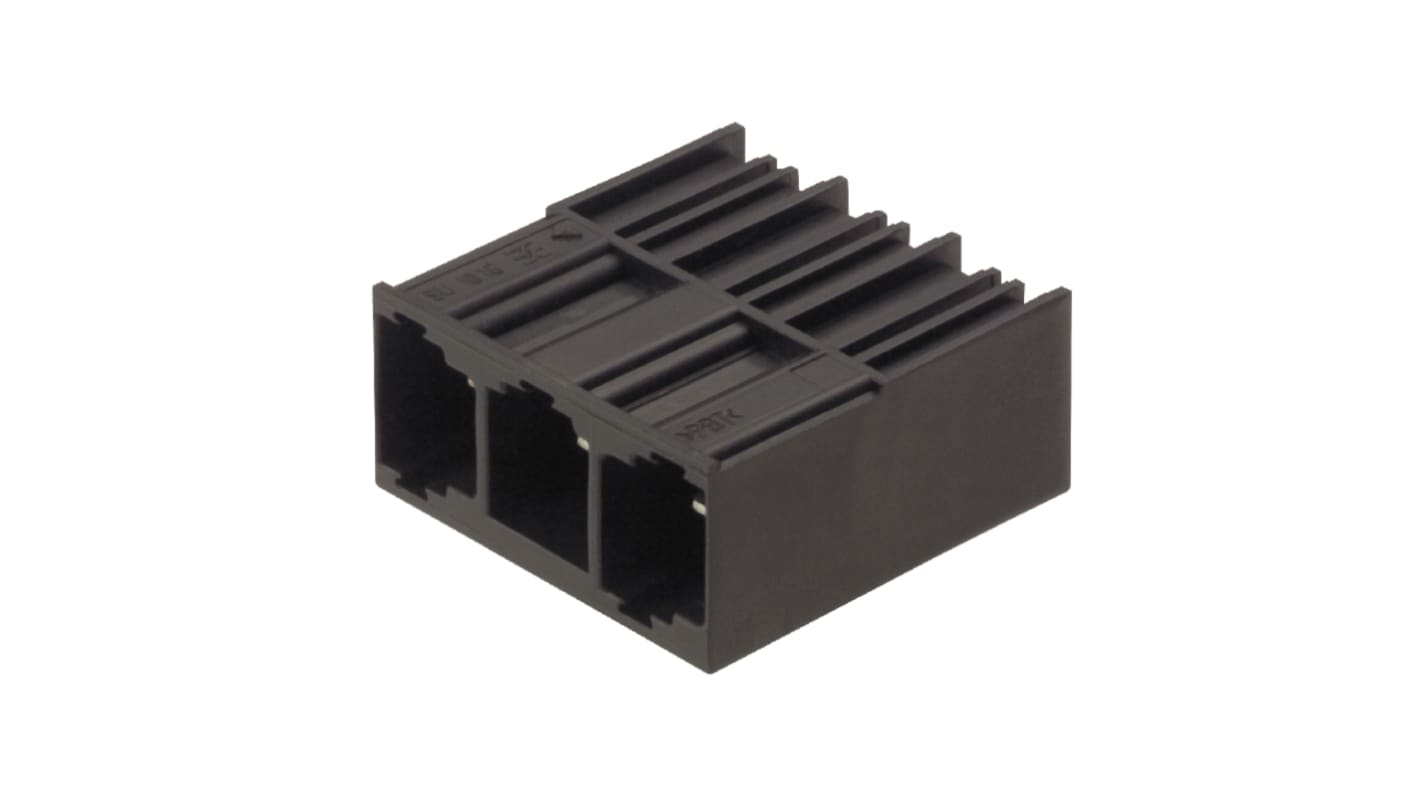

Weidmüller BU/SU 10.16HP Series PCB Connector, 3-Contact, 10.16 mm Pitch, 1-Row

View all Pluggable Terminal Blocks
Bulk discount available

Subtotal (1 box of 60 units)*

£245.88

(exc. VAT)

£295.08

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
60 - 120£4.098£245.88
180 - 240£3.852£231.12
300 +£3.566£213.96

*price indicative

RS Stock No.:
214-4557
Mfr. Part No.:
1813420000
Brand:
Weidmüller
Find similar products by selecting one or more attributes.
Select all

Brand

Weidmüller

Number of Contacts

3

Product Type

PCB Connector

Pitch

10.16mm

Number of Rows

1

Current

60A

Housing Material

Fibreglass Reinforced Polybutylene Terephthalate

Connector Gender

Male

Orientation

90°

Wire Connection Method

Solder

Colour

Black

Voltage

1 kV

Width

13.6 mm

Series

BU/SU 10.16HP

Depth

32mm

Standards/Approvals

IEC 60664-1, IEC 61984, UL 1059, RoHS

Length

30.48mm

COO (Country of Origin):
CZ
The Weidmuller PCB Connector has Single-row, high-current male header, for side-beside mounting without sacrificing any poles, or with patented flange for fast locking without tools. Maximum connection and operating reliability thanks to a mating profile that prevents incorrect connection, with unique coding diversity and additional fastening in the flange. 3.5mm pin length is optimised for wave soldering, plug-in direction 90° to solder pins.

Mounting onto the PCB THT solder connection

Pitch in mm (P) 10.16 mm

Outgoing elbow 90°

Number of poles 2

Number of solder pins per pole 3
